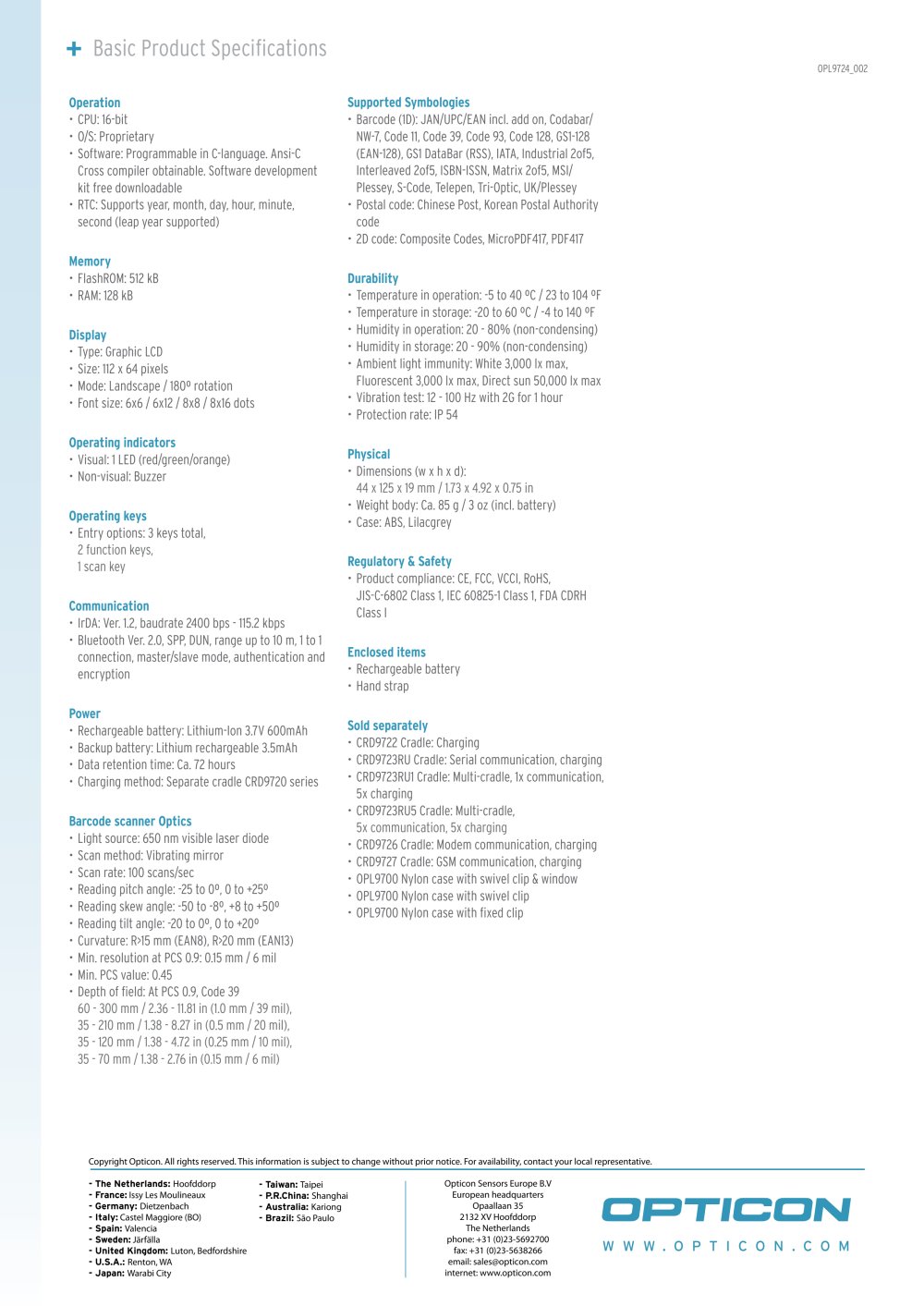

+ Basic Product Specifications

OPL9724_001

Operation

• CPU: 16-bit

• O/S: Proprietary

• Software: Programmable in C-language. Ansi-C Cross compiler obtainable. Software development kit free downloadable

• RTC: Supports year, month, day, hour, minute, second (leap year supported)

Memory

• FlashROM: 512 kB

• RAM: 128 kB

Display

• Type: Graphic LCD

• Size: 112 x 64 pixels

• Mode: Landscape / 180° rotation

• Font size: 6x6 / 6x12 / 8x8 / 8x16 dots

Operating indicators

• Visual: 1 LED (red/green/orange)

• Non-visual: Buzzer

Operating keys

• Entry options: 3 keys total, 2 function keys,

1 scan key

Communication

• IrDA: Ver. 1.2, baudrate 2400 bps - 115.2 kbps

• Bluetooth Ver. 2.0, SPP, DUN, range up to 10 m, 1 to 1 connection, master/slave mode, authentication and encryption

Power

• Rechargeable battery: Lithium-Ion 3.7 V nom. 600 mAh

• Backup battery: Lithium rechargeable 3.5 mAh

• Data retention time: Ca. 72 hours

• Charging method: Separate cradle CRD9720 series

Barcode scanner Optics

• Light source: 650 nm visible laser diode

• Scan method: Vibrating mirror

• Scan rate: 100 scans/sec

• Reading pitch angle: -25 to 0°, 0 to +25°

• Reading skew angle: -50 to -8°, +8 to +50°

• Reading tilt angle: -20 to 0°, 0 to +20°

• Curvature: R>15 mm (EAN8), R>20 mm (EAN13)

• Min. resolution at PCS 0.9: 0.15 mm / 6 mil

• Min. PCS value: 0.45

• Depth of field: At PCS 0.9, Code 39

60 - 300 mm / 2.36 - 11.81 in (res. 1.0 mm / 39 mil), 35 - 210 mm / 1.38 - 8.27 in (res. 0.5 mm / 20 mil), 35 - 120 mm / 1.38 - 4.72 in (res. 0.25 mm / 10 mil), 35 - 70 mm / 1.38 - 2.76 in (res. 0.15 mm / 6 mil)

Supported Symbologies

• Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey

• Postal code: Chinese Post, Korean Postal Authority code

• 2D code: Composite Codes, MicroPDF417, PDF417 Durability

• Temperature in operation: -5 to 40 °C / 23 to 104 °F

• Temperature in storage: -20 to 60 °C / -4 to 140 °F

• Humidity in operation: 20 - 80 % (non-condensing)

• Humidity in storage: 20 - 90 % (non-condensing)

• Ambient light immunity: White 3,000 lx max, Fluorescent 3,000 lx max, Direct sun 50,000 lx max

• Vibration test: 12 - 100 Hz with 2G for 1 hour

• Protection rate: IP 54

Physical

• Dimensions (w x h x d):

44 x 125 x 19 mm / 1.73 x 4.92 x 0.75 in

• Weight body: Ca. 85 g / 3 oz (incl. battery)

• Case: ABS, Lilacgrey

Regulatory & Safety

• Product compliance: CE, FCC, VCCI, RoHS, JIS-C-6802 Class 1, IEC 60825-1 Class 1, FDA CDRH

Class I

Enclosed items

• Rechargeable battery

• Hand strap

Sold separately

• CRD9722 Single charging cradle

• CRD9723RU Single serial communication cradle

• CRD9723RU1 Multi-cradle, 1x communication, 5x charging

• CRD9723RU5 Multi-cradle, 5x communication, 5x charging

• CRD9726 Modem cradle

• CRD9727 GSM cradle

• DCL1500 Nylon case with swivel clip + window

• DCL1500 Nylon case with swivel clip

• DCL1500 Nylon case with fixed clip
