| SMARTSCOPEQUE5J 250 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Standard ■ Optional | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

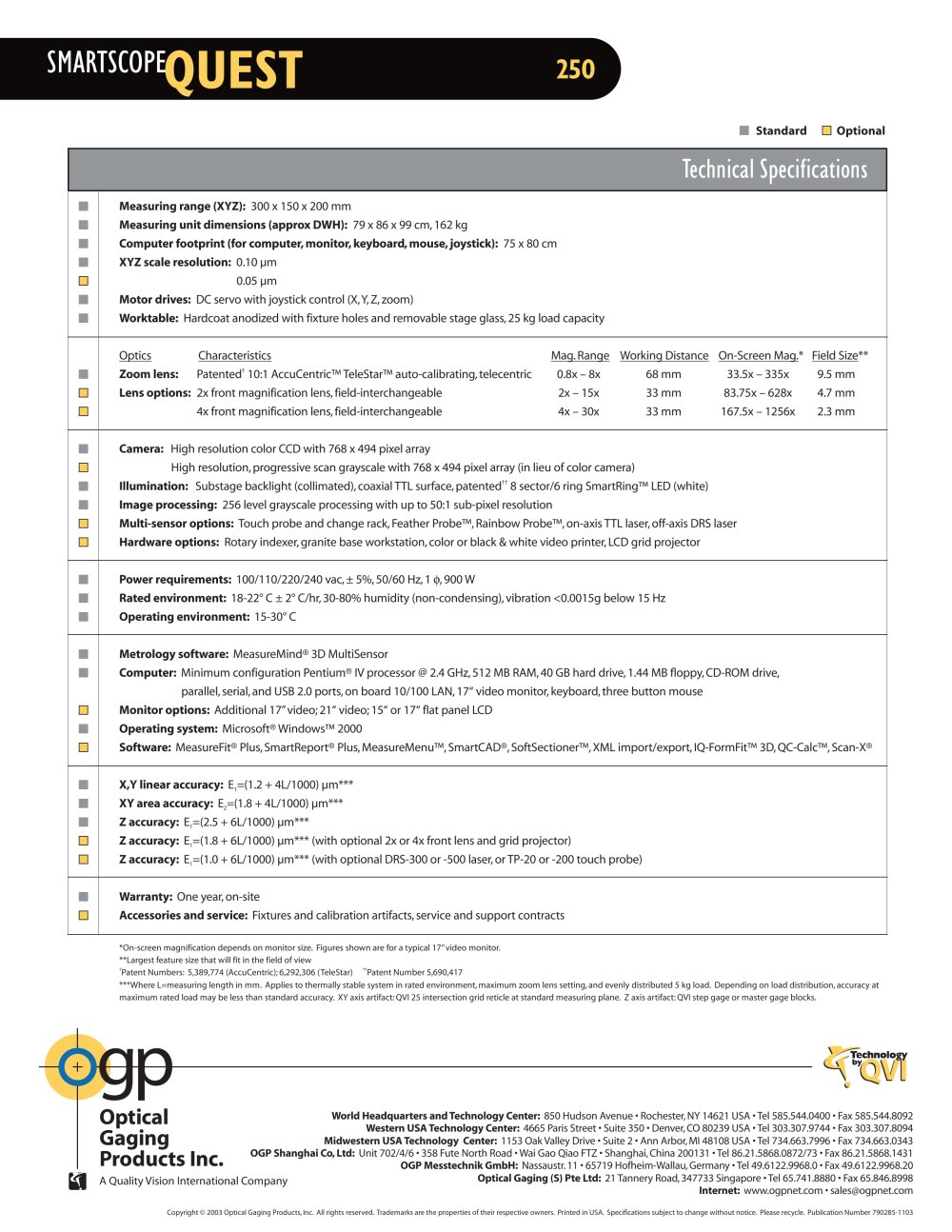

| Technical Specifications Measuring range (XYZ): 300 x 150 x 200 mm Measuring unit dimensions (approx DWH): 79 x 86 x 99 cm, 162 kg Computer footprint (for computer, monitor, keyboard, mouse, joystick): 75 x 80 cm XYZ scale resolution: 0.10 um 0.05 |jm Motor drives: DC servo with joystick control (X,Y,Z,zoom) Worktable: Hardcoat anodized with fixture holes and removable stage glass, 25 kg load capacity | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Camera: High resolution color CCD with 768 x 494 pixel array High resolution, progressive scan grayscale with 768 x 494 pixel array (in lieu of color camera) Illumination: Substage backlight (collimated), coaxial TTL surface, patented* 8 sector/6 ring SmartRing™ LED (white) Image processing: 256 level grayscale processing with up to 50:1 sub-pixel resolution Multi-sensor options: Touch probe and change rack, Feather Probe™, Rainbow Probe™, on-axis TTL laser, off-axis DRS laser Hardware options: Rotary indexer, granite base workstation, color or black & white video printer, LCD grid projector | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power requirements: 100/110/220/240 vac, ± 5%, 50/60 Hz, 1 >>, 900 W Rated environment: 18-22°C±2°C/hr, 30-80% humidity (non-condensing), vibration <0.0015g below 15 Hz Operating environment: 15-30° C | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Metrology software: MeasureMind® 3D MultiSensor Computer: Minimum configuration Pentium® IV processor @ 2.4 GHz, 512 MB RAM,40 GB hard drive, 1.44 MB floppy,CD-ROM drive, parallel, serial, and USB 2.0 ports, on board 10/100 LAN, 17" video monitor, keyboard, three button mouse Monitor options: Additional 17" video; 21" video; 15" or 17" flat panel LCD Operating system: Microsoft® Windows™ 2000 Software: MeasureFit® Plus,SmartReport® Plus, MeasureMenu™,SmartCAD®, SoftSectioner™,XML import/export, IQ-FormFit™ 3D,QC-Calc™, Scan-X® | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| X,Y linear accuracy: E,=(1.2 +4L/1000) urn*** XY area accuracy: E2=(1.8 + 4L/1000) um*** Z accuracy: E1=(2.5 + 6L/1000) um*** Z accuracy: E1=(1.8 + 6L/1000) um*** (with optional 2x or 4x front lens and grid projector) Z accuracy: E1=(1.0 + 6L/1000) um*** (with optional DRS-300 or -500 laser, or TP-20 or-200 touch probe) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Warranty: One year, on-site Accessories and service: Fixtures and calibration artifacts, service and support contracts | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| *On-screen magnification depends on monitor size. Figures shown are for a typical 17" video monitor. **Largest feature size that will fit in the field of view 'Patent Numbers: 5,389,774 (AccuCentric); 6,292,306 (TeleStar) "Patent Number 5,690,417 ***Where L=measuring length in mm. Applies to thermally stable system in rated environment, maximum zoom lens setting, and evenly distributed 5 kg load. Depending on load distribution, accuracy at maximum rated load may be less than standard accuracy. XYaxis artifact: QVI 25 intersection grid reticle at standard measuring plane. Z axis artifact: QVI step gage or master gage blocks. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| -ķep | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Technology | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Optical Gaging Products Inc. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| World Headquarters and Technology Center: 850 Hudson Avenue • Rochester, NY 14621 USA -Tel 585.544.0400 • Fax 585.544.8092 Western USA Technology Center: 4665 Paris Street • Suite 350 • Denver,CO 80239 USA • Tel 303.307.9744 • Fax 303.307.8094 Midwestern USA Technology Center: 1153 Oak Valley Drive • Suite 2 • Ann Arbor, MI 48108 USA • Tel 734.663.7996 • Fax 734.663.0343 OGP Shanghai Co,Ltd: Unit 702/4/6 • 358 Fute North Road • Wai Gao Qiao FTZ • Shanghai,China 200131 •Tel 86.21.5868.0872/73 • Fax86.21.5868.1431 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| OGP Messtechnik GmbH: Nassaustr.11 • 65719 Hofheim-Wallau, Germany •Tel 49.6122.9968.0 • Fax 49.6122.9968.20 A Quality Vision International Company Optical Gaging (S) Pte Ltd: 21 Tannery Road,347733 Singapore •Tel 65.741.8880 • Fax 65.846.8998 Internet: www.ogpnet.com • sales@ogpnet.com | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Copyright© 2003 Optical Gaging Products, Inc. All rights reserved. Trademarks are the properties of their respective owners. Printed in USA. Specifications subject to change without notice. Please recycle. Publication Number 790285-1103 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
