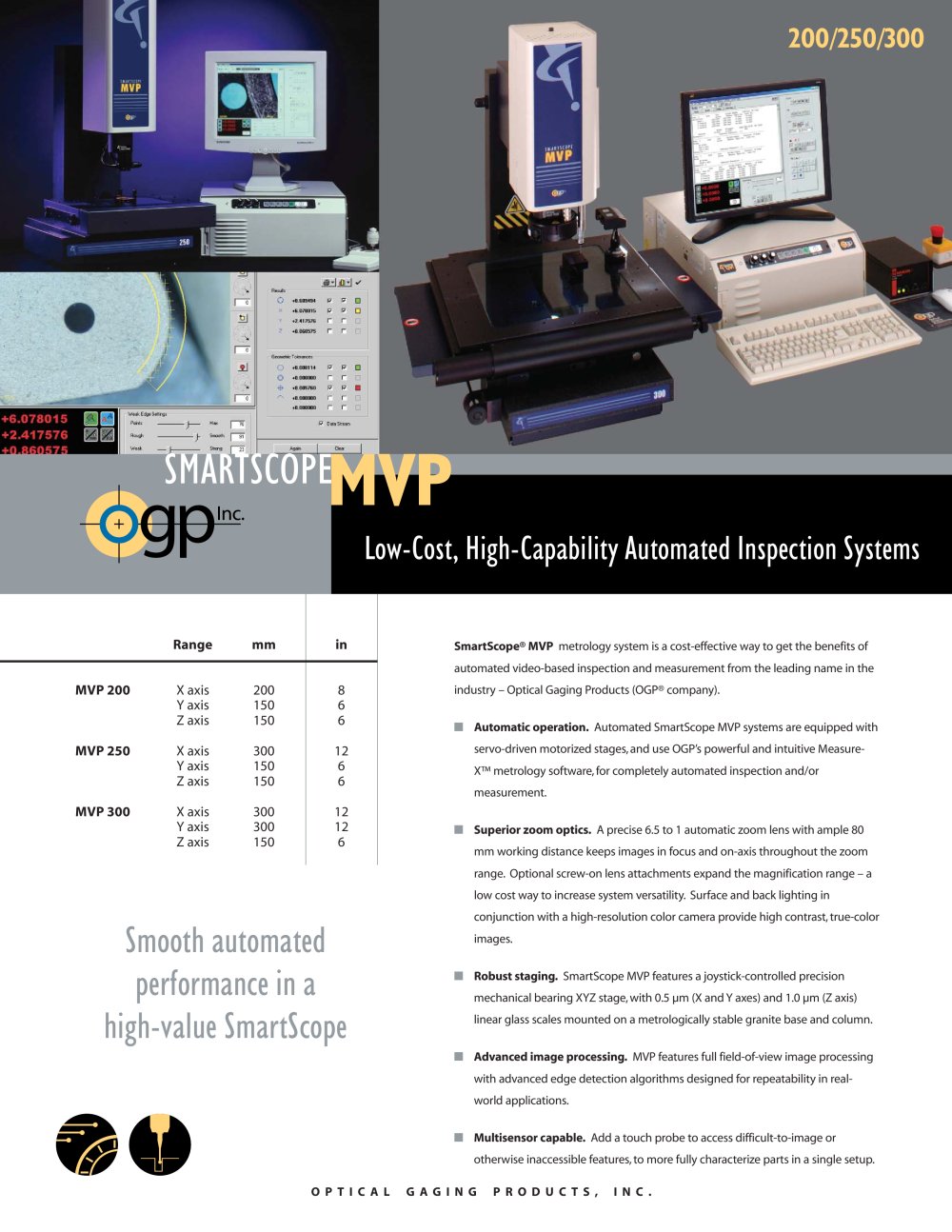

Low-Cost, High-Capability Automated Inspection Systems

RangemminMVP 200

SmartScope® MVP metrology system is a cost-effective way to get the benefits of automated video-based inspection and measurement from the leading name in the industry – Optical Gaging Products (OGP® company).

X axis2008Y axis1506Z axis1506

nn nn n Automatic operation. Automated SmartScope MVP systems are equipped with servo-driven motorized stages, and use OGP’s powerful and intuitive Measure-X™

MVP 250 X axis30012Y axis1506Z axis1506

metrology software, for completely automated inspection and/or measurement.

MVP 300 X axis30012Y axis30012Z axis1506

Superior zoom optics. A precise 6.5 to 1 automatic zoom lens with ample 80 mm working distance keeps images in focus and on-axis throughout the zoom range. Optional screw-on lens attachments expand the magnification range – a low cost way to increase system versatility. Surface and back lighting in conjunction with a high-resolution color camera provide high contrast, true-color images.

Smooth automatedperformance in ahigh-value SmartScope

Robust staging. SmartScope MVP features a joystick-controlled precision mechanical bearing XYZ stage, with 0.5 µm (X and Y axes) and 1.0 µm (Z axis) linear glass scales mounted on a metrologically stable granite base and column. Advanced image processing. MVP features full field-of-view image processing with advanced edge detection algorithms designed for repeatability in real-world applications. Multisensor capable. Add a touch probe to access difficult-to-image or otherwise inaccessible features, to more fully characterize parts in a single setup. OPTICAL GAGING PRODUCTS, INC.
