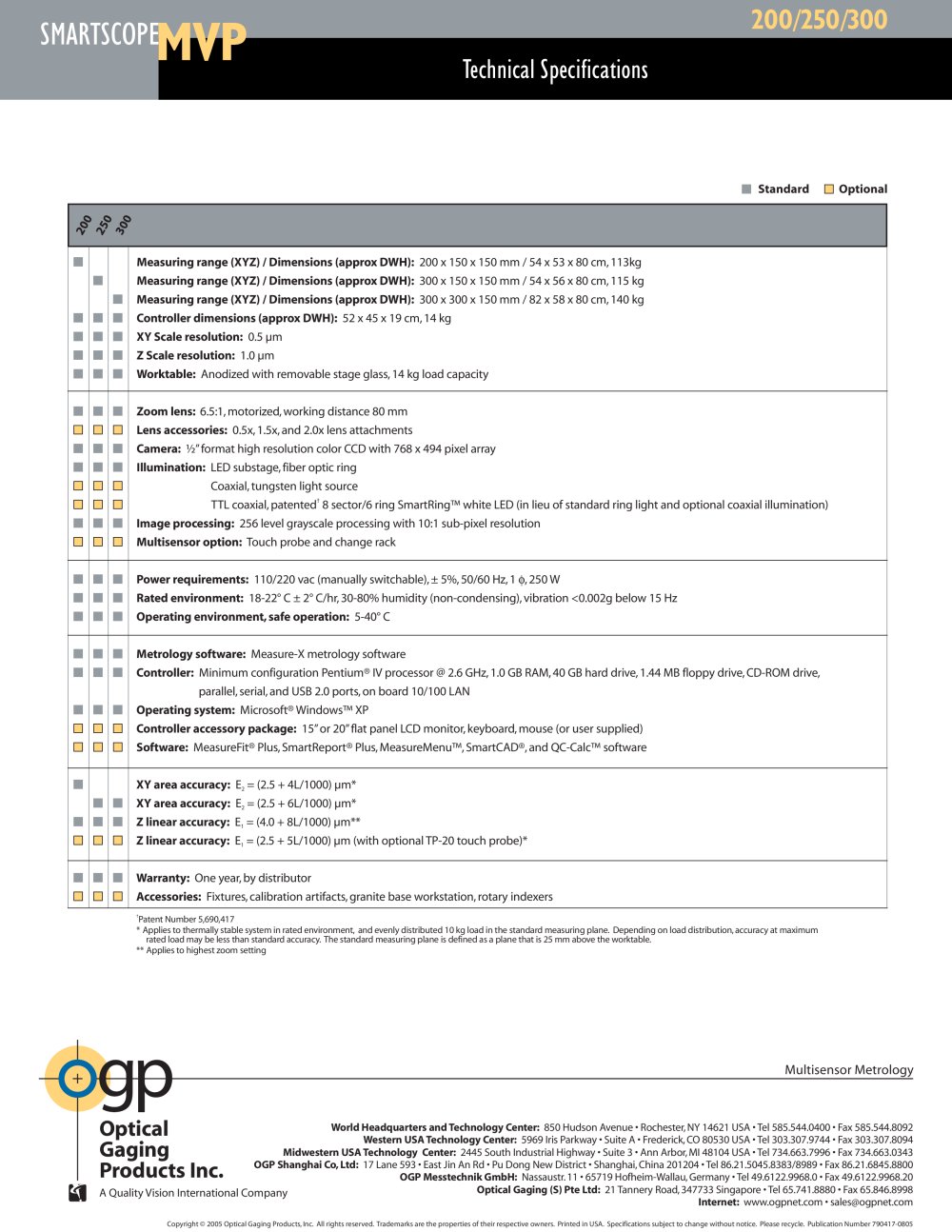

SMAKlSCOPEMYp 200/250/300

Technical Specifications

Standard ■ Optional



				Measuring range (XYZ) / Dimensions (approx DWH): 200 x 150 x 150 mm / 54 x 53 x 80 cm, 113kg Measuring range (XYZ) / Dimensions (approx DWH): 300 x 150 x 150 mm / 54 x 56 x 80 cm, 115 kg Measuring range (XYZ) / Dimensions (approx DWH): 300 x 300 x 150 mm / 82 x 58 x 80 cm, 140 kg Controller dimensions (approx DWH): 52 x 45 x 19 cm, 14 kg XY Scale resolution: 0.5 um Z Scale resolution: 1.0 um Worktable: Anodized with removable stage glass, 14 kg load capacity
				Zoom lens: 6.5:1, motorized, working distance 80 mm Lens accessories: 0.5x, 1.5x,and 2.0x lens attachments Camera: ^"format high resolution color CCD with 768 x 494 pixel array Illumination: LED substage,fiber optic ring Coaxial, tungsten light source TTL coaxial, patented* 8 sector/6 ring SmartRing™ white LED (in lieu of standard ring light and optional coaxial illumination) Image processing: 256 level grayscale processing with 10:1 sub-pixel resolution Multisensor option: Touch probe and change rack
				Power requirements: 110/220 vac (manually switchable), ± 5%, 50/60 Hz, 1 <S>, 250 W Rated environment: 18-22° C ± 2°C/hr,30-80% humidity (non-condensing), vibration <0.002g below 15 Hz Operating environment, safe operation: 5-40° C
				Metrology software: Measure-X metrology software Controller: Minimum configuration Pentium® IV processor @ 2.6 GHz, 1.0 GB RAM, 40 GB hard drive, 1.44 MB floppy drive, CD-ROM drive, parallel, serial, and USB 2.0 ports, on board 10/100 LAN Operating system: Microsoft® Windows™ XP Controller accessory package: 15"or 20"flat panel LCD monitor, keyboard, mouse (or user supplied) Software: MeasureFit® Plus.SmartReport® Plus,MeasureMenu™,SmartCAD®,and QC-Calc™ software
				XY area accuracy: E₂ = (2.5 + 4L/1000) urn* XY area accuracy: E₂ = (2.5 + 6L/1000) urn* Z linear accuracy: E, = (4.0 + 8L/1000) urn Z linear accuracy:** E, = (2.5 + 5L/1000) um (with optional TP-20 touch probe)*
				Warranty: One year, by distributor Accessories: Fixtures, calibration artifacts, granite base workstation, rotary indexers

'Patent Number 5,690,417

* Applies to thermally stable system in rated environment, and evenly distributed 10 kg load in the standard measuring plane. Depending on load distribution, accuracy at maximum

rated load may be less than standard accuracy. The standard measuring plane is defined as a plane that is 25 mm above the worktable. ** Applies to highest zoom setting

Multisensor Metrology

ODtiCSl World Headquarters andTechnology Center: 850 Hudson Avenue • Rochester, NY 14621 USA -Tel 585.544.0400 • Fax 585.544.8092

_ " . Western USA Technology Center: 5969 Iris Parkway • Suite A • Frederick, CO 80530 USA -Tel 303.307.9744 • Fax 303.307.8094

GdC|inC| Midwestern USA Technology Center: 2445 South Industrial Highway • Suite 3 • Ann Arbor, Ml 48104 USA -Tel 734.663.7996 • Fax 734.663.0343

Dfrtrll irte |_nr OGP Shanghai Co, Ltd: 17 Lane 593 • East Jin An Rd • Pu Dong New District • Shanghai, China 201204 -Tel 86.21.5045.8383/8989 • Fax 86.21.6845.8800

rlOaUCl5 int. OGP Messtechnik GmbH: Nassaustr.11 • 65719 Hofheim-Wallau, Germany-Tel 49.6122.9968.0-Fax 49.6122.9968.20

^Jl A Quality Vision International Company Optical Gaging (S) Pte Ltd: 21 Tannery Road, 347733 Singapore -Tel 65.741.8880- Fax 65.846.8998

Internet: www.ogpnet.com-sales@ogpnet.com

Copyright © 2005 Optical Gaging Products, Inc Al I rights reserved. Trademarks are the properties of their respective owners. Printed in USA. Specifications subject to change without notice. Please recycle. Publication Number 790417-0805
