| | | | | | | | | | | | | Range | mm | in | | | | Rash 200 | X axis | 200 | 8 | | | | | Y axis | 200 | 8 | | | | | Z axis | 150 | 6 | | | | | | | | | | | |

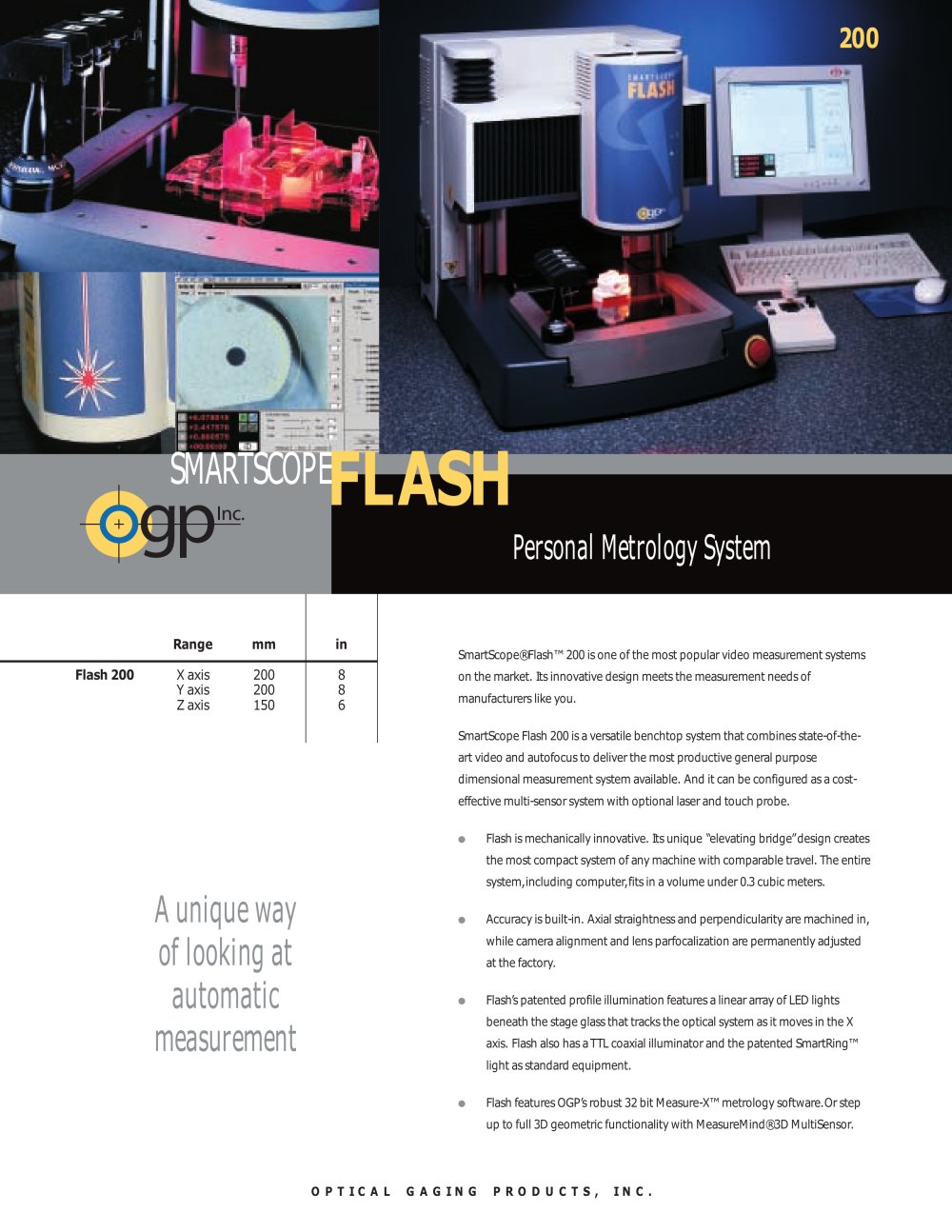

| | | SmartScope®Rash™200 isone of the most popular video measurement systems on the market. Itsinnovative desgn meetsthe measurement needsof manufacturerslikeyou. SmartScope Rash 200 isa versatile benchtop system that combinesstate-of-the-art video and autofocusto deliverthe most productive general purpose dimensional measurement system available. And it can be configured asacost-effective multi-sensor system with optional laser and touch probe. • Rash ismechanically innovative. Itsunique "elevating bridge"design creates the most compact system of any machine with comparabletravel. The entire system, including computer, fitsin a volume under 0.3 cubic meters • Accuracy isbuilt-in. Axial straightnessand perpendicularity are machined in, while camera alignment and lensparfocalization are permanently adjusted at the factory. • Rash's patented profile illumination featuresa linear array of LED lights beneath the stage glassthat tracksthe optical system as it movesin theX axis Rash also has a TTL coaxial illuminator and the patented Smart Ring™ light as standard equipment. • Rash featuresOGPsrobust 32 bit Measure-X™metrology software. Or step up to full 3D geometric functionality with MeasureMind®3D MultiSensor. | | |
| | | |
| | | Aunique way cflockirg at automatic measurement | | |
| | | |
| | | |
| | | O P T I CAL GAG I N G PRODUCTS , I NC . | | |
| | | |
| | | | | | | | | | | |
