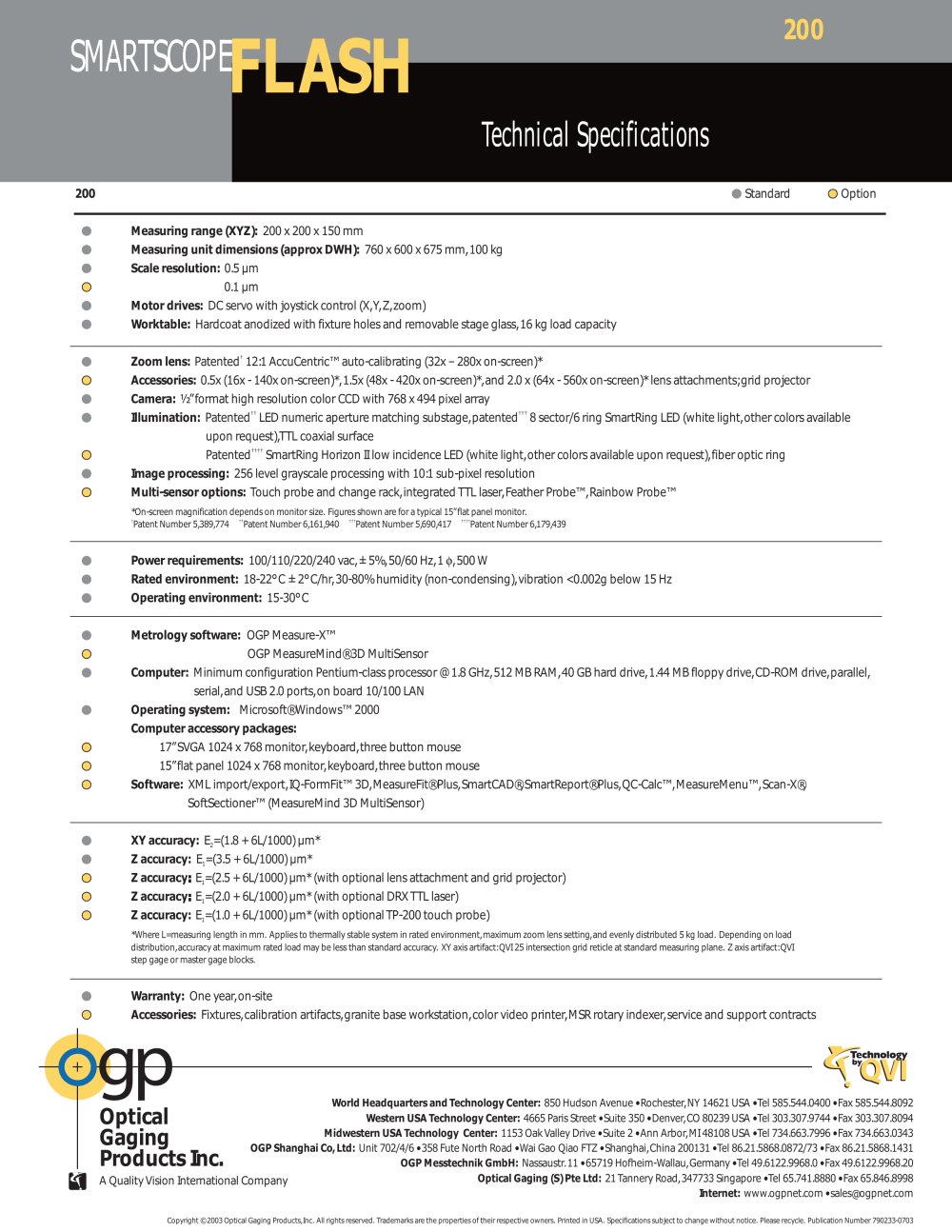

Smartscope Flash 200 - Optical Gaging Products - #2

200 • Standard • Option

Measuring range(XYZ): 200 x 200x150mm

Measuring unit dimensions(approx DWH): 760 x 600 x 675mm,100kg Scale resolution: 0.5 urn 0.1 urn

Motor drives: DCservo with joystick control (XYZ,zoom)

Worktable: Hardcoat anodized with fixture holesand removable stage glass, 16 kg load capacity

Zoom lens: Patented¹12:1 AccuCentric™auto-calibrating (32x-280xon-screen)*

Accessories: 0.5x (16x-140xon-screen)*, 1.5x (48x-420xon-screen)*,and 2.0x (64x-560xon-screen)* lensattachments;grid projector Camera: Y' format high resolution color CCD with 768 x 494 pixel array

Illumination: Patented" LED numeric aperture matching substage, patented"¹8 sector/6 ring Smart Rng LED (white light,other colorsavailable upon request),TTL coaxial surface

Patented"" Smart Rng Horizon II low incidence LED (white light,other colorsavailable upon request), fiber optic ring Image processing: 256 level grayscale processng with 10:1 sub-pixel resolution

Multi-sensor options: Touch probe and change rack, integrated TTL laser, Feather Probe™, Rainbow Probe™

*On-screen magnification dependson monitor sze. Figuressiown are for atypical 15"flat panel monitor.

'Patent Number 5,389,774 "Patent Number 6,161,940 '"Patent Number 5,690,417 ""Patent Number 6,179,439

Power requirements: 100/110/220/240vac,± 5%,50/60 Hz, 1 4>,500W

Rated environment: 18-22°C± 2°C/hr, 30-80% humidity (non-condensing), vibra tion <0.002g below 15Hz Operating environment: 15-30°C

Metrology software: OGPMeasure-X™

OGPMeasureMind®3D MultiSensor

Computer: Minimum configuration Pentium-classprocessor @1.8 GHz, 512 MB RAM, 40 GB hard drive, 1.44 MBfloppy drive, CD-ROM drive, parallel,

serial,and USB2.0 ports,on board 10/100 LAN Operating system: Microsoft®Wndows™2000 Computer accessory packages:

17' SVGA 1024 x 768 monitor,keyboard,three button mouse 15"flat panel 1024 x 768 monitor,keyboard,three button mouse Software: XML import/export, IQ-FormRt™3D,MeasureRt®Pus, Smart CAD®, Smart Report®Pus,QC-Calc™,MeasureMenu™,Scan-X<B! SoftSectioner™(MeasureMind 3D MultiSensor)

XYaccuracy: E₂=(1.8 + 6IV1000)um* Zaccuracy: E=(3.5+ 6L71000)um*

Zaccuracy E=(2.5 + 6L/1000) um* (with optional lensattachment and grid projector) Zaccuracy E=(2.0 + 6L/1000)um* (with optional DRXTTLlaser) Zaccuracy: E=(1.0 + 6L/1000) um* (with optional TP-200touch probe)

*^ereL=measuring length in mm. Appliesto thermally stable system in rated environment, maximum zoom lenssetting,and evenly distributed 5 kg load. Depending on load distribution, accuracy at maximum rated load maybe lessthan standard accuracy. XYaxisartifact:QV 25 intersection grid reticle at standard measuring plane. Zaxisartifact:QV step gageor master gageblocks.

Warranty: One year, on-site

Accessories: Fxtures, calibration artifacts granite base workstation, color video printer, MSRrotary indexer, service and support contracts
