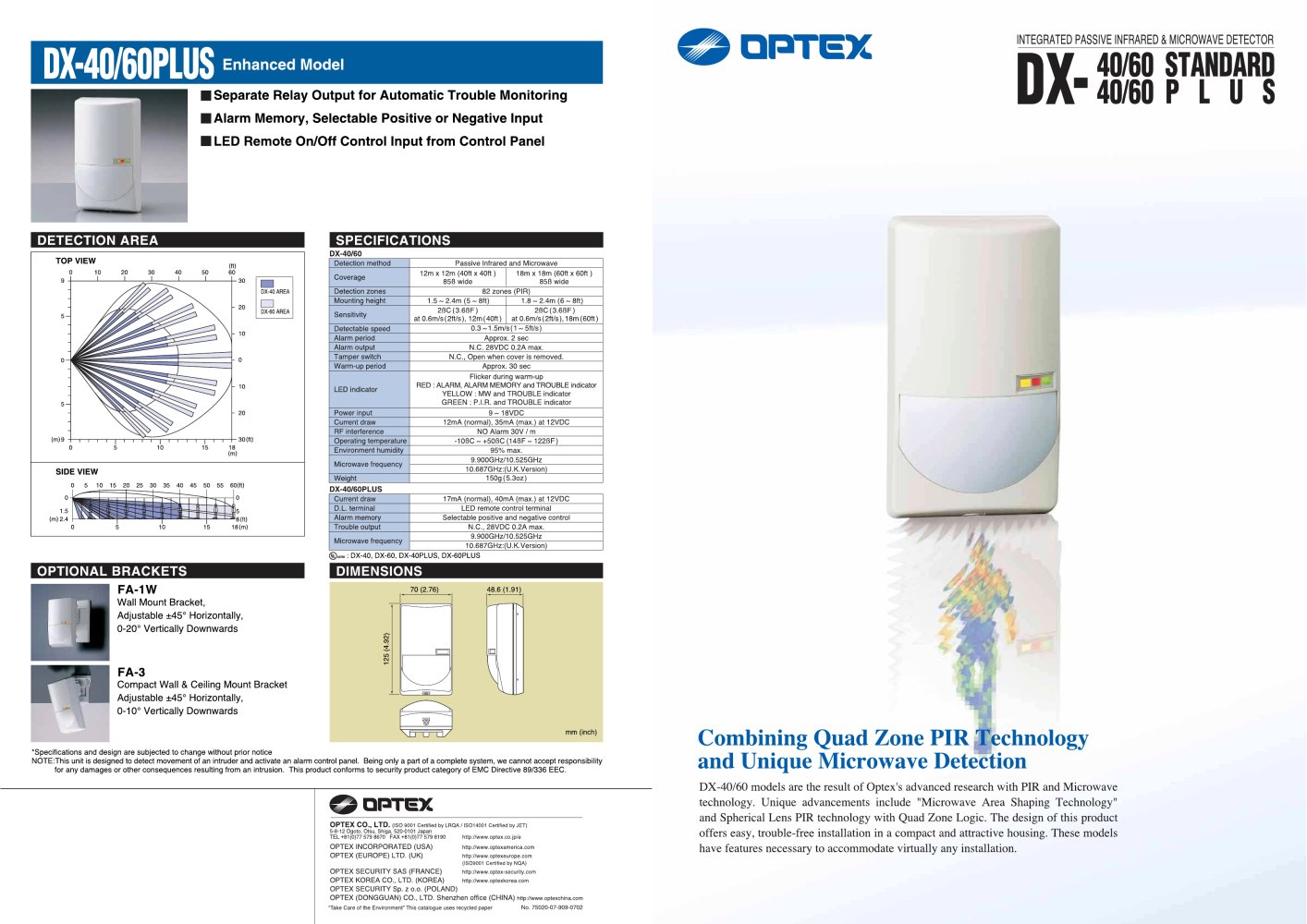

DX-40/60PLUS^Ennanced ^Mode|

Separate Relay Output for Automatic Trouble Monitoring I Alarm Memory, Selectable Positive or Negative Input I LED Remote On/Off Control Input from Control Panel

DETECTION AREA

SPECIFICATIONS


DX-40/60
Detection method	Passive Infrared	and Microwave
Coverage	12m x 12m (40ft x 40ft) 85(3 wide	18m x 18m (60ft x 60ft) 85B wide
Detection zones	82 zones (PIR)
Mounting height	1.5 - 2.4m (5 - 8ft)	1.8 - 2.4m (6-8ft)
Sensitivity	2BC(3.6BF) at0.6m/s(2ft/s), 12m (40ft)	2ßC(3.6ßF) at 0.6m/s (2ft/s), 18m (60ft)
Detectable speed	0.3~1.5m/s(1~5ft/s)
Alarm period	Approx. 2 sec
Alarm output	N.C. 28VDC 0.2A max.
Tamper switch	N.C., Open when cover Is removed.
Warm-up period	Approx. 30 sec
LED indicator	Flicker during warm-up RED : ALARM, ALARM MEMORY and TROUBLE indicator YELLOW : MW and TROUBLE indicator GREEN : P.I.R. and TROUBLE indicator
Power input	9-18VDC
Current draw	12mA (normal), 35mA (max.) at 12VDC
RF interference	NO Alarm 30V / m
Operating temperature	-10I3C - +50I3C (14BF ~122BF)
Environment humidity	95% max.
Microwave frequency	9.900GHz/10.525GHz
Microwave frequency	10.687GHz:(U. K. Version)
Weight	150g(5.3oz)
DX-40/60PLUS
Current draw	17mA (normal), 40mA (max.) at 12VDC
D.L. terminal	LED remote control terminal
Alarm memory	Selectable positive and negative control
Trouble output	N.C, 28VDC 0.2A max.
Microwave frequency	9.900GHz/10.525GHz
Microwave frequency	10.687GHz:(U.K. Version)

TOP VIEW

SIDE VIEW

0 5 10 15 20 25 30 35 40 45 50 55 G0(tt]

®™ : DX-40, DX-60, DX-40PLUS, DX-60PLUS


	OPTIONAL	BRACKETS 1
		FA-1W
		Wall Mount Bracket,
		Adjustable ±45° Horizontally,
	Ш	0-20° Vertically Downwards
		FA-3
	-,	Compact Wall & Ceiling Mount Bracket
	-,	Adjustable ±45° Horizontally,
	>	0-10° Vertically Downwards

DIMENSIONS

70 (2.76)

6(1.91)

Combining Quad Zone PIR Technology and Unique Microwave Detection

'Specifications and design are subjected to change without prior notice

NOTE:This unit is designed to detect movement of an intruder and activate an alarm control panel. Being only a part of a complete system, we cannot accept responsibility for any damages or other consequences resulting from an intrusion. This product conforms to security product category of EMC Directive 89/336 EEC.

DX-40/60 models are the result of Optex's advanced research with PIR and Microwave technology. Unique advancements include "Microwave Area Shaping Technology" and Spherical Lens PIR technology with Quad Zone Logic. The design of this product offers easy, trouble-free installation in a compact and attractive housing. These models have features necessary to accommodate virtually any installation.

OPTEX CO., LTD. (ISO 9001 Certified by LRQA/ IS014001 Certified by JET) 5-8-12 Ogoto, Otsu, Shiga, 520-0101 Japan

TEL +81 (0)77 579 8670 FAX +B1 (0)77 579 6190

http ://www.optox.co.]p/e Http J/www.optexamenca.coni http ^Avww.optexeurope.com [ISO9001 Certified by NOA] http J/www.optex-security .corri http Mvww.optexkorea.com

OPTEX INCORPORATED (USA) OPTEX (EUROPE) LTD. (UK)

OPTEX SECURITY SAS (FRANCE) OPTEX KOREA CO., LTD. (KOREA)

OPTEX SECURITY Sp. z o.o. (POLAND) OPTEX (DONGGUAN) CO., LTD. Shenzhen office (CHINA) httpj/www.optexctuna.com Take Care of the Environment" This catalogue uses recycled paper No. 75020-07-909-0702
