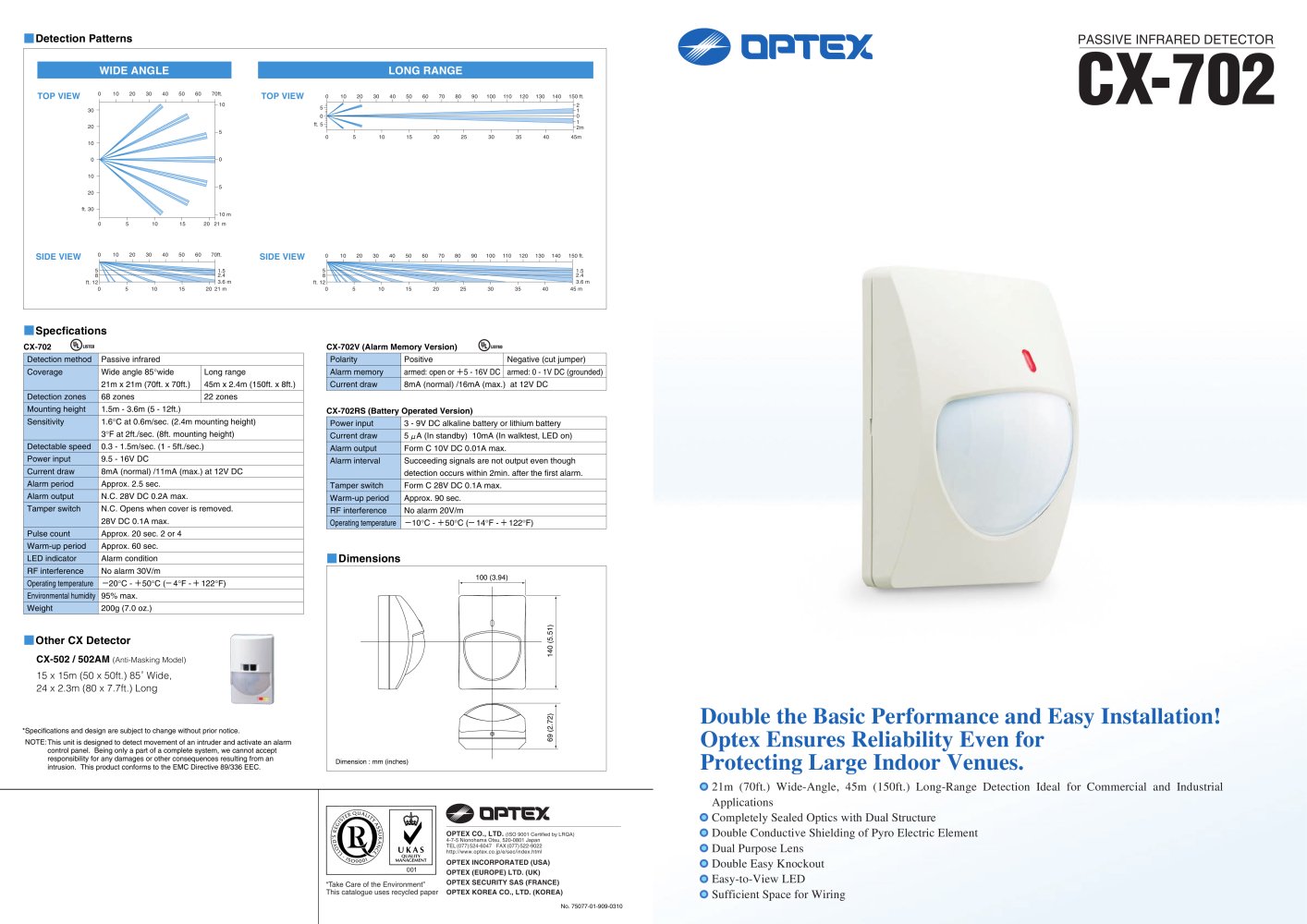

PASSIVE INFRARED DETECTOR

CX-702

□PTEX

Detection Patterns

LONG RANGE

WIDE ANGLE

10 15 20 25 30 35 40 45m

0 10 20 30 40 50 60 70ft.

90 100 110 120 130 140 150 ft.

SIDE VIEW

0 10 20 30 40 50 60 70

5 8

ft. 12

15 20 25 30 35 40 45 n

10 15 20 21

Specfications

CX-702 ©listed

CX-702V (Alarm Memory Version) ®


Polarity	Positive	Negative (cut jumper)
Alarm memory	armed: open or +5 - 16V DC	armed: 0 - 1V DC (grounded)
Current draw	8mA (normal) /16mA (max.	) at 12V DC
CX-702RS (Battery Operated Version)
Power input	3 - 9V DC alkaline battery or lithium battery
Current draw	5 nA (In standby) 10mA (In walktest, LED on)
Alarm output	Form C 10V DC 0.01 A max.
Alarm interval	Succeeding signals are not output even though detection occurs within 2min. after the first alarm.
Tamper switch	Form C 28V DC 0.1 A max.
Warm-up period	Approx. 90 sec.
RF interference	No alarm 20V/m
Operating temperature	-10°C - + 50°C (- 14°F - + 122°F)


Detection method	Passive infrared
Coverage	Wide angle 85°wide	Long range
	21m x 21m (70ft. x 70ft.)	45m x 2.4m (150ft. x 8ft.)
Detection zones	68 zones	22 zones
Mounting height	1.5m-3.6m (5- 12ft.)
Sensitivity	1.6°C at 0.6m/sec. (2.4m mounting height) 3°F at 2ft./sec. (8ft. mounting height)
Detectable speed	0.3 - 1.5m/sec. (1 - 5ft./sec.)
Power input	9.5- 16V DC
Current draw	8mA (normal) /11mA (max.) at 12V DC
Alarm period	Approx. 2.5 sec.
Alarm output	N.C. 28V DC 0.2A max.
Tamper switch	N.C. Opens when cover is removed.
	28V DC 0.1 A max.
Pulse count	Approx. 20 sec. 2 or 4
Warm-up period	Approx. 60 sec.
LED indicator	Alarm condition
RF interference	No alarm 30V/m
Operating temperature	-20°C - +50°C (-4°F -+ 122°F)
Environmental humidity	95% max.
Weight	200g (7.0 oz.)

I Dimensions

100 (3.94)

I Other CX Detector

CX-502 / 502AM (Anti-Masking Model)

15 x 15m (50 x 50ft.) 85° Wide, 24 x 2.3m (80 x 7.7ft.) Long

Double the Basic Performance and Easy Installation! Optex Ensures Reliability Even for Protecting Large Indoor Venues.

O 21m (70ft.) Wide-Angle, 45m (150ft.) Long-Range Detection Ideal for Commercial and Industrial

Applications O Completely Sealed Optics with Dual Structure O Double Conductive Shielding of Pyro Electric Element O Dual Purpose Lens O Double Easy Knockout O Easy-to-View LED O Sufficient Space for Wiring

*Specifications and design are subject to change without prior notice.

NOTE:This unit is designed to detect movement of an intruder and activate an alarm control panel. Being only a part of a complete system, we cannot accept responsibility for any damages or other consequences resulting from an intrusion. This product conforms to the EMC Directive 89/336 EEC.

Dimension : mm (inches)


	h^M^i"^ C(RJ	UKAS QUALITY MANAGEMENT
		001

OPTEX CO., LTD. (ISO 9001 Certified by LRQA) 4-7-5 Nionohama Otsu, 520-0801 Japan TEL (077) 524-6047 FAX (077) 522-9022 http ://www .optex .co .jp/e/sec/i ndex. ht m I

OPTEX INCORPORATED (USA) OPTEX (EUROPE) LTD. (UK)

"Take Care of the Environment" ^0PTEX SECURITY SAS (FRANCE) This catalogue uses recycled paper OPTEX KOREA CO., LTD. (KOREA)

No. 75077-01-909-0310
