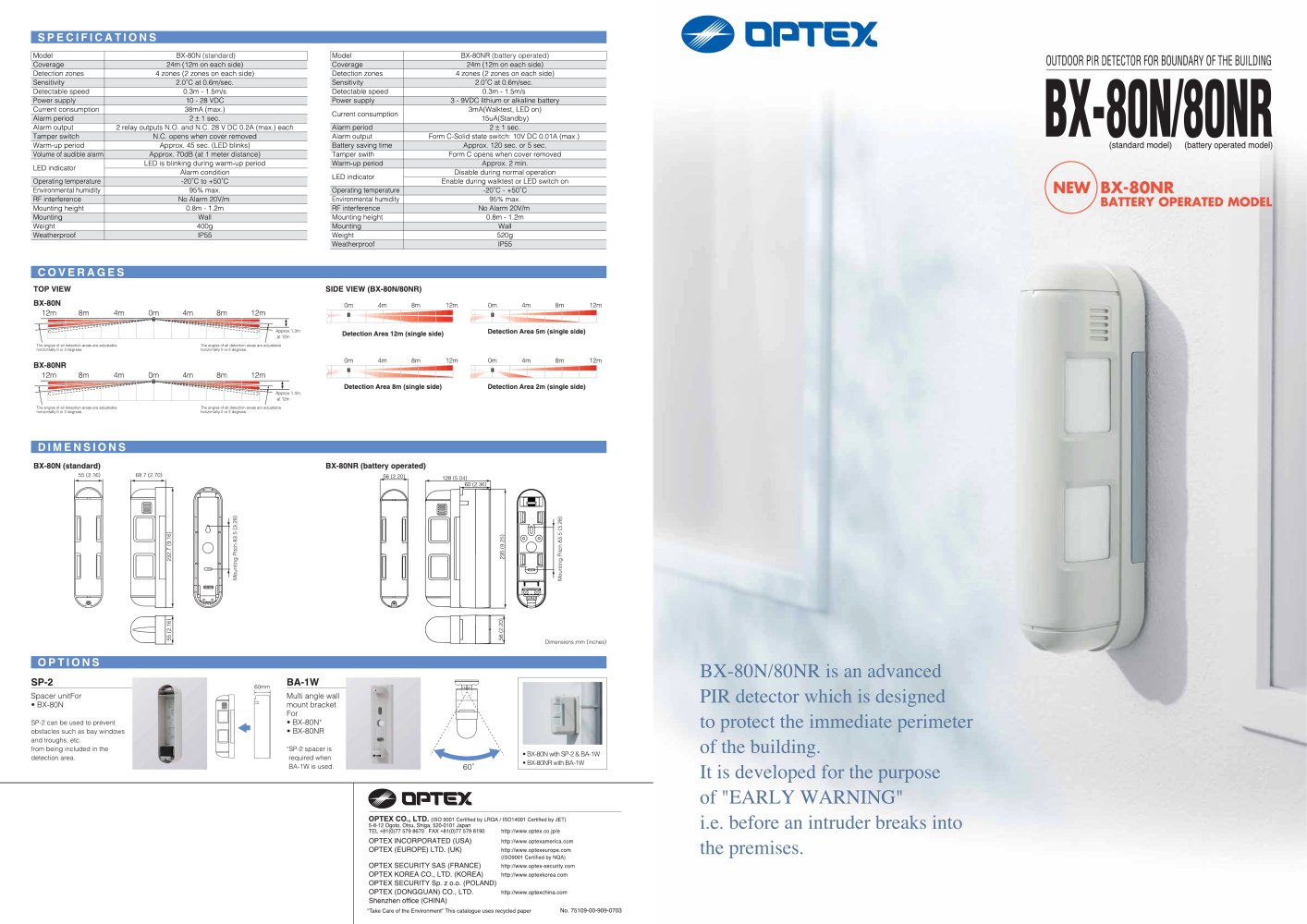

□PTEX

SPECIFICATION


Model	BX-80N (standard)	Model	BX-80NR (battery operated)
Coverage	24m (12m on each side)	Coverage	24m (12m on each side)
Detection zones	4 zones (2 zones on each side)	Detection zones	4 zones (2 zones on each side)
Sensitivity	2.0'C at 0.6m/sec.	Sensitivity	2.0'C at 0.6m/sec.
Detectable speed	0.3m - 1.5m/s	Detectable speed	0.3m -1.5m/s
Power supply	10-28VDC	Power supply	3 - 9VDC lithium or alkaline battery
Current consumption	38mA (max.)	Current consumption	3mA(Walktest, LED on)
Alarm period	2 ±1 sec.	Current consumption	15uA(Standby)
Alarm output	2 relay outputs N.O. and N.C. 28 V DC 0.2A (max.) each	Alarm period	2 ± 1 sec.
Tamper switch	N.C. opens when cover removed	Alarm output	Form C-Solid state switch: 10V DC 0.01 A (max.)
Warm-up period	Approx. 45 sec. (LED blinks)	Battery saving time	Approx. 120 sec. or 5 sec.
Volume of audible alarm	Approx. 70dB (at 1 meter distance)	Tamper swith	Form C opens when cover removed
LED indicator	LED is blinking during warm-up period	Warm-up period	Approx. 2 min.
LED indicator	Alarm condition	LED indicator	Disable during normal operation
Operating temperature	-20"C to +50"C	LED indicator	Enable during walktest or LED switch on
Environmental humidity	95% max.	Operating temperature	-20"C - +50"C
RF interference	No Alarm 20V/m	Environmental humidity	95% max.
Mounting height	0.8m-1.2m	RF interference	No Alarm 20V/m
Mounting	Wall	Mounting height	0.8m-1.2m
Weight	400g	Mounting	Wall
Weatherproof	IP55	Weight	520g
Weatherproof			IP55

OUTDOOR PIR DETECTOR FOR BOUNDARY OF THE BUILDING

BX-80N/80NR

(standard model) (battery operated model)

(NEW ) BX-80NR

V J BATTERY OPERATED MODEL

COVE

TOP VIEW

BX-80N

12m

SIDE VIEW (BX-80N/80NR)

0m_4m_8m_12m

Detection Area 12m (single side)

0m i

12m

«ff?

----rii f~ Approx.1.3m

_] / at 12m

Detection Area 5m (single side)

0m 4m 8m

^—I ^^L^^T*

Detection Area 8m (single side)

0m i

4m 8m

BX-80NR

12m 8m

12m

II III

•I

^:~~-ZD f~ Apprax.1.4m J / at 12m

Detection Area 2m (single side)

■.irum.ru

BX-80N (standard)

55(2.16)

BX-80NR (battery operated)

56 (2.20J,

58.7 (2.70)

128(5.04)

60_

Dimensions :mm (inches)


	BA-1W
	Multi angle wall
	mount bracket
	For	1
	• BX-80N*	c
	• BX-80NR
		m
	*SP-2 spacer is	•il
	required when	•il
	BA-1W Is used.

SP-2

Spacer unitFor • BX-80N

SP-2 can be used to prevent obstacles such as bay windows and troughs, etc from being included in the detection area.


	n	T"
	1 —1

□ □

to protect the immediate perimeter of the building.

It is developed for the purpose of "EARLY WARNING" i.e. before an intruder breaks into the premises.

• BX-80N with SP-2 & BA-1W •BX-80NRwittlBA-1W

60°

OPTEX CO., LTD. (ISO 9001 Certified by LRQA/ISO14001 Certified by JET) 5-8-12 Ogoto, Otsu, Shiga, 520-0101 Japan

TEL +81 (0)77 579 8670 FAX +81 (0)77 579 8190

http://www.optex.co.Jp/e http://www.optexamerica.com http://www.optexeurope.com (ISO9001 Certified by NQA) http://www.optex-security.com http://www.optexkorea.com

OPTEX INCORPORATED (USA) OPTEX (EUROPE) LTD. (UK)

OPTEX SECURITY SAS (FRANCE) OPTEX KOREA CO., LTD. (KOREA)

OPTEX SECURITY Sp. z 0.0. (POLAND)

OPTEX (DONGGUAN) CO., LTD.

http://www.optexchina.com

Shenzhen office (CHINA)

Take Care of the Environment" This catalogue uses recycled paper

No. 75109-00-909-0703
