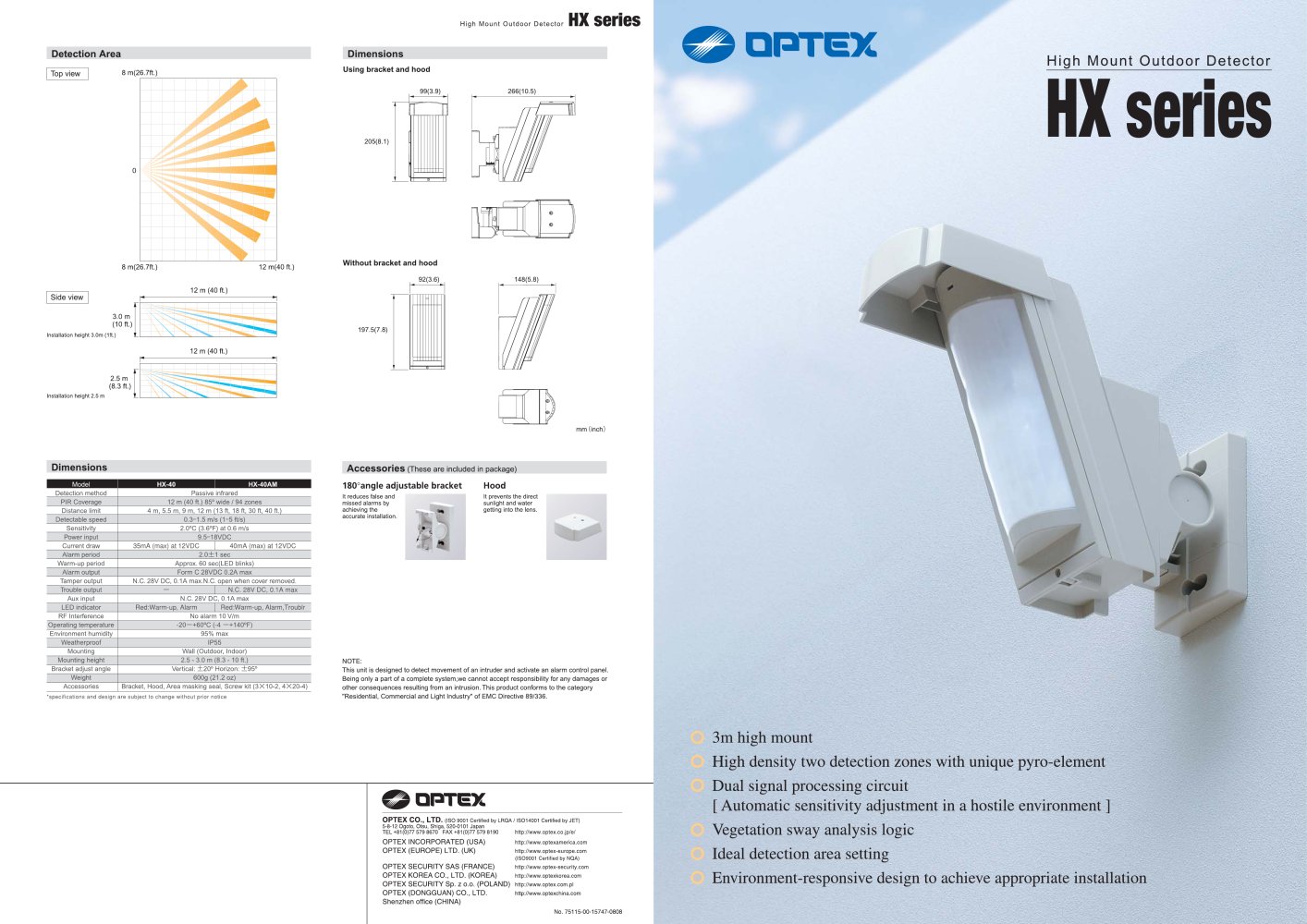

HX series

High Mount Outdoor Detector

Detection Area Dimensions

High Mount Outdoor Detector

HX series

mm (inch)


	Dimensions

	Detection method	Passive Infrared
	PIR Coverage	12 m (40 ft.) 85° wide / 94 zones
	Distance limit	4 m, 5.5 m, 9 m, 12 m (13 ft, 18 ft, 30 ft, 40 ft.)
	Detectable speed	0.3-1.5m/s(1-5ft/s)
	Sensitivity	2.0°C (3.6°F) at 0.6 m/s
	Power input	9.5-18VDC
	Current draw	35mA (max) at 12VDC 40mA (max) at 12VDC
	Alarm period	2.0±1 sec
	Warm-up period	Approx. 60 sec(LED blinks)
	Alarm output	Form C 28VDC 0.2A max
	Tamper output	N.C. 28V DC, 0.1A max.N.C. open when cover removed.
	Trouble output	- N.C. 28V DC, 0.1 A max
	Aux input	N.C. 28V DC, 0.1 A max
	LED indicator	Red:Warm-up, Alarm Red: Warm-up, Alarm,Troublr
	RF Interference	No alarm 10V/m
	Operating temperature	-20-+60°C (-4 -+140°F)
	Environment humidity	95% max
	Weatherproof	IP55
	Mounting	Wall (Outdoor, Indoor)
	Mounting height	2.5-3.0 m (8.3-10 ft.)
	Bracket adjust angle	Vertical: ±20° Horizon: ±95°
	Weight	600g(21.2oz)

Accessories (These are included in package) 180°angle adjustable bracket Hood

It reduces false and missed alarms by achieving the accurate installation.

It prevents the direct sunlight and water getting into the lens.

NOTE:

This unit is designed to detect movement of an intruder and activate an alarm control panel. Being only a part of a complete system,we cannot accept responsibility for any damages or other consequences resulting from an intrusion. This product conforms to the category "Residential, Commercial and Light Industry" of EMC Directive 89/336.

Accessories | Bracket, Hood, Area masking seal, Screw kit (3X10-2, 4X20-4) 'specifications and design are subject to change without prior notice

3m high mount

High density two detection zones with unique pyro-element Dual signal processing circuit

[ Automatic sensitivity adjustment in a hostile environment ] Vegetation sway analysis logic Ideal detection area setting

Environment-responsive design to achieve appropriate installation
