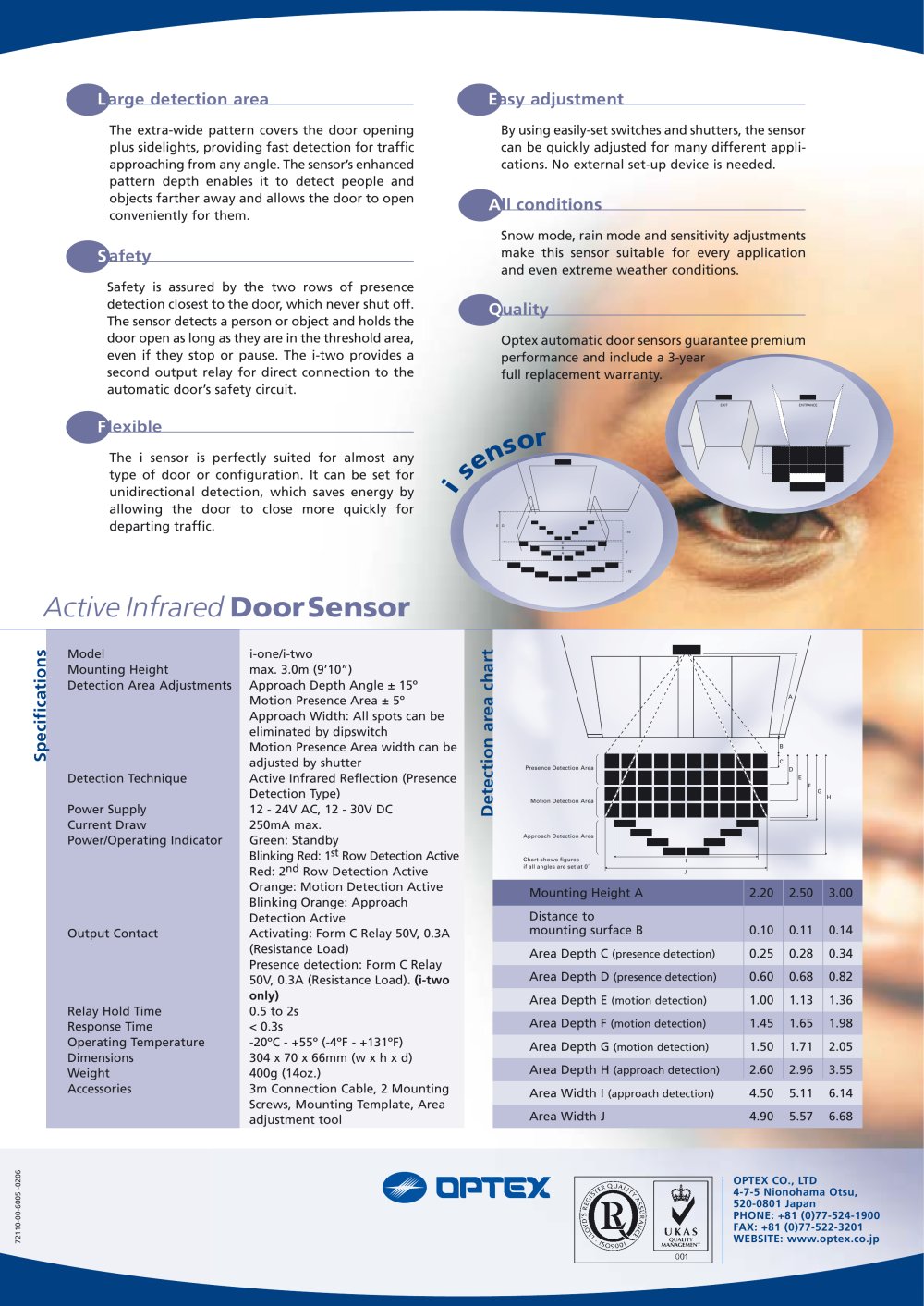

Easy adjustment

L arge detection area

The extra-wide pattern covers the door opening plus sidelights, providing fast detection for traffic approaching from any angle. The sensor's enhanced pattern depth enables it to detect people and objects farther away and allows the door to open conveniently for them.

Safety_

Safety is assured by the two rows of presence detection closest to the door, which never shut off. The sensor detects a person or object and holds the door open as long as they are in the threshold area, even if they stop or pause. The i-two provides a second output relay for direct connection to the automatic door's safety circuit.

Flexible_

By using easily-set switches and shutters, the sensor can be quickly adjusted for many different applications. No external set-up device is needed.

All conditions

Snow mode, rain mode and sensitivity adjustments make this sensor suitable for every application and even extreme weather conditions.

Quality

Optex automatic door sensors guarantee premium performance and include a 3-year full replacement warranty.

The i sensor is perfectly suited for almost any type of door or configuration. It can be set for unidirectional detection, which saves energy by allowing the door to close more quickly for departing traffic.

Active Infrared Door Sensor

i-one/i-two max. 3.0m (9'10") Approach Depth Angle ±15° Motion Presence Area ± 5° Approach Width: All spots can be eliminated by dipswitch

Motion Presence Area width can be

adjusted by shutter Active Infrared Reflection (Presence Detection Type) 12 - 24V AC, 12 - 30V DC 250mA max. Green: Standby

Blinking Red: 1^st Row Detection Active

Red: 2^nd Row Detection Active

Orange: Motion detection Active Blinking Orange: Approach

Detection Active

Activating: Form C Relay 50V, 0.3A (Resistance Load)

Presence detection: Form C Relay

50V, 0.3A (Resistance Load). (i-two only)

0.5 to 2s

< 0.3s

-20°C- +55° (-4°F - +131°F) 304 x 70 x 66mm (w x h x d) 400g (14oz.)

3m Connection Cable, 2 Mounting Screws, Mounting Template, Area

adjustment tool

Motion Detection Area

Approach Detection Area

Chart shows figures if all angles are set at 0*


Mounting Height A	2.20	2.50	3.00
Distance to mounting surface B	0.10	0.11	0.14
Area Depth C (presence detection)	0.25	0.28	0.34
Area Depth D (presence detection)	0.60	0.68	0.82
Area Depth E (motion detection)	1.00	1.13	1.36
Area Depth F (motion detection)	1.45	1.65	1.98
Area Depth G (motion detection)	1.50	1.71	2.05
Area Depth H (approach detection)
Area Depth H (approach detection)	2.60	2.96	3.55
Area Width I (approach detection)	4.50	5.11	6.14
Area Width J	4.90	5.57	6.68
