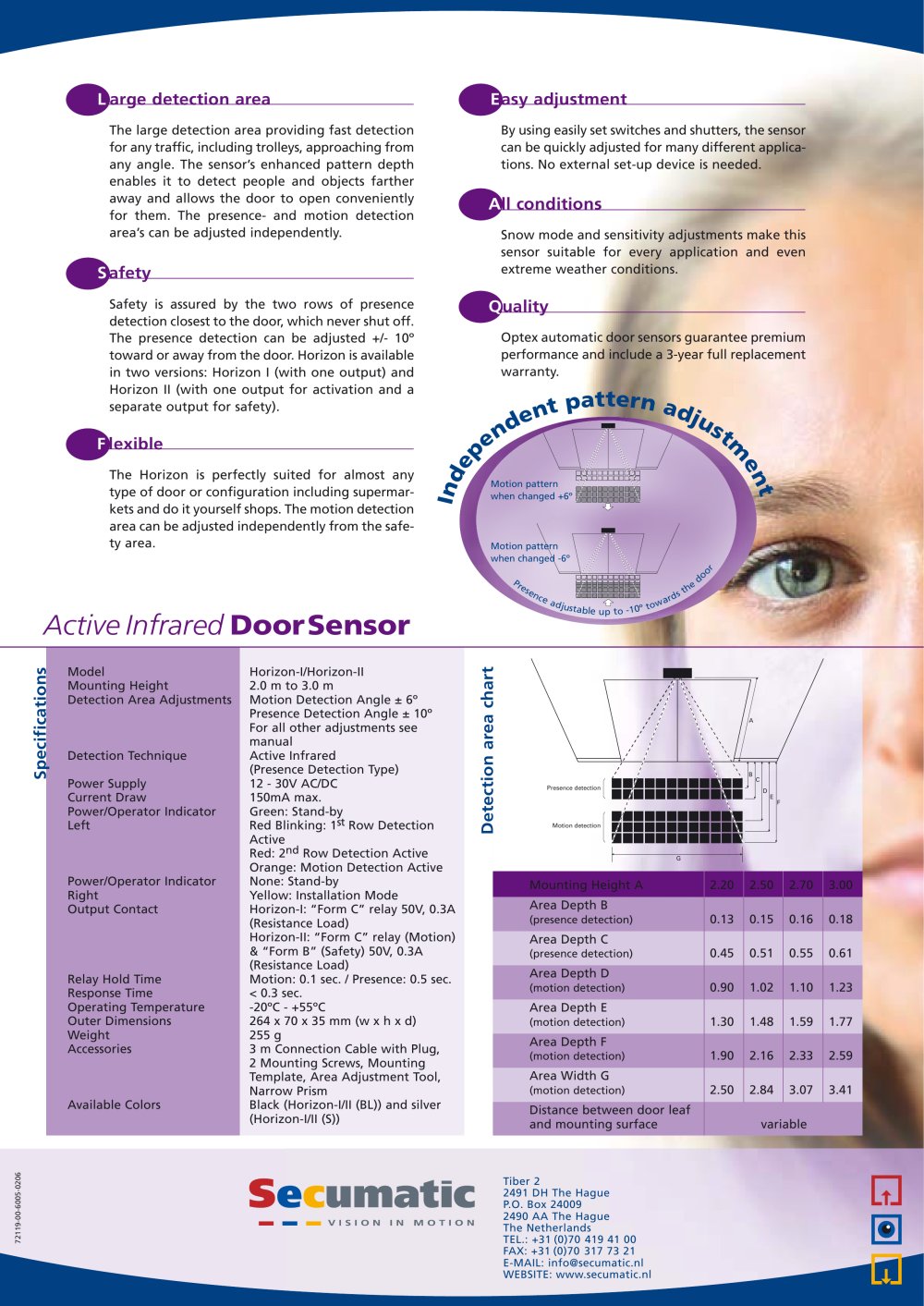

Large detection area

Easy adjustment

The large detection area providing fast detection for any traffic, including trolleys, approaching from any angle. The sensor's enhanced pattern depth enables it to detect people and objects farther away and allows the door to open conveniently for them. The presence- and motion detection area's can be adjusted independently.

Safety-

By using easily set switches and shutters, the sensor can be quickly adjusted for many different applications. No external set-up device is needed.

All conditions

Snow mode and sensitivity adjustments make this

sensor suitable for every application and even extreme weather conditions.

^ Quality

Safety is assured by the two rows of presence detection closest to the door, which never shut off. The presence detection can be adjusted +/- 10° toward or away from the door. Horizon is available in two versions: Horizon I (with one output) and Horizon II (with one output for activation and a separate output for safety).

Flexible_

Optex automatic door sensors guarantee premium performance and include a 3-year full replacement warranty.

The Horizon is perfectly suited for almost any type of door or configuration including supermarkets and do it yourself shops. The motion detection area can be adjusted independently from the safety area.

Active Infrared Door Sensor

Model

Mounting Height Detection Area Adjustments

Horizon-I/Horizon-II 2.0 m to 3.0 m

Motion Detection Angle ± 6° Presence Detection Angle ± 10° For all other adjustments see manual

Active Infrared

(Presence Detection Type)

12 - 30V AC/DC

150mA max.

Green: Stand-by

Red Blinking: 1^st Row Detection

Active

Red: 2^nd Row Detection Active Orange: Motion Detection Active None: Stand-by Yellow: Installation Mode Horizon-I: "Form C" relay 50V, 0.3A (Resistance Load)

Horizon-II: "Form C" relay (Motion) & "Form B" (Safety) 50V, 0.3A (Resistance Load)

Motion: 0.1 sec. / Presence: 0.5 sec. < 0.3 sec. -20°C - +55°C

264 x 70 x 35 mm (w x h x d)

255 g

3 m Connection Cable with Plug, 2 Mounting Screws, Mounting Template, Area Adjustment Tool, Narrow Prism

Black (Horizon-I/II (BL)) and silver (Horizon-I/II (S))

Detection Technique

Power Supply Current Draw Power/Operator Indicator Left

Presence detection

Motion detection


	-\
Mounting Height A	2.20	2.50	2.70	3.00
Area Depth B (presence detection)	0.13	0.15	0.16	0.18
Area Depth C (presence detection)	0.45	0.51	0.55	0.61
Area Depth D (motion detection)	0.90	1.02	1.10	1.23
Area Depth E (motion detection)	1.30	1.48	1.59	1.77
(motion detection)	1.90	2.16	2.33	2.59
Area Width G
(motion detection)	2.50	2.84	3.07	3.41
Distance between door leaf and mounting surface	variable

Power/Operator Indicator Right

Output Contact

Relay Hold Time Response Time Operating Temperature Outer Dimensions Weight Accessories

Available Colors
