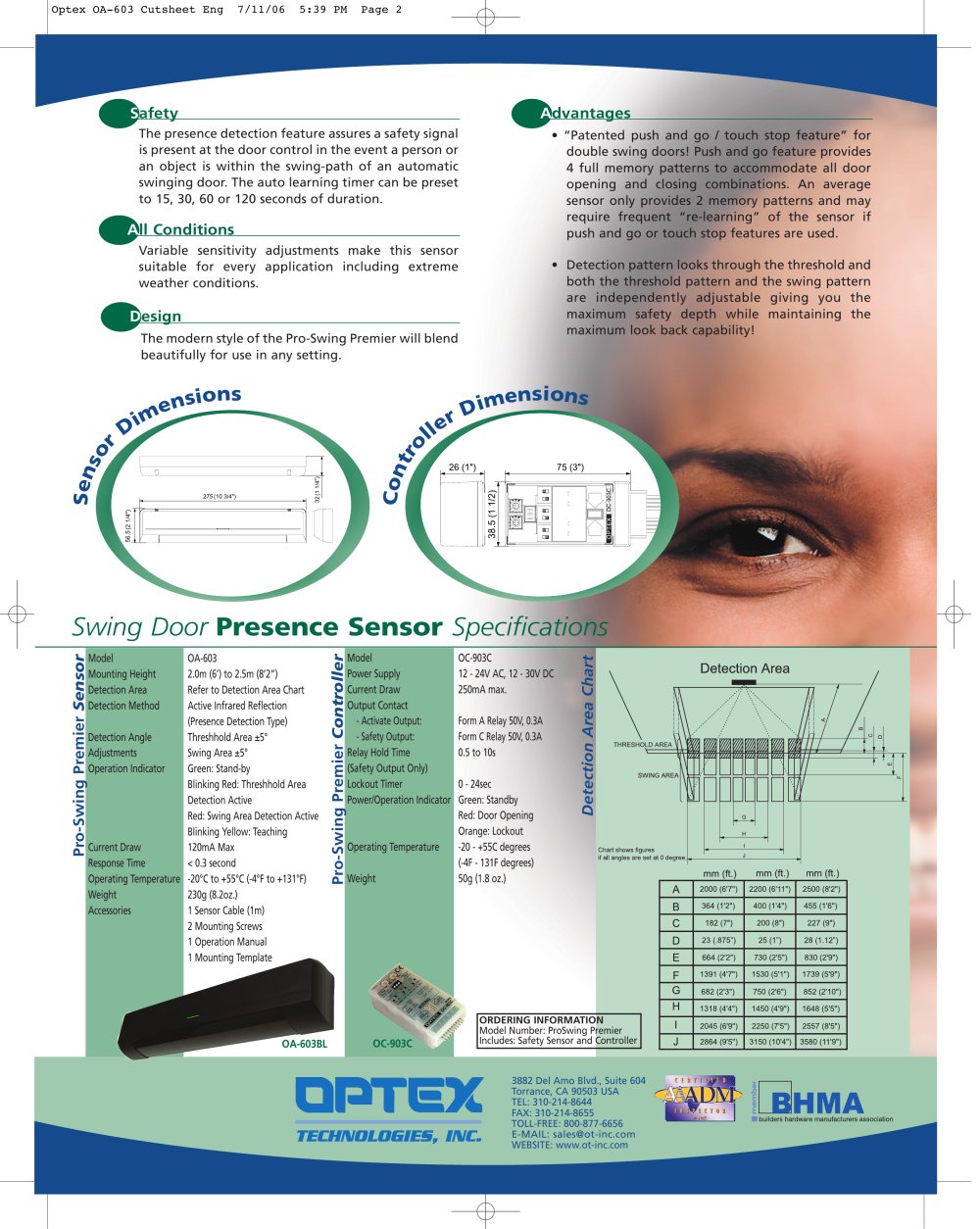

| | | Optex OA-603 Cutsheet Eng 7/11/06 5:39 PM Page 2 | | |
| | | |
| | | Safety | | |
| | | |
| | | The presence detection feature assures a safety signal is present at the door control in the event a person or an object is within the swing-path of an automatic swinging door. The auto learning timer can be preset to 15, 30, 60 or 120 seconds of duration. | | |
| | | • "Patented push and go / touch stop feature" for double swing doors! Push and go feature provides 4 full memory patterns to accommodate all door opening and closing combinations. An average sensor only provides 2 memory patterns and may require frequent "re-learning" of the sensor if push and go or touch stop features are used. • Detection pattern looks through the threshold and both the threshold pattern and the swing pattern are independently adjustable giving you the maximum safety depth while maintaining the maximum look back capability! | | |
| | | |
| | | jll Conditions | | |
| | | |
| | | Variable sensitivity adjustments make this sensor suitable for every application including extreme weather conditions. | | |
| | | |
| | | Design | | |
| | | |
| | | The modern style of the Pro-Swing Premier will blend beautifully for use in any setting. | | |
| | | |
| | | |
| | | pensions | | |
| | | c0sions | | |
| | | |
| | | |
| | | Swing Door Presence Sensor Specifications | | |
| | | |
| | | | | | | | | | Model | OA-603 | | | | Mounting Height | 2.0m (6') to 2.5m (8'2") | | | | Detection Area | Refer to Detection Area Chart | | | | Detection Method | Active Infrared Reflection | | | | | (Presence Detection Type) | | | | Detection Angle | Threshhold Area ±5° | | | | Adjustments | Swing Area ±5° | | | | Operation Indicator | Green:Stand-by | | | | ) | Blinking Red: Threshhold Area | | | | | Detection Active | | | | | Red: Swing Area Detection Active | | | | | Blinking Yellow: Teaching | | | | Current Draw | 120mA Max | | | | Response Time | < 0.3 second | | | | Operating Temperature | -20°C to +55°C (-4°F to +131°F) | | | | Weight | 230g (8.2oz.) | | | | Accessories | 1 Sensor Cable (1m) | | | | | 2 Mounting Screws | | | | | 1 Operation Manual | | | | | 1 Moui^^^t^^j^^^^— | | | | | | | | | | | | | | |
| | | Model Power Supply Current Draw Output Contact - Activate Output: - Safety Output: Relay Hold Time (Safety Output Only) Lockout Timer Power/Operation Indicator | | |
| | | OC-903C 12 - 24V AC, 12 - 30V DC 250mA max. Form A Relay 50V, 0.3A Form C Relay 50V, 0.3A 0.5 to 10s 0 - 24sec Green: Standby Red: Door Opening Orange:Lockout -20 - +55C degrees (-4F - 131F degrees) 50g (1.8 oz.) | | |
| | | 0 </) c E Q. i Ò | | |
| | | Detection Area | | |
| | | |
| | | a> E e Q. | |
| | | |
| | | |
| | | O) i 1/1 9 | | |
| | | |
| | | Operating Temperature Weight | | |
| | | Chart shows figures If all angles are set at 0 degree. | | |
| | | |
| | | mm (ft.) mm (ft.) mm (ft.) | | |
| | | |
| | | |
| | | | | | | | | | | | A | 2000 (67") | 2200 (6'11") | 2500 (8'2") | | | | B | 364 (1'2") | 400 (r4") | 455 (r6") | | | | C | 182(7") | 200 (8") | 227 (9") | | | | D | 23 (.875") | 25(1") | 28(1.12") | | | | E | 664 (2'2") | 730 (2'5") | 830 (2'9") | | | | F | 1391 (47") | 1530 (5'1") | 1739(5'9") | | | | G | 682 (2'3") | 750 (2'6") | 852 (2'10") | | | | H | 1318 (4'4") | 1450 (4'9") | 1648(5'5") | | | | 1 | 2045 (6'9") | 2250 (TS1) | 2557 (SS1) | | | | J | 2864 (9'5") | 3150 (10'4") | 3580 (11'9") | | | | | | | | | | | | | | | |
| | | |
| | | ORDERING INFORMATION Model Number: ProSwing Premier Includes: Safety sensor and Controller | | |
| | | |
| | | OC-903C | | |
| | | OA-603BL | | |
| | | |
| | | |
| | | |
| | | |
