The Optex OS-12C amplifier has screwless wiring terminals, which speeds installation. Pressng the Teach-In button automatically sets the proper senstivity and self-corrects crossed cables. One amplifier operates one or two pairs of sensor heads.

For maximum safety, the amplifier is fail-safe, which ensures that the doors remain open in case components are damaged in any way. Two LED indicators will blink at the initial setup to alert the installer if the OS-12C is improperly aligned or if sensitivity is insufficient.

^Multifunctional HosiJ

Reliable sensor heads

The Optex SH-7M C/SH-10MC sensor heads are recognized by door profesSonals worldwide for their reliability and resstance to sunlight and other interference. Quick-disconnect plugs make installation and service fast and easy. Cables are available in 2 lengths, 7m (23 feet) or 10m (33 feet).

The compact design and standard 15mm beam heads make the OS-12C compatible with any type of automatic door and easy to service or maintain. Optional mounting accessories allow surface or recessed installation. A special edition including a reflector set is optional available. This safety beam is optimal for use with any siding door, including train doors and automatic gates.

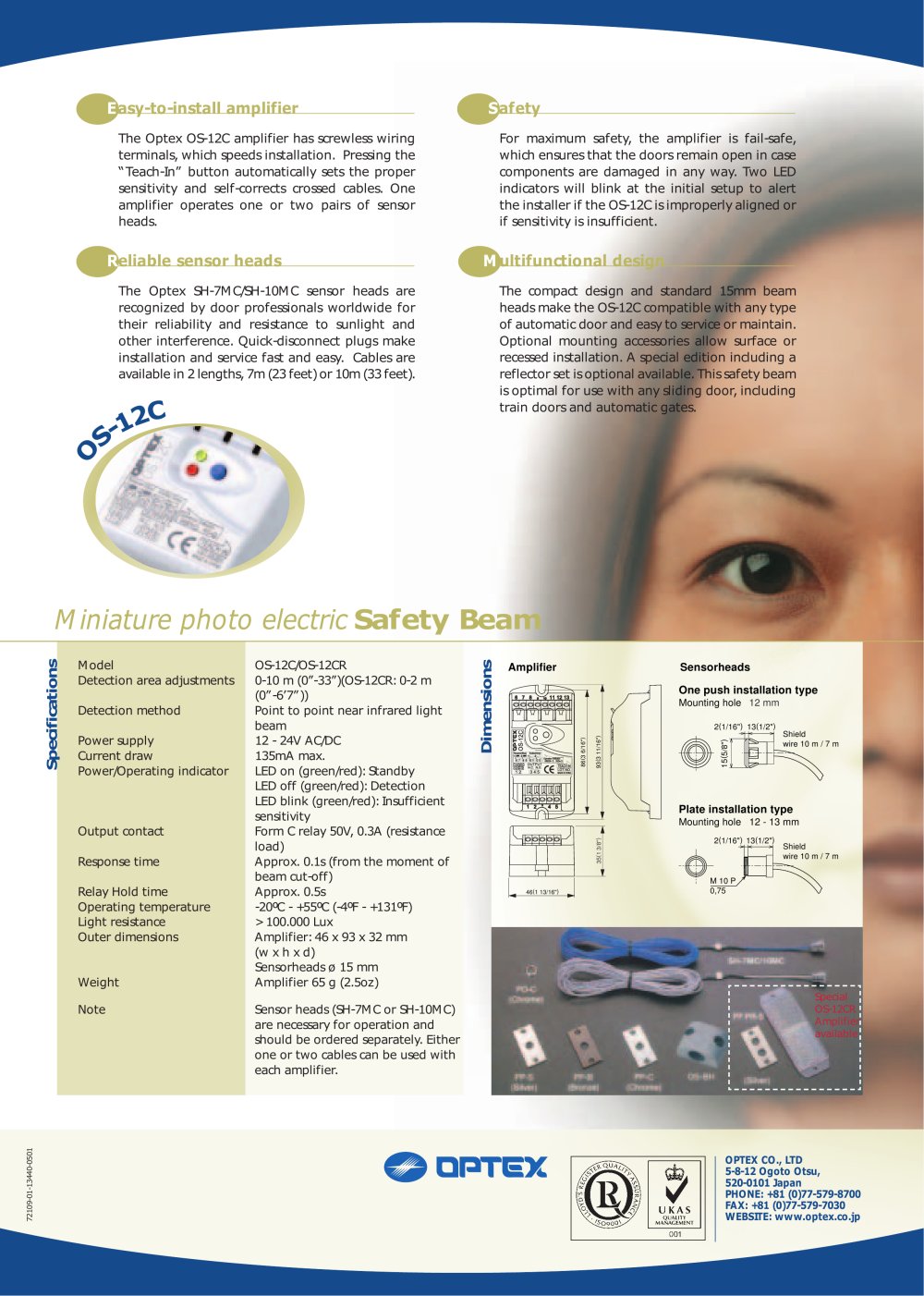

Miniature photo electric Safe Beam

OS-12C/OS-12CR

0-10 m (0 -33 )(OS-12CR: 0-2 m

(0 -6 7 ))

Point to point near infrared light beam

12 - 24V AC/DC 135mA max.

LED on (green/red): Standby LED off (green/red): Detection LED blink (green/red): Insufficient senstivity

Form C relay 50V, 0.3A (resistance load)

Approx. 0.1s (from the moment of beam cut-off) Approx. 0.5s

-20°C - +55°C (-4°F - +131°F)

> 100.000 Lux

Amplifier: 46 x 93 x 32 mm

(w x h x d)

Sensorheads 15 mm Amplifier 65 g (2.5oz)

Sensor heads (SH-7MC or SH-10MC) are necessary for operation and should be ordered separately. Either one or two cables can be used with each amplifier.

Sensorheads

One push installation type

Mounting hole 12 mm

2(1/16") 13(1/2")

Shield

wire 10 m / 7 m

Plate installation type

Mounting hole 12 - 13 mm


	1



	46(1 13/16")

2(1/16")

13(1/2")

Shield

wire 10 m / 7 m
