^ Design
Fjlexihie installation

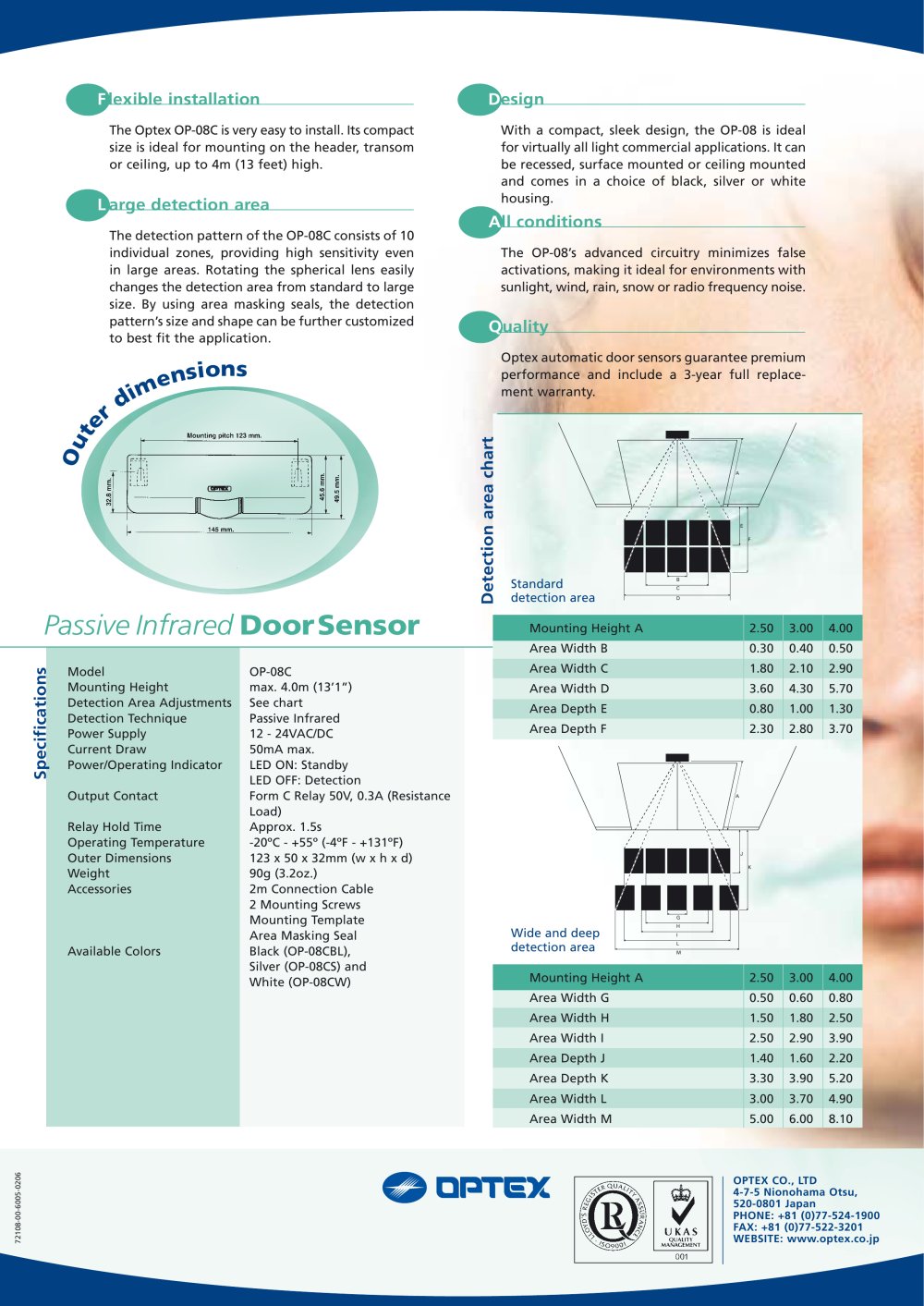

The Optex OP-08C is very easy to install. Its compact size is ideal for mounting on the header, transom or ceiling, up to 4m (13 feet) high.
With a compact, sleek design, the OP-08 is ideal for virtually all light commercial applications. It can be recessed, surface mounted or ceiling mounted and comes in a choice of black, silver or white
housing.
^"jll conditions_
The OP-08's advanced circuitry minimizes false activations, making it ideal for environments with sunlight, wind, rain, snow or radio frequency noise.
I farge detection area
The detection pattern of the OP-08C consists of 10
individual zones, providing high sensitivity even
in large areas. Rotating the spherical lens easily changes the detection area from standard to large size. By using area masking seals, the detection pattern's size and shape can be further customized to best fit the application.
^"Quality
Optex automatic door sensors guarantee premium performance and include a 3-year full replace­ment warranty.
-nsions
Standard detection area
Passive Infrared Door Sensor
Mounting Height A
2.50
3.00
4.00
Area Width B
0.30
0.40
0.50
Area Width C
1.80
2.10
2.90
Area Width D
3.60
4.30
5.70
Area Depth E
0.80
1.00
1.30
Area Depth F
2.30
2.80
3.70
OP-08C
max. 4.0m (13'1")
See chart
Passive Infrared
12 - 24VAC/DC
50mA max.
LED ON: Standby
LED OFF: Detection
Form C Relay 50V, 0.3A (Resistance
Load)
Approx. 1.5s
-20°C - +55° (-4°F - +131°F) 123 x 50 x 32mm (w x h x d) 90g (3.2oz.)
2m Connection Cable
2 Mounting Screws Mounting Template Area Masking Industrial seal Black (OP-08CBL), Silver (OP-08CS) and White (OP-08CW)
Wide and deep
detection area
Mounting Height A
2.50
3.00
4.00
Area Width G
0.50
0.60
0.80
Area Width H
1.50
1.80
2.50
Area Width I
2.50
2.90
3.90
Area Depth J
1.40
1.60
2.20
Area Depth K
3.30
3.90
5.20
Area Width L
3.00
3.70
4.90
Area Width M
5.00
6.00
8.10
