| | | etrofit Upgrade | | |
| | | afety | | |
| | | |

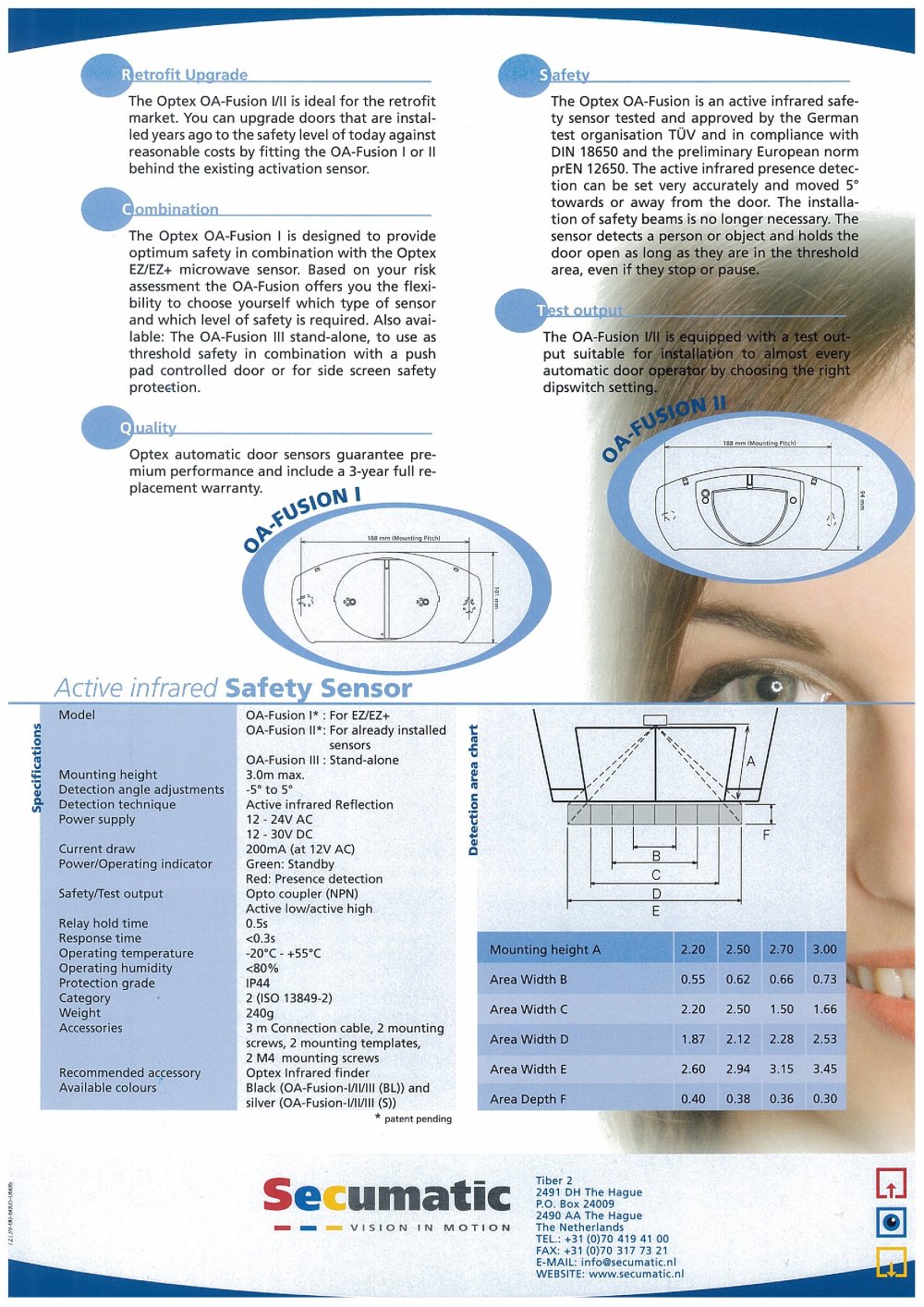

| | • | The Optex OA-Fusion l/ll is ideal for the retrofit market. You can upgrade doors that are installed years ago to the safety level of today against reasonable costs by fitting the OA-Fusion I or II behind the existing activation sensor. | | The Optex OA-Fusion is an active infrared safety sensor tested and approved by the German test organisation TÙV and in compliance with DIN 18650 and the preliminary European norm prEN 12650. The active infrared presence detection can be set very accurately and moved 5° towards or away from the door. The installation of safety beams is no longer necessary. The sensor detects a person or object and holds the door open as long as they are in the threshold area, even if they stop or pause. | | |
| | | |
| | | |
| | | combination | | |
| | | |
| | | The Optex OA-Fusion I is designed to provide optimum safety in combination with the Optex EZ/EZ+ microwave sensor. Based on your risk assessment the OA-Fusion offers you the flexibility to choose yourself which type of sensor and which level of safety is required. Also available: The OA-Fusion III stand-alone, to use as threshold safety in combination with a push pad controlled door or for side screen safety protection. | | |
| | | |
| | | 5t QUtpUtJ ^ The OA-Fusion l/ll is equipped with a test output suitable for installation to almost every automatic door operator by choosing the right dipswitch setting. | | |
| | | |
| | | |
| | | | | |
| | | uality | | |
| | | |
| | • | Optex automatic door sensors guarantee premium performance and include a 3-year full replacement warranty. Ql4 1 | | |
| | | |
| | | |
| | | | | |
| | | |
| | | OA-Fusion I* : For EZ/EZ+ OA-Fusion II*: For already installed sensors OA-Fusion III : Stand-alone 3.0m max. -5° to 5° Active infrared Reflection 12-24V AC 12-30V DC 200mA (at 12V AC) Green: Standby Opto coupler (NPN) Active low/active high 0.5s <0.3s -20°C - +55°C <80% IP44 2 (ISO 13849-2) 240g 3 m Connection cable, 2 mounting screws, 2 mounting templates, 2 M4 mounting screws Optex Infrared finder Black (OA-Fusion-l/ll/lll (BL)) and silver (OA-Fusion-l/ll/lll (S)) * patent pending | | |
| | | Mounting height Detection angle adjustments Detection technique Power supply Current draw Power/Operating indicator jafety/Test output Relay hold time Response time Operating temperature Operating humidity Protection grade Category Weight Accessories | | |
| | | | | | | | | | | | | Mounting height A | 2.20 | 2.50 | 2.70 | 3.00 | | | | Area Width B | 0.55 | 0.62 | 0.66 | 0.73 | | | | Area Width C | 2.20 | 2.50 | 1.50 | 1.66 | | | | Area Width D | 1.87 | 2.12 | 2.28 | 2.53 | | | | Area Width E | 2.60 | 2.94 | 3.15 | 3.45 | | | | Area Depth F | 0.40 | 0.38 | 0.36 | 0.30 | | | | | | | | | | | | |
| | | |
| | | Recommended accessory Available colours | | |
| | | |
| | | |
| | | |
| | | Tiber 2 2491 DH The Hague P.O. Box 24009 2490 AA The Hague The Netherlands TEL.: +31 (0)70 419 41 00 FAX: +31 (0)70 317 73 21 E-MAIL: info@secumatic.nl WEBSITE: www.secumatic.nl | | |
