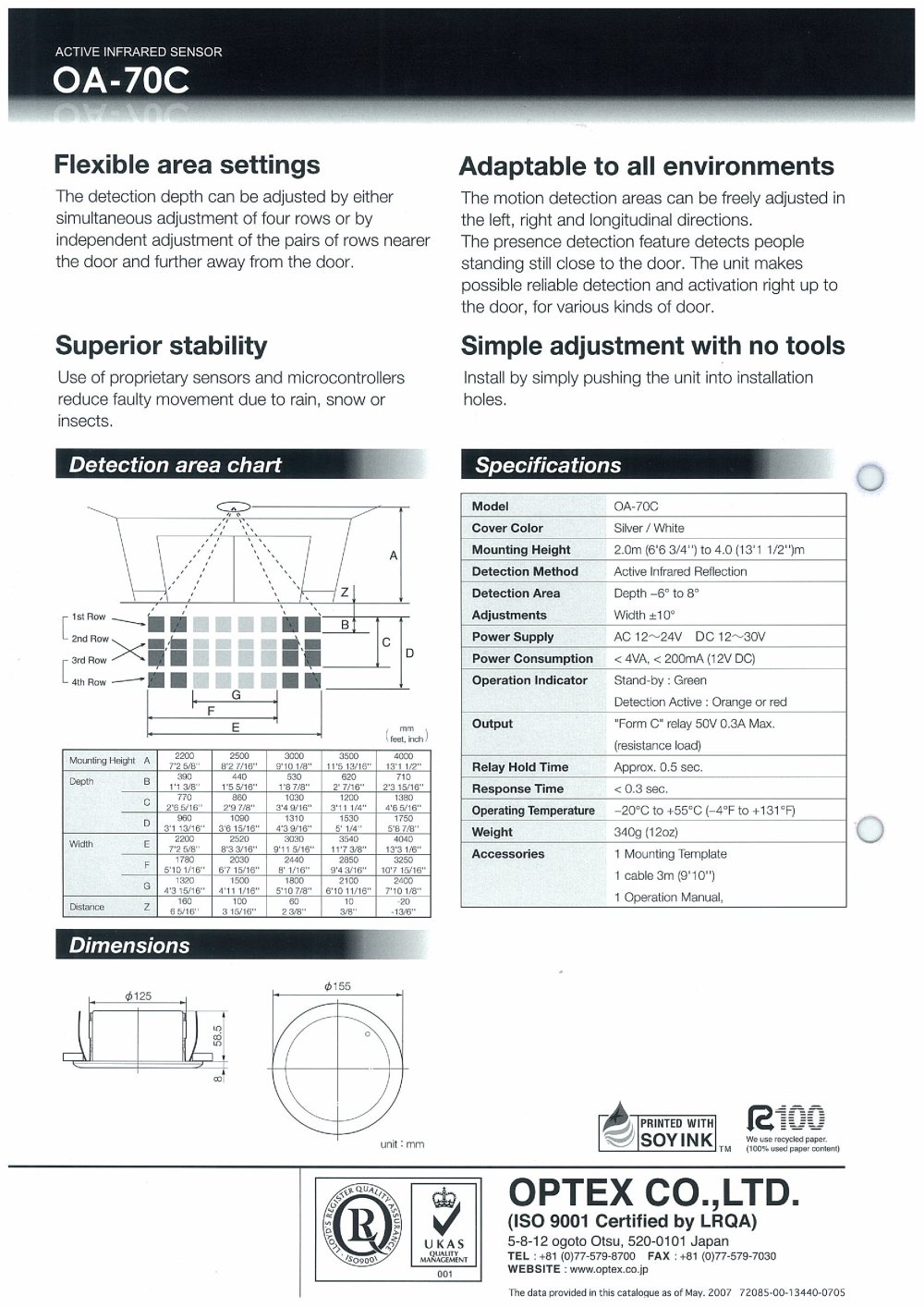

| | | OA-70C | | |
| | | |
| | | Flexible area settings The detection depth can be adjusted by either simultaneous adjustment of four rows or by independent adjustment of the pairs of rows nearer the door and further away from the door. | | |
| | | Adaptable to all environments The motion detection areas can be freely adjusted in the left, right and longitudinal directions. The presence detection feature detects people standing still close to the door. The unit makes possible reliable detection and activation right up to the door, for various kinds of door. Simple adjustment with no tools Install by simply pushing the unit into installation holes. | | |
| | | |
| | | Superior stability Use of proprietary sensors and microcontrollers reduce faulty movement due to rain, snow or insects. | | |
| | | |
| | | |
| | | Detection area chart | | |
| | | Specifications | | |
| | | |
| | | |
| | | | | | | | | | Model | OA-70C | | | | Cover Color | Silver / White | | | | Mounting Height | 2.0m (6'6 3/4") to 4.0 (13' 1 1/2")m | | | | Detection Method | Active Infrared Reflection | | | | Detection Area Adjustments | Depth -6° to 8° Width ±10° | | | | Power Supply | AC 12—24V DC12—30V | | | | Power Consumption | <4VA, < 200mA (12V DC) | | | | Operation Indicator | Stand-by : Green Detection Active : Orange or red | | | | Output | "Form C" relay 50V 0.3A Max. (resistance load) | | | | Relay Hold Time | Approx. 0.5 sec. | | | | Response Time | < 0.3 sec. | | | | Operating Temperature | -20°C to +55°C (-4°F to +131°F) | | | | Weight | 340g (12oz) | | | | Accessories | 1 Mounting Template 1 cable 3m (9'10") 1 Operation Manual, | | | | | | | | | |
| | | | | | | | | | | | | | Mounting Height A | 2200 7'2 5/8" | 2500 8'2 7/16" | 3000 9'10 1/8" | 3500 1V5 13/16" | 4000 13'1 1/2" | | | | Depth B | 390 1'1 3/8" | 440 1'5 5/16" | 530 V8 7/8" | 620 2' 7/16" | 710 2'3 15/16" | | | | C | 770 2'6 5/16" | 860 2'9 7/8" | 1030 3'4 9/16" | 1200 3'11 1/4" | 1380 4'6 5/16" | | | | D | 960 3'1 13/16" | 1090 3'6 15/16" | 1310 4'3 9/16" | 1530 5' 1/4" | 1750 5'8 7/8" | | | | Width E | 2200 7'2 5/8" | 2520 8'3 3/16" | 3030 9'11 5/16" | 3540 11V 3/8" | 4040 13'3 1/6" | | | | F | 1780 5'10 1/16" | 2030 67 15/16" | 2440 8' 1/16" | 2850 9'4 3/16" | 3250 107 15/16" | | | | G | 1320 4'3 15/16" | 1500 4'11 1/16" | 1800 5'10 7/8" | 2100 6'10 11/16" | 2400 7'10 1/8" | | | | Distance Z | ; 60 6 5/16" | 100 3 15/16" | 60 2 3/8" | 10 3/8" | -20 -13/6" | | | | | | | | | | | | | |
| | | O | | |
| | | |
| | | |
| | | |
| | | Dimensions | | |
| | | |
| | | 0155 | | |
| | | ¿125 | | |
| | | | | |
| | | |
