| | | ^"Design | | |
| | | ■p^ r ----- | | |
| | | |
| | | |
| | | The Optex OA-203C is ample to install. All the settings are mechanically adjustable with dip-switches and levers | | A very compact and slim design, available in three colors Black, slver and white. | | |
| | | |
| | | |
| | | ^BAl* conditions | | |
| | | Safe* | | |
| | | |
| | | |
| | | Snow mode and variable sensitivity adjustments make this sensor suitable for every application and even extreme weather conditions. | | |
| | | Safety is assured by the two rows of presence detection closest to the door. The sensor detects a person or object and holds the door open as long as they are near the threshold area, even if they stop or pause. | | |
| | | |
| | | |
| | | 0q3CBL | | |
| | | 03CS | | |
| | | |
| | | |

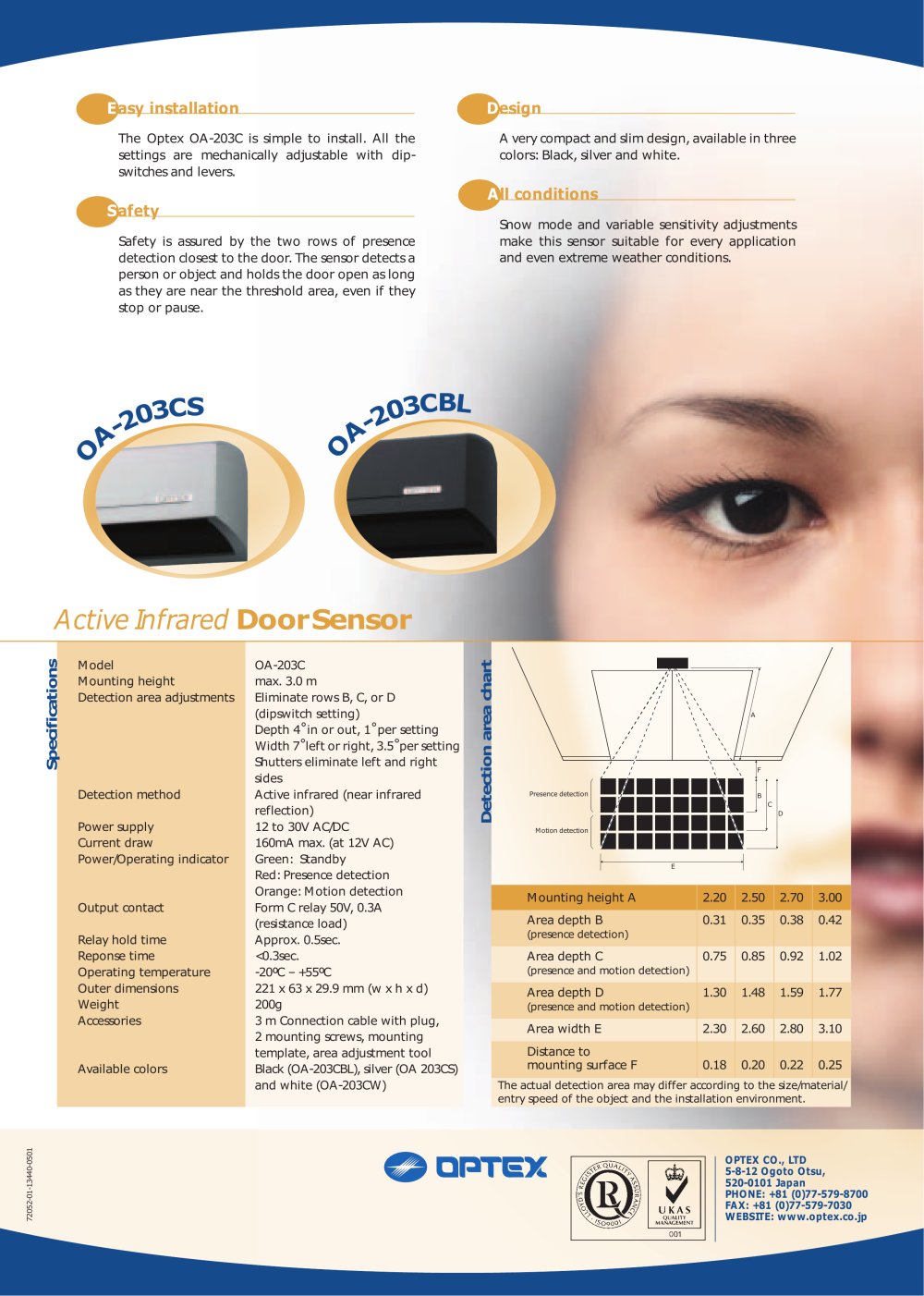

| | | Active Infrared Door Sensor | | |
| | | |
| | | | | | | | | | Model | OA-203C | | | | Mounting height | max. 3.0 m | | | | Detection area adjustments | Eliminate rows B, C, or D | | | | | (dipswitch setting) | | | | | Depth 4" in or out, 1" per setting | | | | | Width 7" left or right, 3.5" per setting | | | | | Shutters eliminate left and right | | | | | sides | | | | Detection method | Active infrared (near infrared | | | | | reflection) | | | | Power supply | 12 to 30V AC/DC | | | | Current draw | 160mA max. (at 12V AC) | | | | Power/Operating indicator | Green: Standby | | | | | Red: Presence detection | | | | | | | | | Output contact | Form C relay 50V, 0.3A | | | | | (resistance load) | | | | Relay hold time | Approx. 0.5sec. | | | | Reponse time | <0.3sec. | | | | Operating temperature | -20°C - +55°C | | | | Outer dimensions | 221 x 63 x 29.9 mm (w x h x d) | | | | Weight | 200g | | | | Accessories | 3 m Connection cable with plug, | | | | | 2 mounting screws, mounting | | | | | template, area adjustment tool | | | | Available colors | Black (OA-203CBL), slver (OA 203CS) | | | | | and white (OA-203CW) | | | | | | | | | |
| | | Motion detection | | |
| | | |
| | | | | | | | | | | | | Mounting height A | 2.20 | 2.50 | 2.70 | 3.00 | | | | Area depth B (presence detection) | 0.31 | 0.35 | 0.38 | 0.42 | | | | Area depth C (presence and motion detection) | 0.75 | 0.85 | 0.92 | 1.02 | | | | Area depth D (presence and motion detection) | 1.30 | 1.48 | 1.59 | 1.77 | | | | Area width E | 2.30 | 2.60 | 2.80 | 3.10 | | | | Distance to mounting surface F | 0.18 | 0.20 | 0.22 | 0.25 | | | | The actual detection area may differ according to the size/material/ entry speed of the object and the installation environment. | | | | | | | | | | | | |
| | | |
| | | |
| | | o m o ó co o m o CM | | |
| | | | | | | | | | Ist | V U KAS QUALITY MANAGEMENT | | | | | 001 | | | | | | | | | |
| | | OPTEX CO., LTD 5-8-12 Ogoto Otsu, 520-0101 Japan PHONE: +81 (0)77-579-8700 FAX: +81 (0)77-579-7030 WEBSITE: www.optex.co.jp | | |
| | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
