| | | ^ Ffasy Installation | | |
| | | Large detection area | | |
| | | |
| | | |
| | | The Optex OA-202C is optimal for supermarkets, airports and retail stores because it detects objects and people a safe distance from the door, even at floor level. Meets or exceeds applicable ANSI and EU standards. | | The OA-202C is simple to install and adjust. All of the settings are made easily using levers or by masking the optical lenses, to customize the pattern for any application. | | |
| | | |
| | | |
| | | ^Design | | |
| | | ^ Safety | | |
| | | |
| | | The OA-202C combines both activation and safety into one compact housing, which simplifies installation. It is available in two colors: Black and Silver. ^^^^^^^^^^H | | |
| | | |
| | | The presence zone near the threshold of the door ensures safety. The OA-202C holds open the door as long as a person or object is in the threshold area, even if they stop or pause. The presence timer can be increased for added protection. | | |
| | | |
| | | |
| | | .cnsions | | |
| | | Optex automatic door sensors guarantee premium performance and include a 3-year full replacement warranty. | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | Mounting pitch 125 mm. | | | | | _36 mm._ | | | | | | | | "-> | !» ' | | | | | - | é E | | | | / | | | \ | | | | | | | | | | | 23E | | | | | | | | | | | | | | | | | |
| | | |

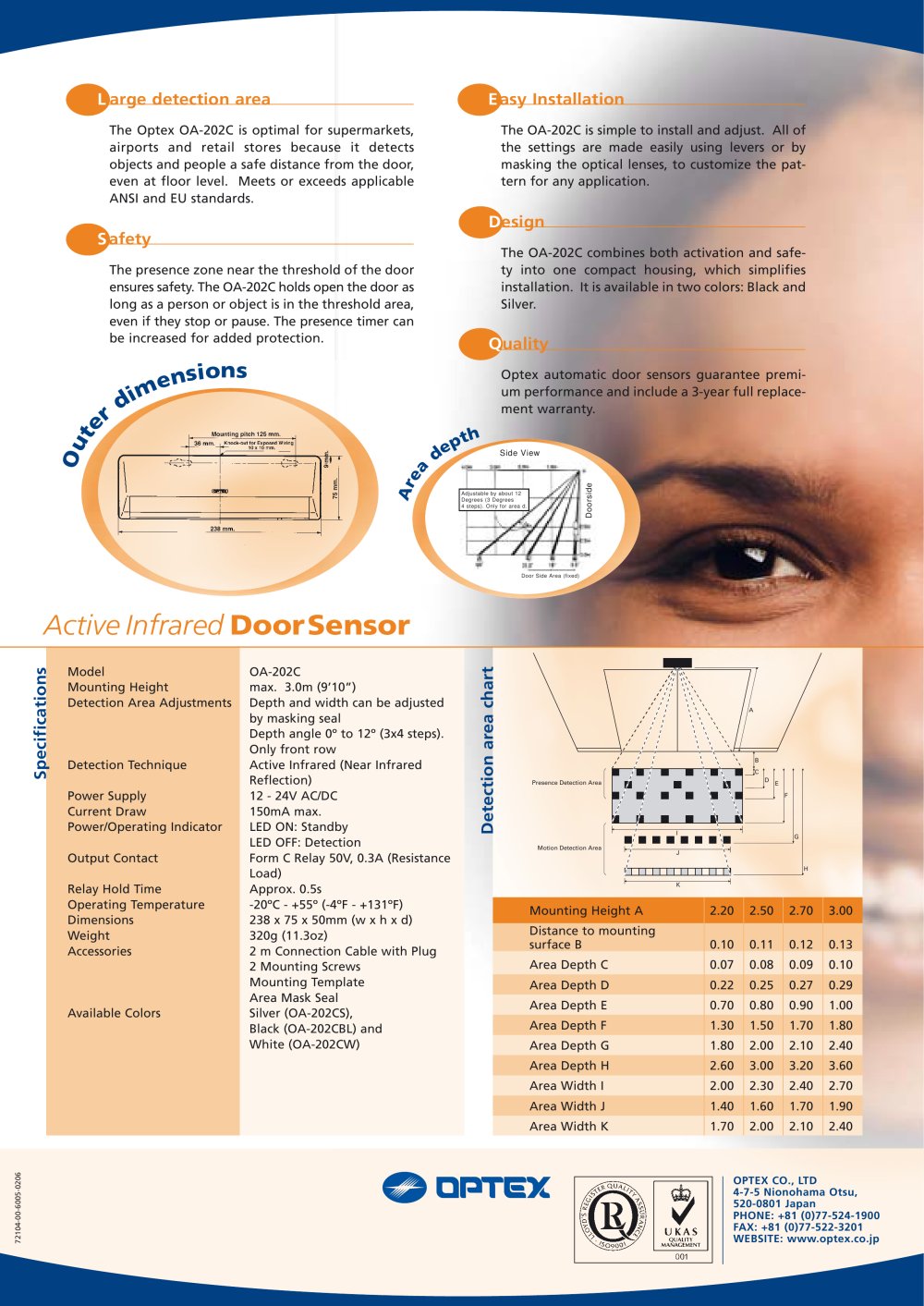

| | | Active Infrared Door Sensor | | |
| | | |
| | | OA-202C max. 3.0m (9'10") Depth and width can be adjusted Depth angle 0° to 12° (3x4 steps). Only front row Active Infrared (Near Infrared Reflection) 12 - 24V AC/DC 150mA max. LED ON: Standby LED OFF: Detection Form C Relay 50V, 0.3A (Resistance Load) Approx. 0.5s -20°C - +55° (-4°F - +131°F) 238 x 75 x 50mm (w x h x d) 320g (11.3oz) 2 m Connection Cable with Plug 2 Mounting Screws Mounting Template Area Mask Seal Silver (OA-202CS), Black (OA-202CBL) and White (OA-202CW) | | |
| | | | | |
| | | |
| | | | | |
| | | |
| | | G | | |
| | | |
| | | | | |
| | | |
| | | H | | |
| | | »..............* | | |
| | | |
| | | |
| | | K | | |
| | | |
| | | | | | | | | | | | | Mounting Height A | 2.20 | 2.50 | 2.70 | 3.00 | | | | Distance to mounting surface B | 0.10 | 0.11 | 0.12 | 0.13 | | | | Area Depth C | 0.07 | 0.08 | 0.09 | 0.10 | | | | Area Depth D | 0.22 | 0.25 | 0.27 | 0.29 | | | | Area Depth E | 0.70 | 0.80 | 0.90 | 1.00 | | | | Area Depth F | 1.30 | 1.50 | 1.70 | 1.80 | | | | Area Depth G | 1.80 | 2.00 | 2.10 | 2.40 | | | | Area Depth H | 2.60 | 3.00 | 3.20 | 3.60 | | | | Area Width I | 2.00 | 2.30 | 2.40 | 2.70 | | | | Area Width J | 1.40 | 1.60 | 1.70 | 1.90 | | | | Area Width K | 1.70 | 2.00 | 2.10 | 2.40 | | | | | | | | | | | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
