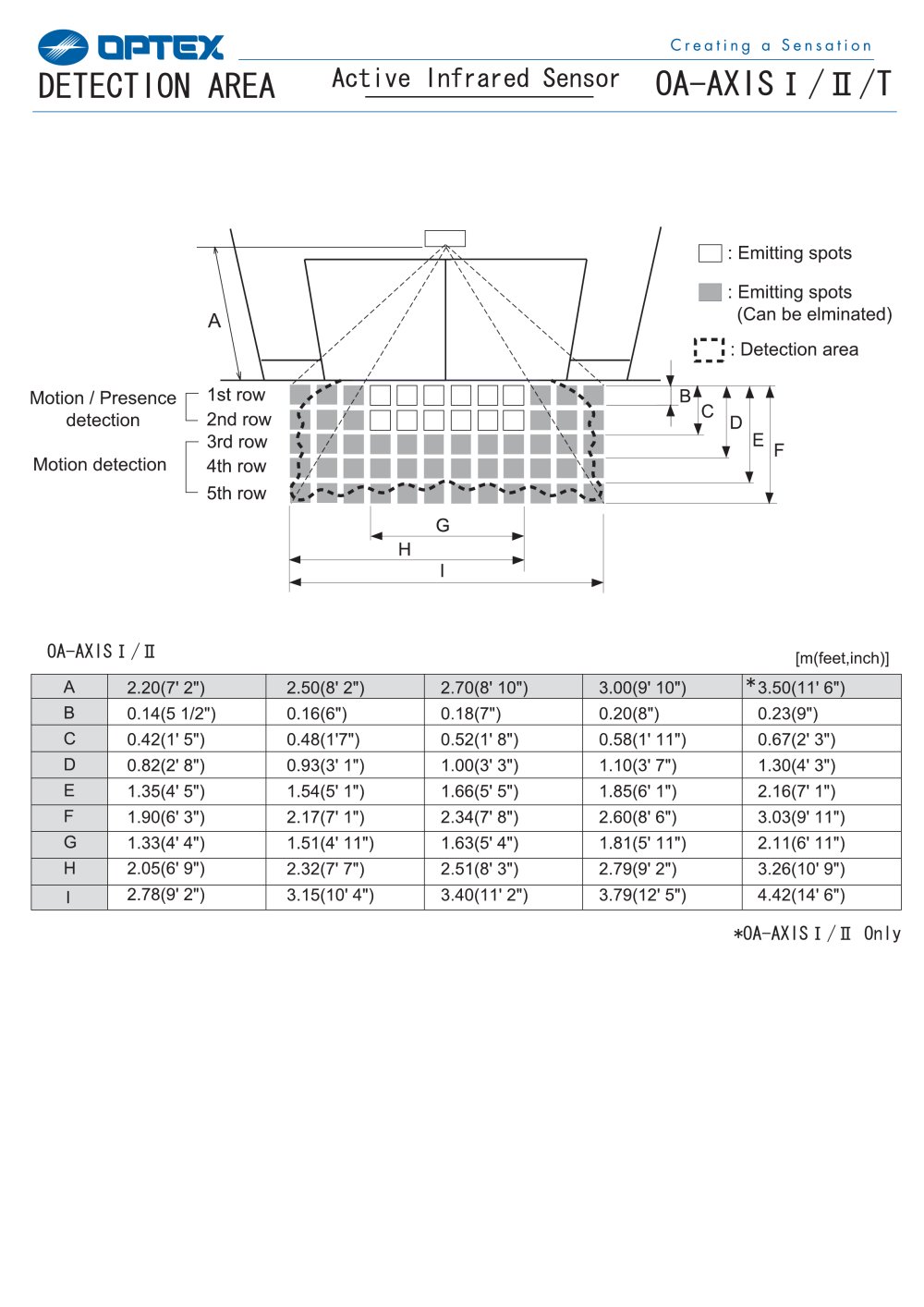

□PTEX _ DETECTION AREA Creating a Sen Mon Active Infrared Sensor OA-AXIS I / II/T I | : Emitting spots ■ : Emitting spots (Can be elminated) !""! : Dtection area Motion / Prsence r Istrow S /[ d驩tection L 2nd row ■ ■■ □ □ □ □ □□\ X □ □□Ml ■ ■■I V ■ / Motion dtection 4th row / - 5th row H OA-AXISi/n [m(feet,inch)] A 2.20(7" 2") 2.50(8' 2") 2.70(8' 10") 3.00(9' 10") *3.50(11'6") B 0.14(5 1/2") 0.16(6") 0.18(7") 0.20(8") 0.23(9") c 0.42(1" 5") 0.48(17") 0.52(1'8") 0.58(1' 11") 0.67(2' 3") D 0.82(2" 8") 0.93(3' 1") 1.00(3' 3") 1.10(3' 7") 1.30(4' 3") E 1.35(4' 5") 1.54(5' 1") 1.66(5' 5") 1.85(6' 1") 2.16(7' 1") F 1.90(6' 3") 2.17(7' 1") 2.34(7' 8") 2.60(8' 6") 3.03(9' 11") G 1.33(4' 4") 1.51(4' 11") 1.63(5' 4") 1.81(5' 11") 2.11(6' 11") H 2.05(6' 9") 2.32(7' 7") 2.51(8' 3") 2.79(9' 2") 3.26(10' 9") 1 2.78(9' 2") 3.15(10' 4") 3.40(11" 2") 3.79(12' 5") 4.42(14' 6") *0A-AXISI/n Only

OA-AXIS
  1. P. 1

  2. P. 2

    Creating a Sensation SPECIFICATIONS Active Infrared Sensor OA-AXIS 1/1 Model Cover color Mounting height Dtection area Dtection method Depth angle adjustment...
  3. P. 3

    CreaMng a Sensation SPECIFICATIONS Active lnfrared Sensor OA-AXIS T Model Cover color Mounting height Dtection area Dtection method Depth angle adjustment...
  4. P. 4

    Creating a Sensation OUTER DIMENS IONS ActiveInfrared Sensor QA~AXIS I / II/T 267(10 1/2") 125(4 15/16") UNIT:mm(inch)
