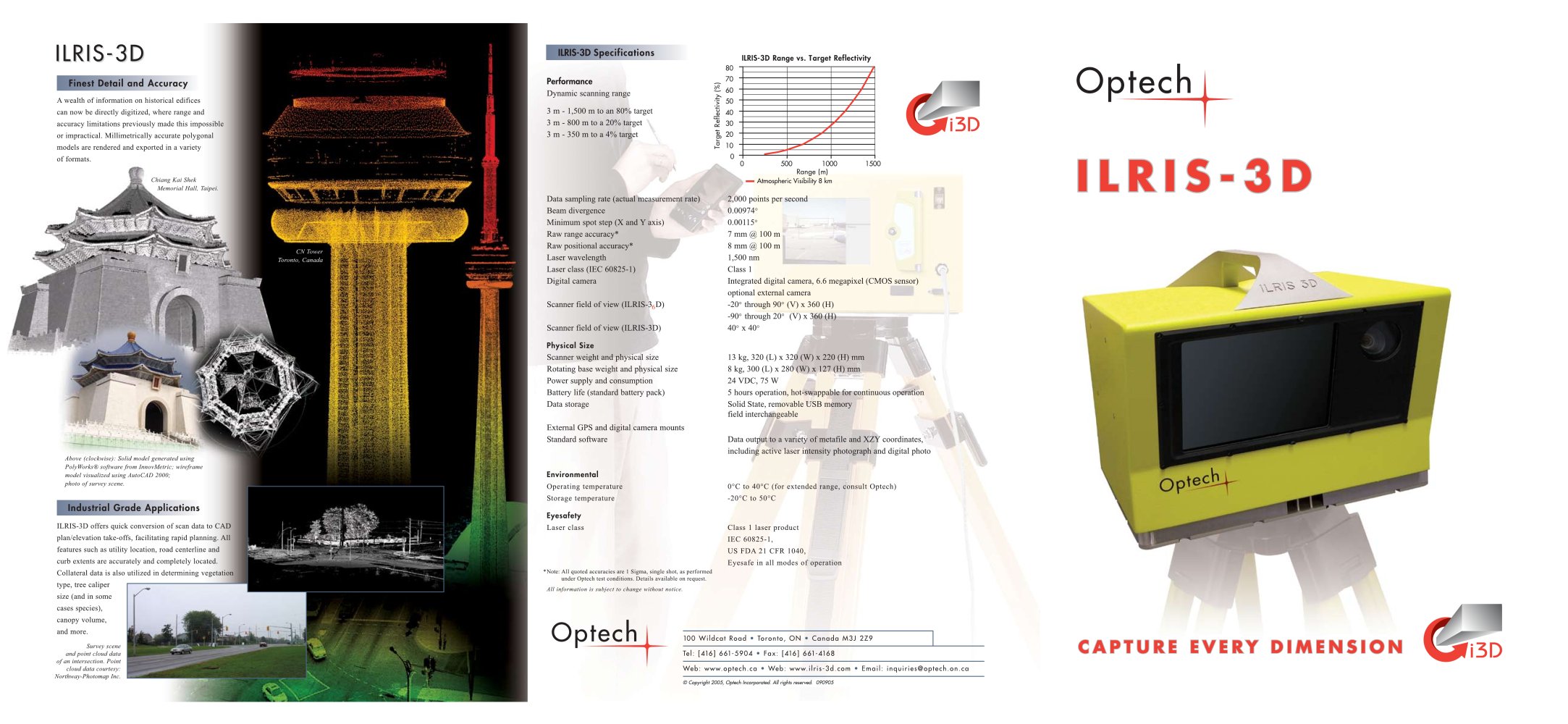

| | | ILRIS-3D | | |
| | | ILRIS-3D Specifications Performance Dynamic scanning range 3 m - 1,500 m to an 80% target 3 m - 800 m to a 20% target 3 m - 350 m to a 4% target | | |
| | | ILRIS-3D Range vs. Target Reflectivity | | |
| | | |
| | | |
| | | Optech | | |
| | | Finest Detail and Accuracy A wealth of information on historical edifices can now be directly digitized, where range and accuracy limitations previously made this impossible or impractical. Millimetrically accurate polygonal models are rendered and exported in a variety of formats. | | |
| | | |
| | | |
| | | ILRIS-3D | | |
| | | 500 1000 Range (m) Atmospheric Visibility 8 km | | 1500 | | |
| | | |
| | | |
| | | |
| | | |
| | | Data sampling rate (actual measurement rate) Beam divergence Minimum spot step (X and Y axis) Raw range accuracy* Raw positional accuracy* Laser wavelength Laser class (IEC 60825-1) Industrial digital camera Scanner field of view (ILRIS-3D) Physical Size Scanner weight and physical size Rotating base weight and physical size Psu and consumption Battery life (standard battery pack) Data storage | | 2,000 points per second 0.00974° 0.00115° 7 mm @ 100 m 8 mm @ 100 m 1,500 nm Class 1 Integrated digital camera, 6.6 megapixel (CMOS sensor) optional external camera -20° through 90° (V) x 360 (H) -90° through 20° (V)x 360(H) 40° x 40° | | |
| | | |
| | | 13 kg, 320 (L) x 320 (W) x 220 (H) mm 8 kg, 300 (L) x 280 (W) x 127 (H) mm 24 VDC, 75 W 5 hours operation, hot-swappable for continuous operation Solid State, removable USB memory field interchangeable Data output to a variety of metafile and XZY coordinates, including active laser intensity photograph and digital photo | | |
| | | |
| | | |
| | | Environmental Operating temperature Storage temperature Eyesafety Laser class | | |
| | | 0°C to 40°C (for extended range, consult Optech) -20°C to 50°C | | |
| | | |
| | | LLRIS-3D offers quick conversion of scan data to CAD plan/elevation take-offs, facilitating rapid planning. Alll features such as utility location, road centerline and curb extents are accurately and completely located. I Collateral data is also utilized in determining vegetation type, tree caliper | | |
| | | Class 1 laser product IEC 60825-1, US FDA 21 CFR 1040, Byesafe in all modes of operation | | |
| | | |
| | | |
| | | 'Note: All quoted accuracies are 1 Sigma, single shot, as performed under Optech test conditions. Details available on request. All information is subject to change without notice. | | |
| | | |
| | | |
| | | size (and in some cases species), canopy volume, and more. Survey scene and point cloud data of an intersection. Point cloud data courtesy: Northway-Photomap Inc. | | |
| | | Optech | | |
| | | 100 Wildcat Road • Toronto, ON • Canada M3J 219 | | |
| | | CAPTURE EVERY DIMENSION | | |
| | | |
| | | |
| | | Tel: [416] ÓÓ1-5904 • Fax: [416] 661-4168 | | |
| | | |
| | | |
| | | Web: www.optech.ca * Web: www.ilris-3d.com * Email: ¡nquines@optech.on.ca ® Copyright2005, Optoch Incorporated. Allrights reserved. 090905 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
