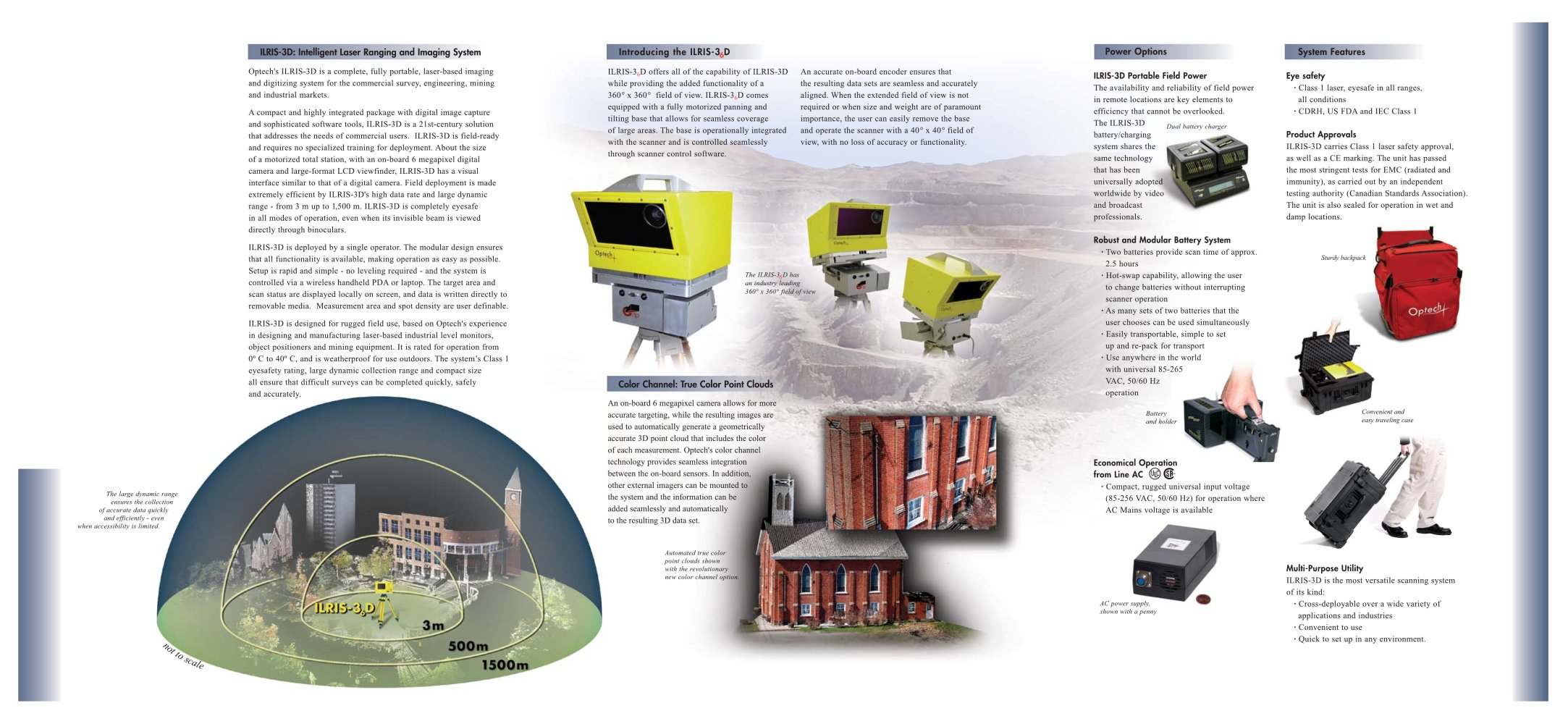

ILRIS-3D: Intelligent Laser Ranging and Imaging System
Optech's ILRIS-3D is a complète, fully portable, laser-based imaging and digitizing System for the commercial survey, engineering, mining and industrial markets.
A compact and highly integrated package with digital image capture and sophisticated software tools, ILRIS-3D is a 21st-century solution that addresses the needs of commercial users. ILRIS-3D is field-ready and requires no specialized training for deployment. About the size of a motorized total station, with an on-board 6 megapixel digital caméra and large-format LCD viewfinder, ILRIS-3D has a visual interface similar to that of a digital caméra. Field deployment is made extremely efficient by ILRIS-3D's high data rate and large dynamic range - from 3 m up to 1,500 m. ILRIS-3D is completely eyesafe in ail modes of opération, even when its invisible beam is viewed directly through binoculars.
ILRIS-3D is deployed by a single operator. The modular design ensures that ail functionality is available, making opération as easy as possible. Setup is rapid and simple - no leveling required - and the System is controlled via a wireless handheld PDA or laptop. The target area and scan status are displayed locally on screen, and data is written directly to removable média. Measurement area and spot density are user definable.
ILRIS-3D is designed for rugged fïeld use, based on Optech's expérience in designing and manufacturing laser-based industrial level monitors, object positioners and mining equipment. It is rated for opération from 0° C to 40° C, and is weatherproof for use outdoors. The system's Class 1 eyesafety rating, large dynamic collection range and compact size ail ensure that diffïcult surveys can be completed quickly, safely and accurately.
|
Introducing the ILRIS-36D
ILRIS-36D offers ail of the capability of ILRIS-3D while providing the added functionality of a 360° x 360° fïeld of view. ILRIS-36D cornes equipped with a fully motorized panning and tilting base that allows for seamless coverage of large areas. The base is operationally integrated with the scanner and is controlled seamlessly through scanner control software.
|
An accurate on-board encoder ensures that the resulting data sets are seamless and accurately aligned. When the extended fïeld of view is not required or when size and weight are of paramount importance, the user can easily remove the base and operate the scanner with a 40° x 40° fïeld of view, with no loss of accuracy or functionality.
|
Power Options
|
System Features
|
|||||||||
|
ILRIS-3D Portable Field Power
The availability and reliability of fïeld power in remote locations are key éléments to effïciency that cannot be overlooked.
|
Eye safety
• Class 1 laser, eyesafe in ail ranges, ail conditions ■ CDRH, US FDA and IEC Class 1
Product Approvals
ILRIS-3D carries Class 1 laser safety approval, as well as a CE marking. The unit has passed the most stringent tests for EMC (radiated and immunity), as carried out by an independent testing authority (Canadian Standards Association). The unit is also sealed for opération in wet and damp locations.
 Sturdy backpack
Convenient and easy traveling case
|
||||||||||||
|
The ILRIS-3D
|
Dual battery charger
|
||||||||||||
|
battery/charging System shares the same technology that has been universally adoptedi worldwide by video and broadcast professionals.
|
 |
||||||||||||
 |
 The ILRIS-36D has an industry leading 360° x 360° field of view
|
||||||||||||
|
Robust and Modular Battery System
• Two batteries provide scan time of approx. 2.5 hours
• Hot-swap capability, allowing the user to change batteries without interrupting scanner opération
• As many sets of two batteries that the user chooses can be used simultaneously
• Easily transportable, simple to set up and re-pack for transport
• Use anywhere in the world with universal 85-265 VAC, 50/60 Hz opération
|
|||||||||||||
|
|
Color Channel: True Color Point Clouds
An on-board 6 megapixel caméra allows for more accurate targeting, while the resulting images are j used to automatically generate a geometrically accurate 3D point cloud that includes the color of each measurement. Optech's color channel technology provides seamless intégration between the on-board sensors. In addition, other external imagers can be mounted toi the System and the information can be i added seamlessly and automatically J to the resulting 3D data set.
|
||||||||||||
|
The large dynamic range ensures the collection of accurate data quickly and efficiently - even when accessibility is limited.
|
 |
||||||||||||
|
Battery and holder
|
|||||||||||||
|
Economical Opération from Line AC ® ©
• Compact, rugged universal input voltage (85-256 VAC, 50/60 Hz) for opération where AC Mains voltage is available
 |
 |
||||||||||||
|
Automated true color point clouds shown I with the revolutionary new color channel option
|
AC power supply, shown with a penny
|
Multi-Purpose Utility
ILRIS-3D is the most versatile scanning System of its kind:
■ Cross-deployable over a wide variety of applications and industries
• Convenient to use
■ Quick to set up in any environment.
|
|||||||||||
|
|
|||||||||||||
