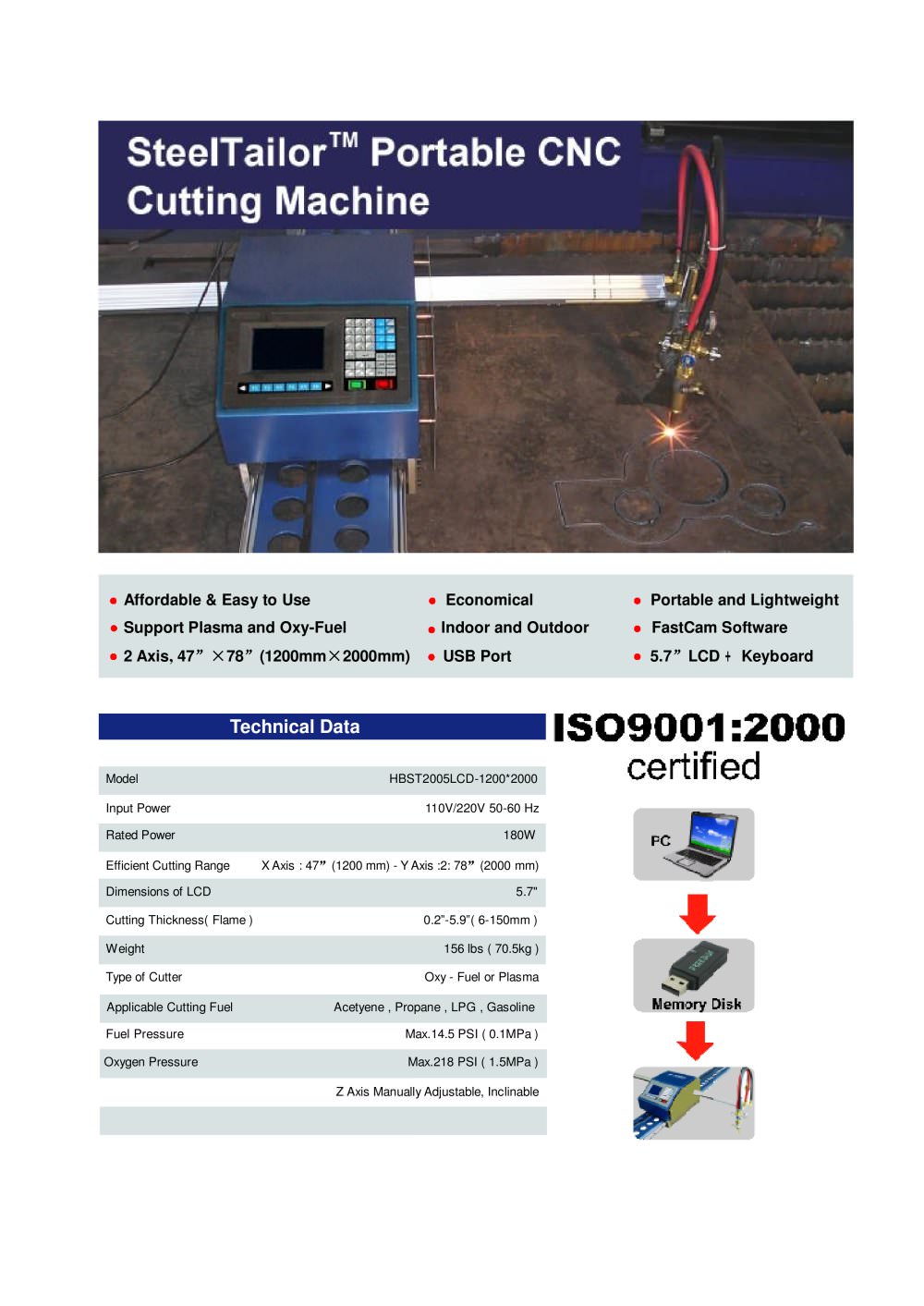

SteelTailor™ Portable Cnc cutting machine

HIS. J\

__. I

V iliil

■ ISO9001.2000

certified

Technical Data

Model

Input Power Rated Power

Efficient Cutting Range Dimensions of LCD Cutting Thickness( Flame)

Weight

Type of Cutter Applicable Cutting Fuel Fuel Pressure Oxygen Pressure

HBST2005LCD-1200*2000 110V/220V 50-60 Hz 180W

XAxis : 47" (1200 mm) - YAxis :2: 78" (2000 mm)

5.7"

0.2"-5.9"( 6-150mm )

156 lbs ( 70.5kg )

Oxy - Fuel or Plasma Acetyene , Propane , LPG , Gasoline Max.14.5 PSI (0.1MPa ) Max.218 PSI ( 1.5MPa ) Z Axis ManuallyAdjustable, Inclinable

Memory Disk
