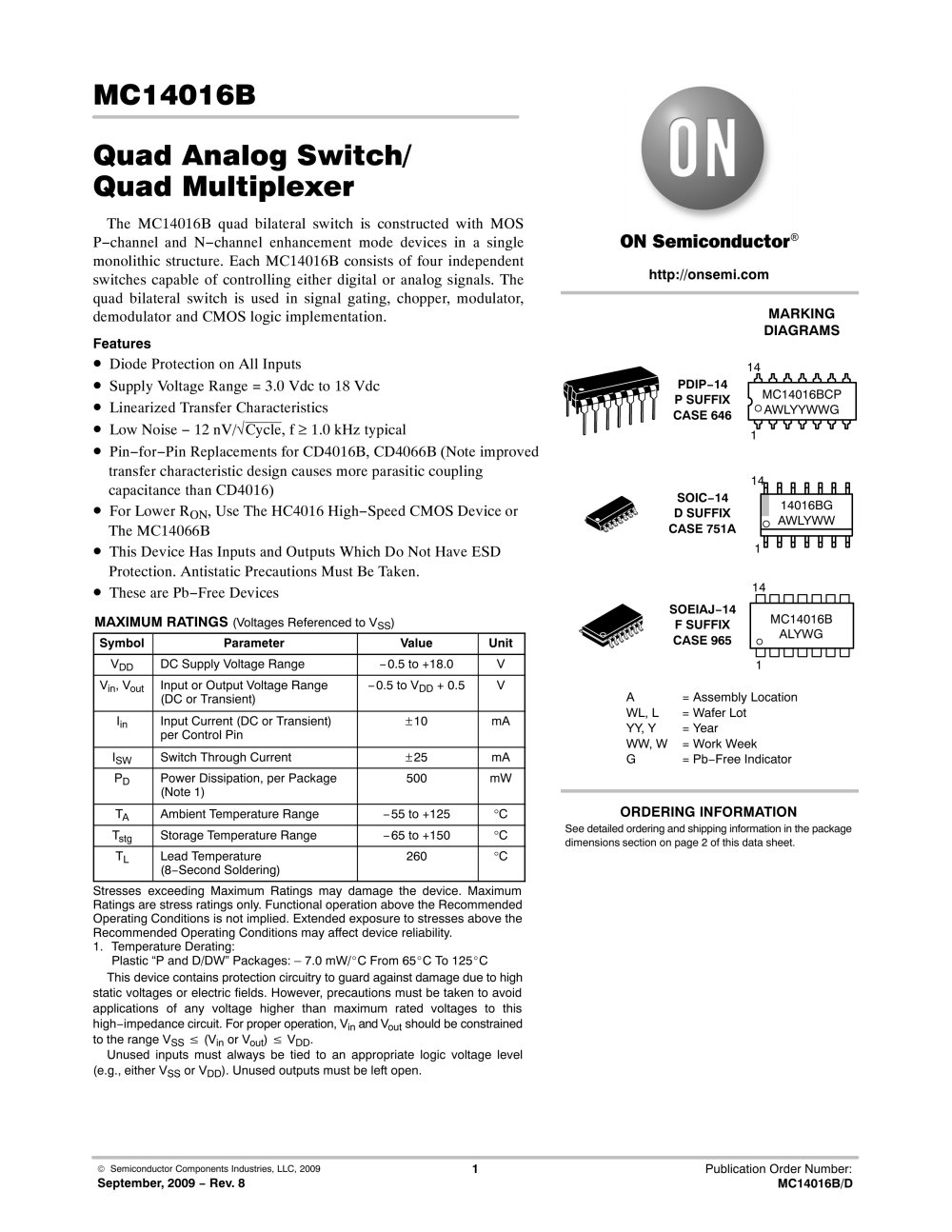

© Semiconductor Components Industries, LLC, 2009 September, 2009 - Rev. 8 1 Publication Order Number: MC14016B/D MC14016B Quad Analog Switch/ Quad Multiplexer The MC14016B quad bilateral switch is constructed with MOS P-channel and N-channel enhancement mode devices in a single monolithic structure. Each MC14016B consists of four independent switches capable of controlling either digital or analog signals. The quad bilateral switch is used in signal gating, chopper, modulator, demodulator and CMOS logic implementation. Features • Diode Protection on All Inputs • Supply Voltage Range = 3.0 Vdc to 18 Vdc • Linearized Transfer Characteristics • Low Noise - 12 nV/�ãCycle, f 1.0 kHz typical • Pin-for-Pin Replacements for CD4016B, CD4066B (Note improved transfer characteristic design causes more parasitic coupling capacitance than CD4016) • For Lower RON, Use The HC4016 High-Speed CMOS Device or The MC14066B • This Device Has Inputs and Outputs Which Do Not Have ESD Protection. Antistatic Precautions Must Be Taken. • These are Pb-Free Devices MAXIMUM RATINGS (Voltages Referenced to VSS) Symbol Parameter Value Unit VDD DC Supply Voltage Range -0.5 to +18.0 V Vin, Vout Input or Output Voltage Range (DC or Transient) -0.5 to VDD + 0.5 V Iin Input Current (DC or Transient) per Control Pin ±10 mA ISW Switch Through Current ±25 mA PD Power Dissipation, per Package (Note 1) 500 mW TA Ambient Temperature Range -55 to +125 °C Tstg Storage Temperature Range -65 to +150 °C TL Lead Temperature (8-Second Soldering) 260 °C Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability. 1. Temperature Derating: Plastic “P and D/DW” Packages: – 7.0 mW/C From 65C To 125C This device contains protection circuitry to guard against damage due to high static voltages or electric fields. However, precautions must be taken to avoid applications of any voltage higher than maximum rated voltages to this high-impedance circuit. For proper operation, Vin and Vout should be constrained to the range VSS  (Vin or Vout)  VDD. Unused inputs must always be tied to an appropriate logic voltage level (e.g., either VSS or VDD). Unused outputs must be left open. http://onsemi.com MARKING DIAGRAMS 1 14 PDIP-14 P SUFFIX CASE 646 MC14016BCP AWLYYWWG SOIC-14 D SUFFIX CASE 751A 1 14 14016BG AWLYWW A = Assembly Location WL, L = Wafer Lot YY, Y = Year WW, W = Work Week G = Pb-Free Indicator SOEIAJ-14 F SUFFIX CASE 965 1 14 MC14016B ALYWG See detailed ordering and shipping information in the package dimensions section on page 2 of this data sheet. ORDERING INFORMATION
