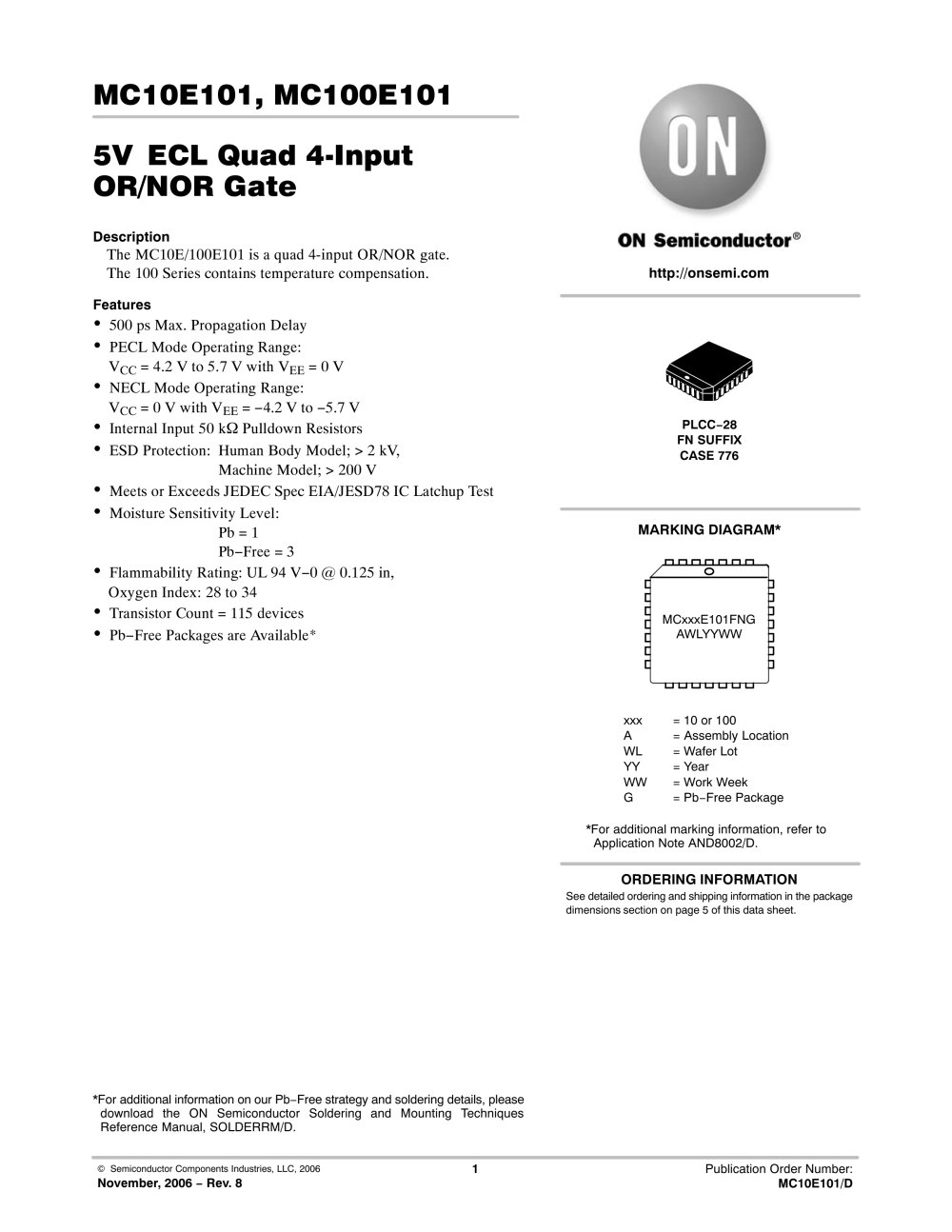

© Semiconductor Components Industries, LLC, 2006 November, 2006 - Rev. 8 1 Publication Order Number: MC10E101/D MC10E101, MC100E101 5VECL Quad 4-Input OR/NOR Gate Description The MC10E/100E101 is a quad 4-input OR/NOR gate. The 100 Series contains temperature compensation. Features • 500 ps Max. Propagation Delay • PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V • NECL Mode Operating Range: VCC = 0 V with VEE = -4.2 V to -5.7 V • Internal Input 50 k Pulldown Resistors • ESD Protection: Human Body Model; > 2 kV, Machine Model; > 200 V • Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test • Moisture Sensitivity Level: Pb = 1 Pb-Free = 3 • Flammability Rating: UL 94 V-0 @ 0.125 in, Oxygen Index: 28 to 34 • Transistor Count = 115 devices • Pb-Free Packages are Available* *For additional information on our Pb-Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. MARKING DIAGRAM* xxx = 10 or 100 A = Assembly Location WL = Wafer Lot YY = Year WW = Work Week G = Pb-Free Package PLCC-28 FN SUFFIX CASE 776 http://onsemi.com *For additional marking information, refer to Application Note AND8002/D. See detailed ordering and shipping information in the package dimensions section on page 5 of this data sheet. ORDERING INFORMATION MCxxxE101FNG AWLYYWW
