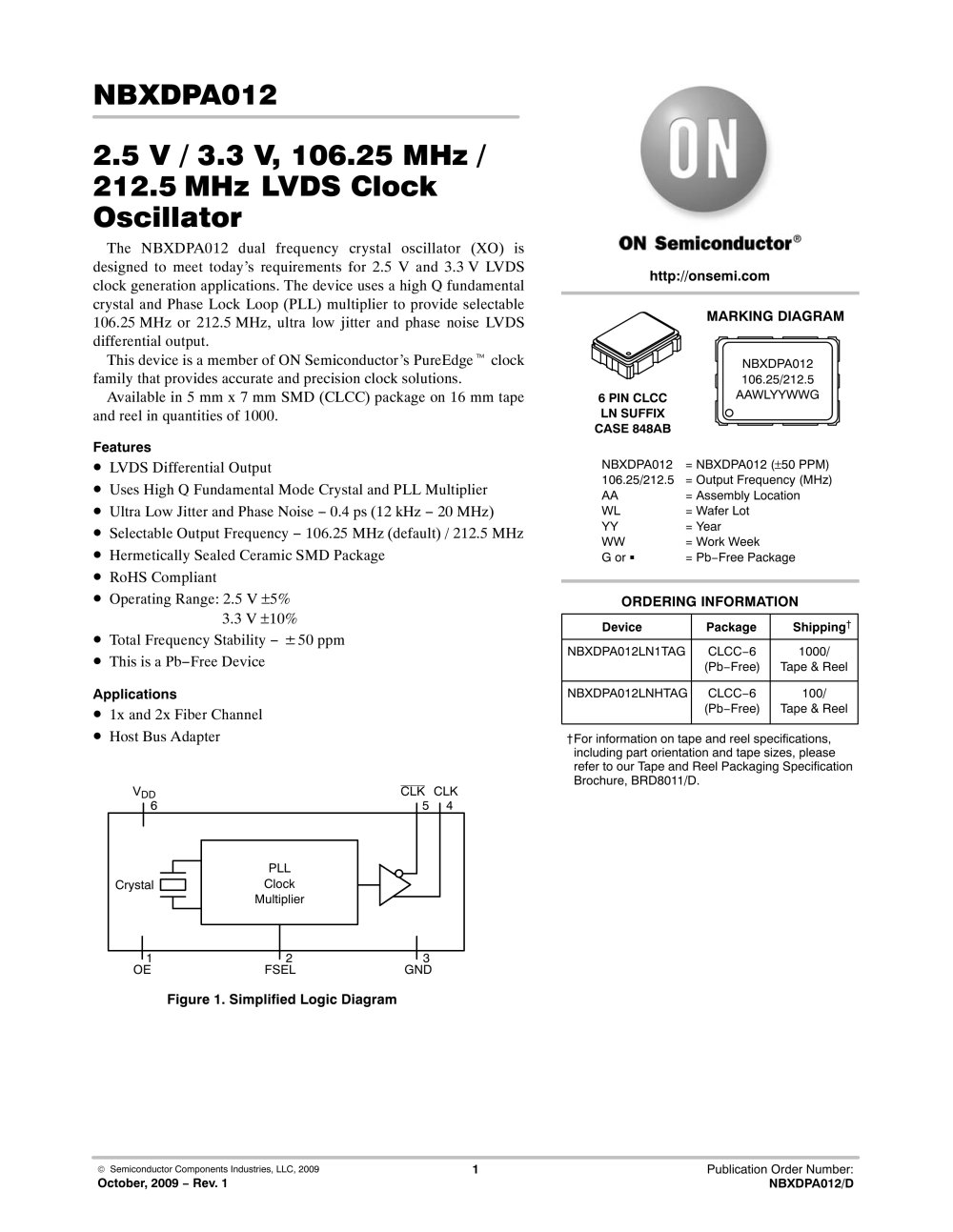

© Semiconductor Components Industries, LLC, 2009 October, 2009 - Rev. 1 1 Publication Order Number: NBXDPA012/D NBXDPA012 2.5 V / 3.3 V, 106.25 MHz / 212.5MHz LVDS Clock Oscillator The NBXDPA012 dual frequency crystal oscillator (XO) is designed to meet today’s requirements for 2.5 V and 3.3 V LVDS clock generation applications. The device uses a high Q fundamental crystal and Phase Lock Loop (PLL) multiplier to provide selectable 106.25 MHz or 212.5 MHz, ultra low jitter and phase noise LVDS differential output. This device is a member of ON Semiconductor’s PureEdge clock family that provides accurate and precision clock solutions. Available in 5 mm x 7 mm SMD (CLCC) package on 16 mm tape and reel in quantities of 1000. Features • LVDS Differential Output • Uses High Q Fundamental Mode Crystal and PLL Multiplier • Ultra Low Jitter and Phase Noise - 0.4 ps (12 kHz - 20 MHz) • Selectable Output Frequency - 106.25 MHz (default) / 212.5 MHz • Hermetically Sealed Ceramic SMD Package • RoHS Compliant • Operating Range: 2.5 V ±5% Operating Range: 3.3 V ±10% • Total Frequency Stability - 50 ppm • This is a Pb-Free Device Applications • 1x and 2x Fiber Channel • Host Bus Adapter Figure 1. Simplified Logic Diagram PLL Clock Multiplier Crystal OE FSEL GND VDD CLK CLK 6 54 1 2 3 http://onsemi.com Device Package Shipping† ORDERING INFORMATION †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification Brochure, BRD8011/D. NBXDPA012LN1TAG CLCC-6 (Pb-Free) 1000/ Tape & Reel MARKING DIAGRAM NBXDPA012 = NBXDPA012 (±50 PPM) 106.25/212.5 = Output Frequency (MHz) AA = Assembly Location WL = Wafer Lot YY = Year WW = Work Week G or  = Pb-Free Package 6 PIN CLCC LN SUFFIX CASE 848AB NBXDPA012 106.25/212.5 AAWLYYWWG NBXDPA012LNHTAG CLCC-6 (Pb-Free) 100/ Tape & Reel
