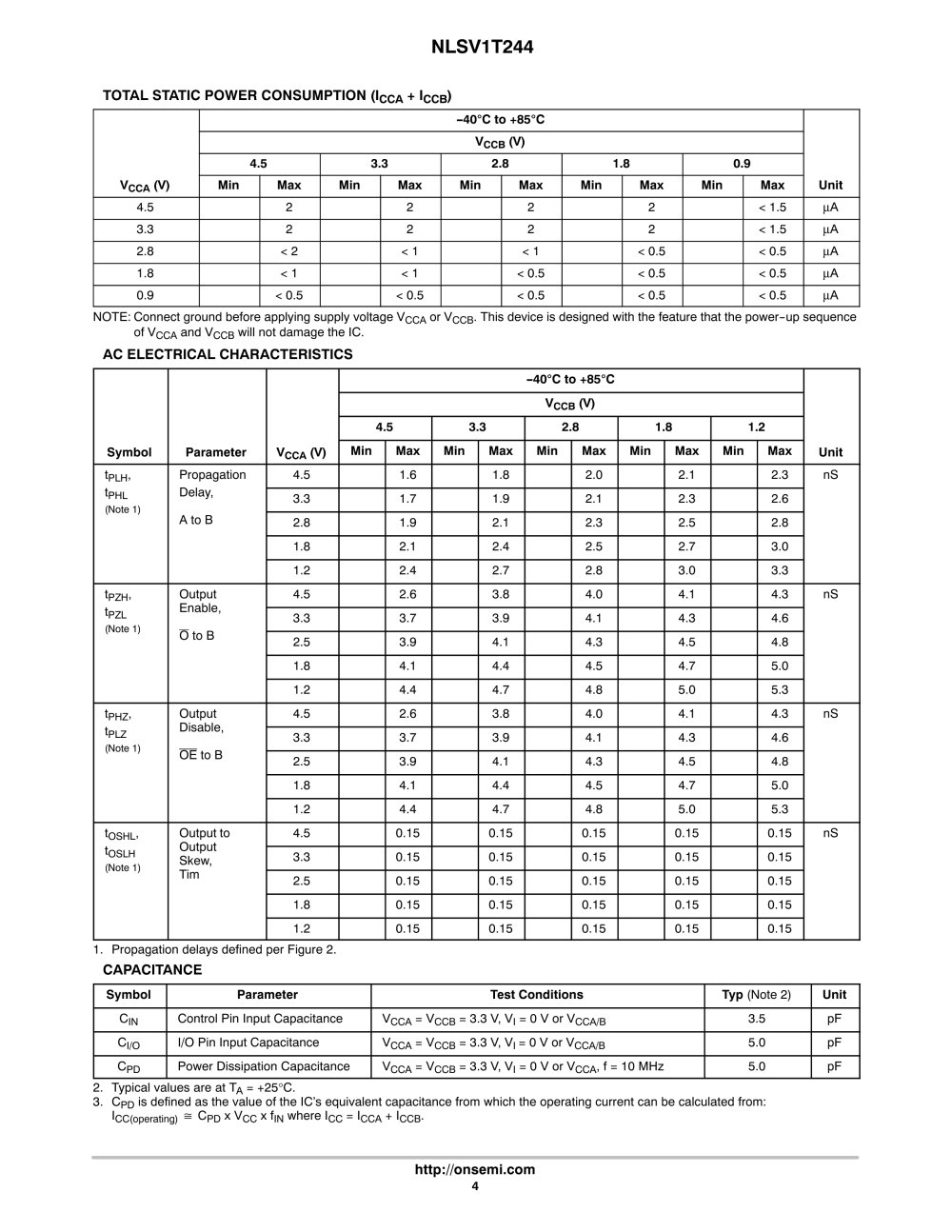

NLSV1T244

TOTAL STATIC POWER CONSUMPTION (I

CCA

+ I

CCB

)

-40 C to +85 C V
CCB (V) 4.5 3.3 2.8 1.8 0.9 V
CCA (V) Min Max Min Max Min Max Min Max Min Max Unit 4.5 2 2 2 2 < 1.5 µ A 3.3 2 2 2 2 < 1.5 µ A 2.8 < 2 < 1 < 1 < 0.5 < 0.5 µ A 1.8 < 1 < 1 < 0.5 < 0.5 < 0.5 µ A 0.9 < 0.5 < 0.5 < 0.5 < 0.5 < 0.5 µ A NOTE:Connect ground before applying supply voltage V
CCA or V
CCB . This device is designed with the feature that the power-up sequenceof V
CCA and V
CCB will not damage the IC.

AC ELECTRICAL CHARACTERISTICS

-40 C to +85 C V
CCB (V) 4.5 3.3 2.8 1.8 1.2 Symbol Parameter V
CCA (V) Min Max Min Max Min Max Min Max Min Max Unit t
PLH ,t PropagationDelay,A to B 4.5 1.6 1.8 2.0 2.1 2.3 nS
PHL(Note 1) 3.3 1.7 1.9 2.1 2.3 2.6 2.8 1.9 2.1 2.3 2.5 2.8 1.8 2.1 2.4 2.5 2.7 3.0 1.2 2.4 2.7 2.8 3.0 3.3 t
PZH ,t OutputEnable,O 4.5 2.6 3.8 4.0 4.1 4.3 nS
PZL(Note 1) 3.3 3.7 3.9 4.1 4.3 4.6 to B 2.5 3.9 4.1 4.3 4.5 4.8 1.8 4.1 4.4 4.5 4.7 5.0 1.2 4.4 4.7 4.8 5.0 5.3 t
PHZ ,t OutputDisable,OE 4.5 2.6 3.8 4.0 4.1 4.3 nS
PLZ(Note 1) 3.3 3.7 3.9 4.1 4.3 4.6 to B 2.5 3.9 4.1 4.3 4.5 4.8 1.8 4.1 4.4 4.5 4.7 5.0 1.2 4.4 4.7 4.8 5.0 5.3 t
OSHL ,t Output toOutput Skew, Tim 4.5 0.15 0.15 0.15 0.15 0.15 nS
OSLH(Note 1) 3.3 0.15 0.15 0.15 0.15 0.15 2.5 0.15 0.15 0.15 0.15 0.15 1.8 0.15 0.15 0.15 0.15 0.15 1.2 0.15 0.15 0.15 0.15 0.15 1.Propagation delays defined per Figure 2.

CAPACITANCE

Symbol Parameter Test Conditions Typ (Note 2) Unit C
IN Control Pin Input Capacitance V
CCA = V
CCB = 3.3 V, V
I = 0 V or V
CCA/B 3.5 pF C
I/O I/O Pin Input Capacitance V
CCA = V
CCB = 3.3 V, V
I = 0 V or V
CCA/B 5.0 pF C
PD Power Dissipation Capacitance V
CCA = V
CCB = 3.3 V, V
I = 0 V or V
CCA , f = 10 MHz 5.0 pF 2.Typical values are at T
A = +25 ° C.3.C
PD is defined as the value of the IC's equivalent capacitance from which the operating current can be calculated from:I
CC(operating) C
PD x V
CC x f
IN where I
CC = I
CCA + I
CCB .
