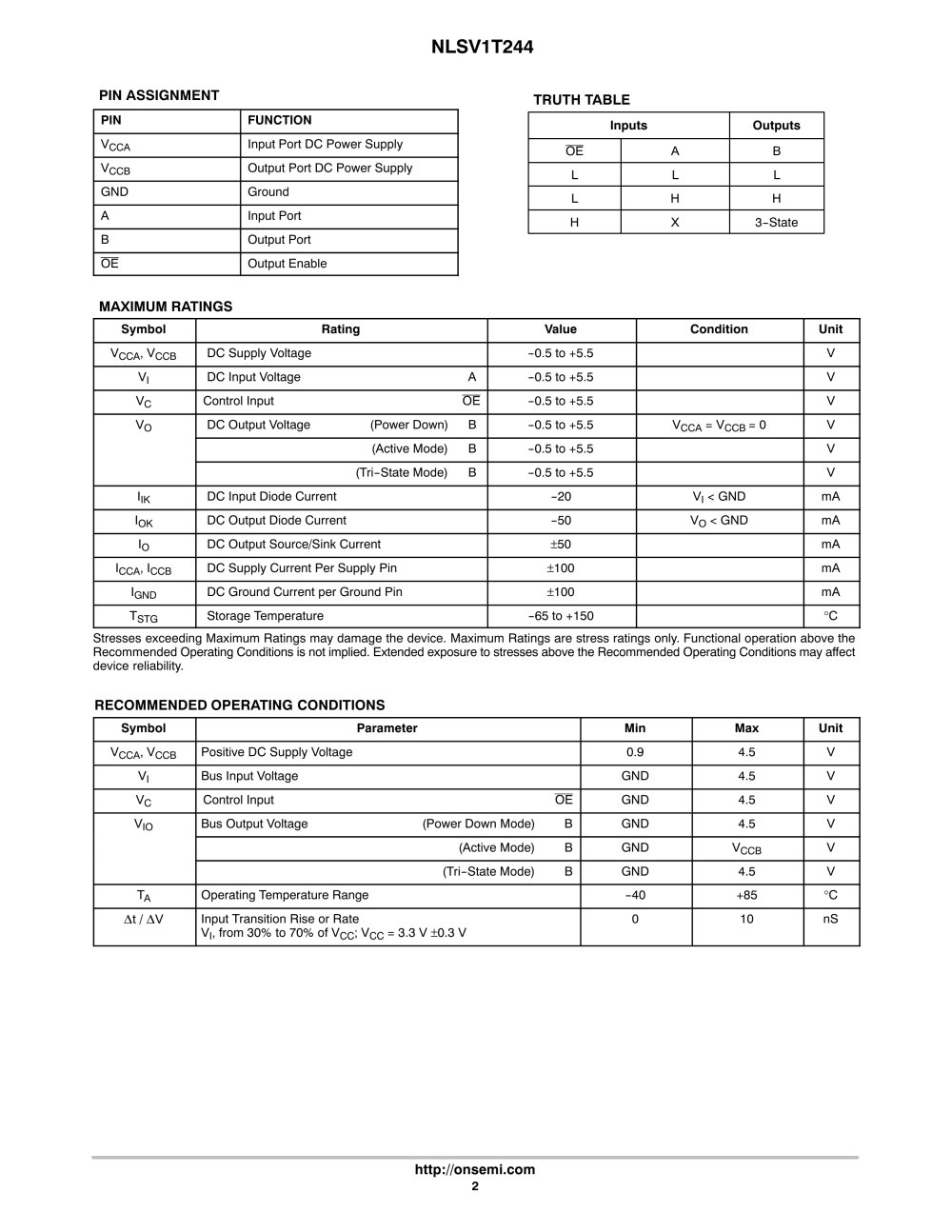

NLSV1T244

PIN ASSIGNMENT TRUTH TABLE

PIN FUNCTION InputsOutputs V
CCA Input Port Dc power supply manufacturer OE AB V
CCB Output Port DC Power Supply LLL GND Ground LHH A Input Port HX3-State B Output Port OE Output Enable

MAXIMUM RATINGS

Symbol Rating Value Condition Unit V
CCA , V
CCB DC Supply Voltage -0.5 to +5.5 V V
I DC Input VoltageA -0.5 to +5.5 V V
C Control InputOE -0.5 to +5.5 V V
O DC Output Voltage(Power Down)B -0.5 to +5.5 V
CCA = V
CCB = 0 V (Active Mode)B -0.5 to +5.5 V (Tri-State Mode)B -0.5 to +5.5 V I
IK DC Input Diode Current -20 V
I < GND mA I
OK DC Output Diode Current -50 V
O < GND mA I
O DC Output Source/Sink Current ± 50 mA I
CCA , I
CCB DC Supply Current Per Supply Pin ± 100 mA I
GND DC Ground Current per Ground Pin ± 100 mA T
STG Storage Temperature -65 to +150 ° C Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above theRecommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affectdevice reliability.

RECOMMENDED OPERATING CONDITIONS

Symbol Parameter Min Max Unit V
CCA , V
CCB Positive DC Supply Voltage 0.9 4.5 V V
I Bus Input Voltage GND 4.5 V V
C Control InputOE GND 4.5 V V
IO Bus Output Voltage(Power Down Mode)B GND 4.5 V (Active Mode)B GND V
CCB V (Tri-State Mode)B GND 4.5 V T
A Operating Temperature Range -40 +85 ° C t / V Input Transition Rise or RateV 10 nS
I , from 30% to 70% of V
CC ; V
CC = 3.3 V ± 0.3 V
