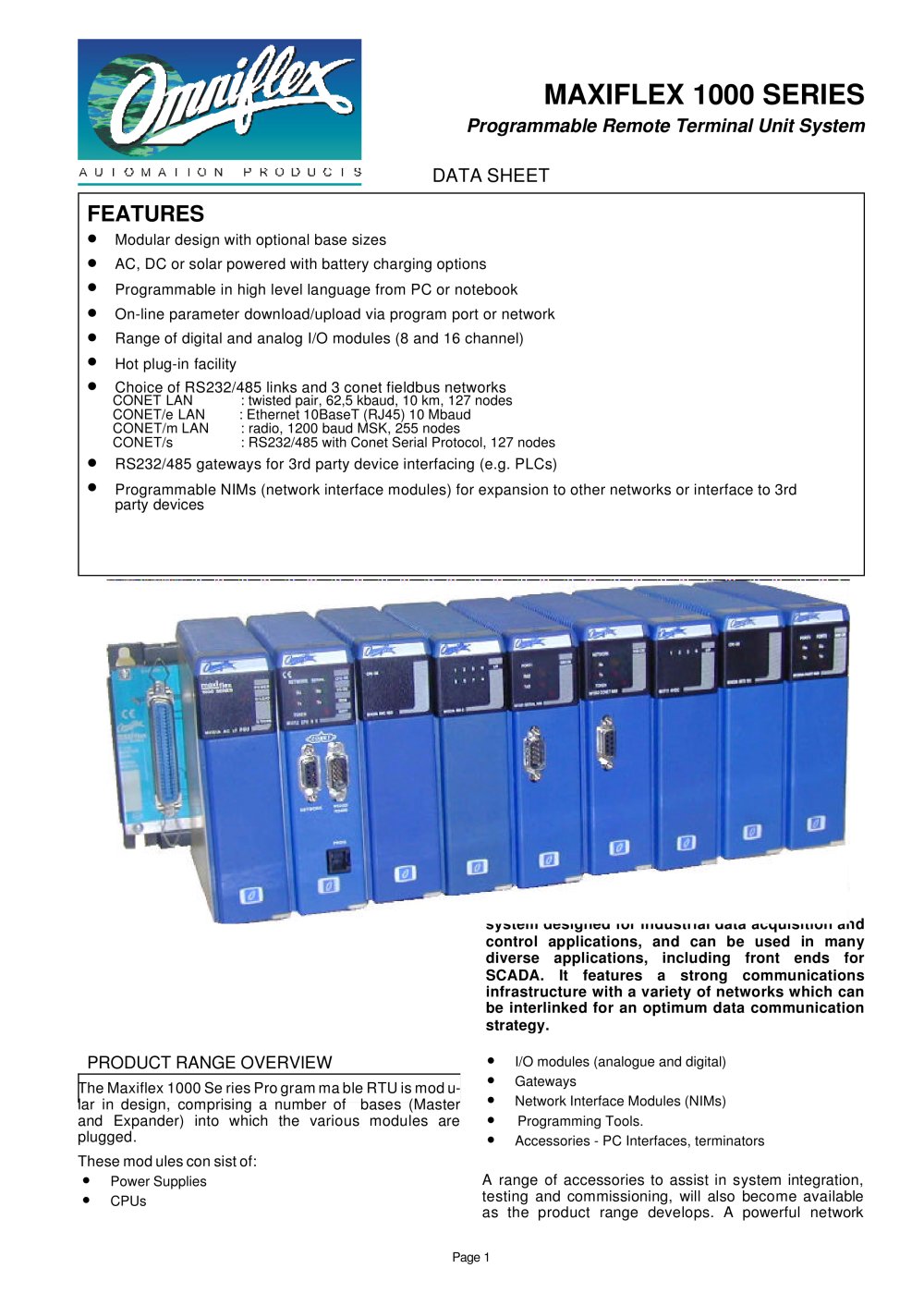

MAXIFLEX 1000 SERIES

Programmable Remote Terminal Unit System DATA SHEET

FEATURES •

Modular design with optional base sizes

•

AC, DC or solar powered with battery charging options

•

Programmable in high level language from PC or notebook

•

On-line parameter download/upload via program port or network

•

Range of digital and analog I/O modules (8 and 16 channel)

•

Hot plug-in facility

•

Choice of RS232/485 links and 3 conet fieldbus networks
CONET LAN: twisted pair, 62,5 kbaud, 10 km, 127 nodesCONET/e LAN:Ethernet 10BaseT (RJ45) 10 Mbaud CONET/m LAN: radio, 1200 baud MSK, 255 nodesCONET/s: RS232/485 with Conet Serial Protocol, 127 nodes

•

RS232/485 gateways for 3rd party device interfacing (e.g. PLCs)

•

Programmable NIMs (network interface modules) for expansion to other networks or interface to 3rdparty devices Maxiflex is a PLC and programmableRTUsystem designed for industrial data acquisition and control applications, and can be used in manydiverse applications, including front ends forSCADA. It features a strong communicationsinfrastructure with a variety of networks which can be interlinked for an optimum data communicationstrategy.

PRODUCT RANGE OVERVIEW •

I/O modules (analogue and digital) The Maxiflex 1000 Se ries Pro gram ma ble RTU is mod u -lar in de sign, com pris ing a num ber of bases (Mas terand Ex pander) into which the var i ous mod ules areplugged.These mod ules con sist of:

•

Gateways

•

Network Interface Modules (NIMs)

•

Programming Tools.

•

Accessories - PC Interfaces, terminators

•

Power Supplies A range of ac ces so ries to as sist in sys tem in te gra tion,test ing and com mis sion ing, will also be come avail ableas the prod uct range de vel ops. A pow er ful net work

•

CPUs Page1
