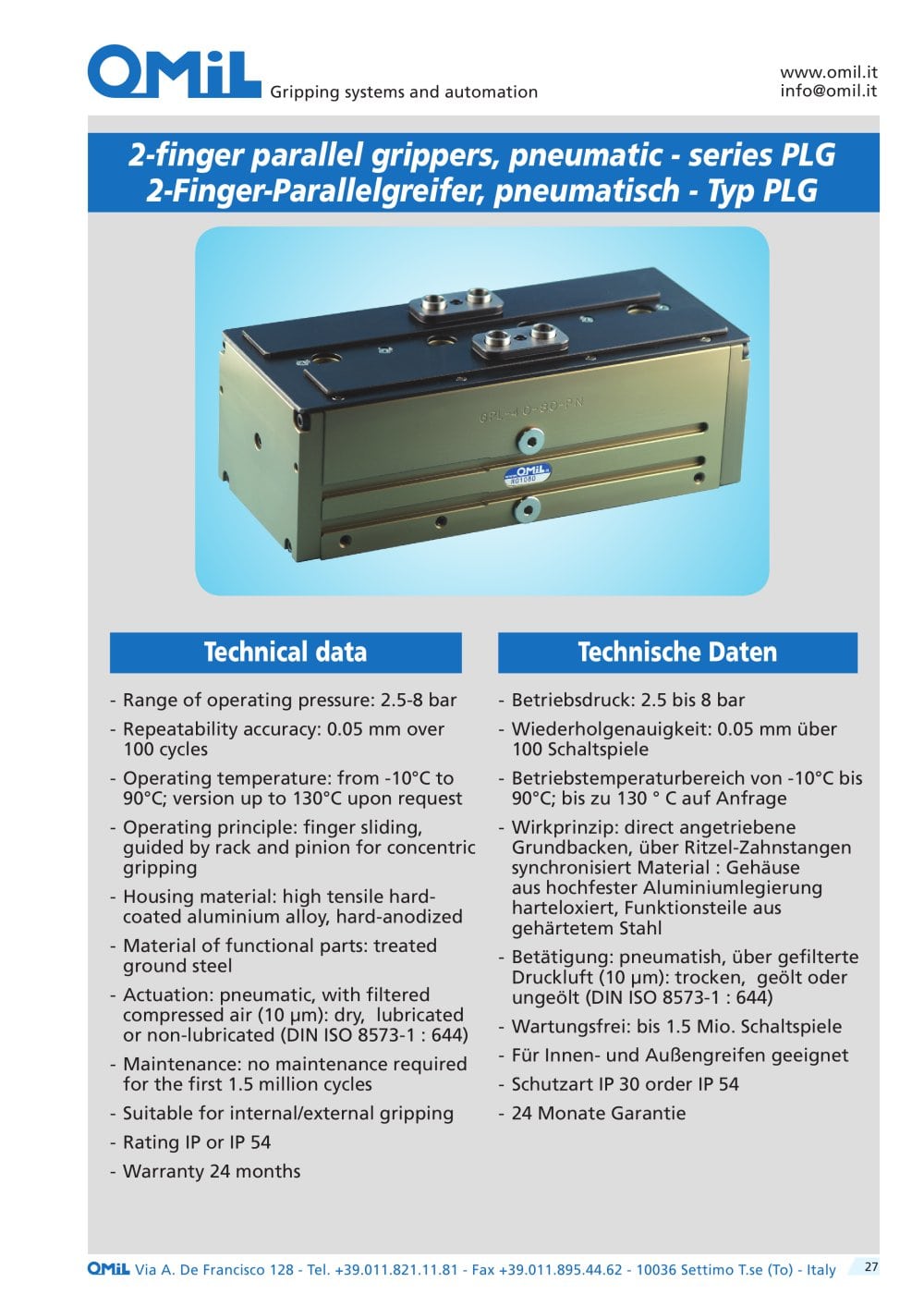

www.omil.it www.omil.it [email protected] [email protected] Gripping systems and automation Gripping systems and automation 2-finger parallel grippers, pneumatic - series PLG 2-Finger-Parallelgreifer, pneumatisch - Typ PLG Technical data Technische Daten - Range of operating pressure: 2.5-8 bar - Repeatability accuracy: 0.05 mm over 100 cycles - Wiederholgenauigkeit: 0.05 mm über 100 Schaltspiele - Operating temperature: from -10°C to 90°C; version up to 130°C upon request - Operating principle: finger sliding, guided by rack and pinion for concentric gripping - Wirkprinzip: direct angetriebene Grundbacken, über Ritzel-Zahnstangen synchronisiert Material : Gehäuse aus hochfester Aluminiumlegierung harteloxiert, Funktionsteile aus gehärtetem Stahl - Housing material: high tensile hardcoated aluminium alloy, hard-anodized - Material of functional parts: treated ground steel - Actuation: pneumatic, with filtered compressed air (10 µm): dry, lubricated or non-lubricated (DIN ISO 8573-1 : 644) - Betätigung: pneumatish, über gefilterte Druckluft (10 µm): trocken, geölt oder ungeölt (DIN ISO 8573-1 : 644) - Wartungsfrei: bis 1.5 Mio. Schaltspiele - Maintenance: no maintenance required for the first 1.5 million cycles - Für Innen- und Außengreifen geeignet - Suitable for internal/external gripping - Rating IP or IP 54 - Warranty 24 months 27 Via A. Via A. De FranciscoTel. +39.011.821.11.81 - Fax +39.011.895.44.62 - 10036 10036 Settimo T.se Italy - Italy De Francisco 128 - 128 - Tel. +39.011.821.11.81 - Fax +39.011.895.44.62 - Settimo T

www.omil.it www.omil.it [email protected] [email protected] Gripping systems and automation Gripping systems and automation 2-finger parallel grippers, pneumatic - series PLG 2-Finger-Parallelgreifer, pneumatisch - Typ PLG Via A. Via Francisco 128 - Tel. +39.011.821.11.81 - Fax +39.011.895.44.62 - 10036 10036 Settimo T.seItaly - Italy De A. De Francisco 128 - Tel. +39.011.821.11.81 - Fax +39.011.895.44.62 - Settimo T.se (To) - (To)

www.omil.it info@ (dmil.it Gripping systems and automation Minimum operating pressure 2.5 bar, max 8 bar / Betriebsdruck mindestens 2.5 bar, max 8 bar Closing and opening times are purely the times that the base jaws are in motion. Valve switching times, hose filling times, and PLC/CNC reaction times, switching sensor times are not included in the above times and must be taken into consideration when determining cycle times. SchlieB- und Offnungszeiten: sind reine Bewegungszeiten der Grundbacken bzw. - finger. Ventilschaltzeiten, Schlauchbefullungszeiten oder SPS-Reaktionszeiten sind nicht enthalten...

www.omil.it www.omil.it [email protected] [email protected] Gripping systems and automation Gripping systems and automation 2-finger parallel grippers, pneumatic - series PLG 2-Finger-Parallelgreifer, pneumatisch - Typ PLG Maintenance the gripping force Code MC (closing) Greifkrafterhaltung Version MC (Außengreifen) The mechanical gripping force maintenance devise ensures a minimum gripping force even in case of pressure drop. This act as closing force in the MC version. In additional, the gripping force maintenance devise can also be used for increasing the gripping force or for single-acting gripping...

www.omil.it info@ (dmil.it Gripping systems and automation 2-finger parallel grippers, pneumatic - series PLG 2-Finger-Parallelgreifer, pneumatisch - Typ PLG Maintenance the gripping force Code MC (closing) Greifkrafterhaltung Version MC (AuBengreifen) Minimum operating pressure 4 bar, max 6.5 bar / Betriebsdruck mindestens 4 bar, max 6.5 bar Closing and opening times are purely the times that the base jaws are in motion. Valve switching times, hose filling times, and PLC/CNC reaction times, switching sensor times are not included in the above times and must be taken into consideration when determining cycle...

Gripping systems and automation Gripping systems and automation www.omil.it www.omil.it [email protected] [email protected] 2-finger parallel grippers, pneumatic - series PLG 2-Finger-Parallelgreifer, pneumatisch - Typ PLG Dust – protection IP 54 Staubdicht – Version IP 54 The “dust-protection” option increases the degree of protection against penetrating substances. The screw connecting diagram shifts by the height of the inintermediate jaw. The finger length is still measured from the upper edge of the gripper housing. Die Option “Staubdicht” erhöht den Schutzgrad gegen eindringende Stoffe. Das Anschraubbild...

www.omil.it info@ (dmil.it Gripping systems and automation 2-finger parallel grippers, pneumatic - series PLG 2-Finger-Parallelgreifer, pneumatisch - Typ PLG Dust - protection IP 54 Staubdicht - Version IP 54 Minimum operating pressure 2.5 bar, max 6 bar / Betriebsdruck mindestens 2.5 bar, max 6 bar Finger weight in kg. / Eingenmasse in Kg. Closing and opening times are purely the times that the base jaws are in motion. Valve switching times, hose filling times, and PLC/CNC reaction times, switching sensor times are not included in the above times and must be taken into consideration when determining cycle...

www.omil.it www.omil.it [email protected] [email protected] Gripping systems and automation Gripping systems and automation 2-finger parallel grippers, pneumatic - series PLG 2-Finger-Parallelgreifer, pneumatisch - Typ PLG Maintenance the gripping force with dust cover code MC Greifkrafterhaltung Version MC (Außengreifen) mit Staubdicht The mechanical gripping force maintenance devise ensures a minimum gripping force even in case of pressure drop. This act as closing force in the MC version. In additional, the gripping force maintenance devise can also be used for increasing the gripping force or for single-acting...

www.omil.it info@ (dmil.it Gripping systems and automation ■ Maintenance the gripping force with dust cover code MC Greifkrafterhaltung Version MC (AuBengreifen) mit Staubdicht Minimum operating pressure 4 bar, max 6.5 bar / Betriebsdruck mindestens 4 bar, max 6.5 bar The “dust-protection” option increases the degree of protection against penetrating substances. The screw connecting diagram shifts by the height of the inintermediate jaw. The finger length is still measured from the upper edge of the gripper housing Die Option “Staubdicht" erhoht den Schutzgrad gegen eindringende Stoffe. Das Anschraubbild...
