| micron NanoTechnology | |||||||||||||||||||||||||||||||||||||||||||||||||

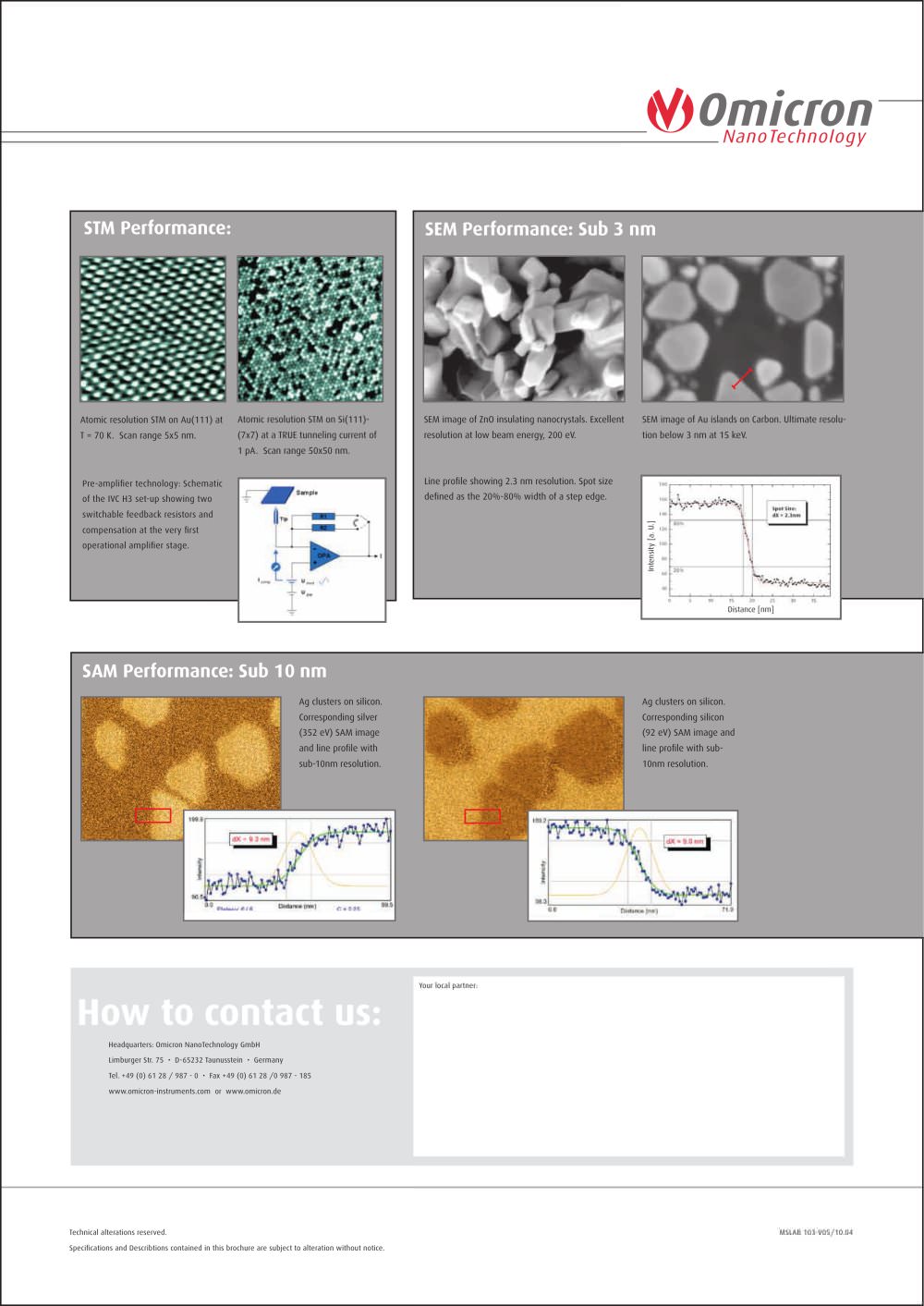

| Atomic resolution STM on Au(111) at T = 70 K. Scan range 5x5 nm. | Atomic resolution STM on Si(111)-(7x7) at a TRUE tunneling current of 1 pA. Scan range 50x50 nm. | SEM image of ZnO insulating nanocrystals. Excellent SEM image of Au islands on Carbon. Ultimate resolu-resolution at low beam energy, 200 eV. tion below 3 nm at 15 keV. | |||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||
| Line profile showing 2.3 nm resolution. Spot size defined as the 20%-80% width of a step edge. | |||||||||||||||||||||||||||||||||||||||||||||||||
| Pre-amplifier technology: Schematic of the IVC H3 set-up showing two switchable feedback resistors and compensation at the very first operational amplifier stage. | |||||||||||||||||||||||||||||||||||||||||||||||||
| Distance [nm] | |||||||||||||||||||||||||||||||||||||||||||||||||
| Ag clusters on silicon. Corresponding silver (352 eV) SAM image and line profile with sub-10nm resolution. | Ag clusters on silicon. Corresponding silicon (92 eV) SAM image and line profile with sub-10nm resolution. | ||||||||||||||||||||||||||||||||||||||||||||||||
