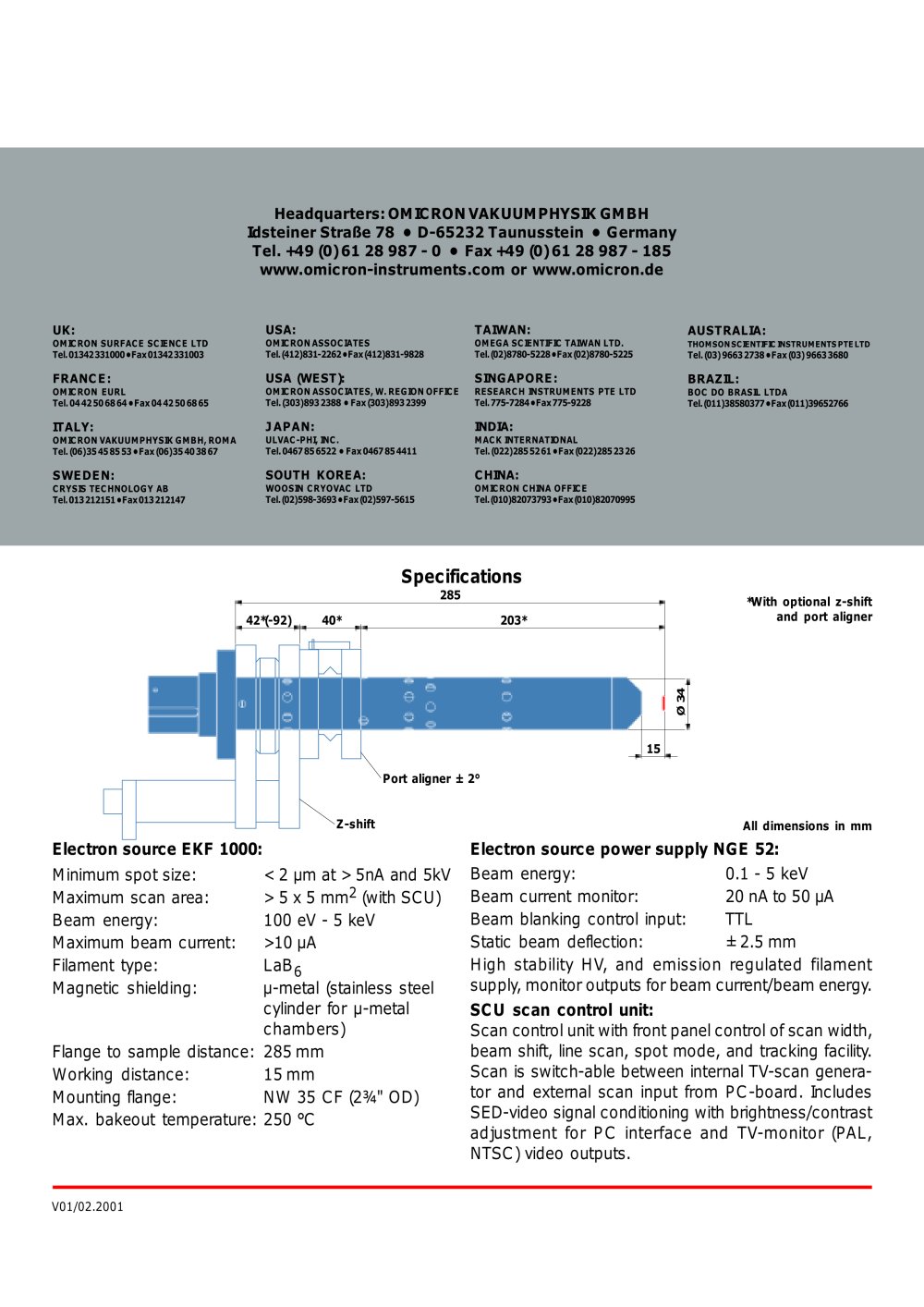

EKF 1000 - 20757 Specifications

285 Port aligner ± 2°Z-shift *With optional z-shiftand port aligner All dimensions in mm 42*(-92)40*203*
Ø 34 15

Electron source EKF 1000: Electron source power supply NGE 52: Minimum spot size: 5nA and 5kVMaximum scan area:> 5 x 5 mm Beam energy:0.1 - 5 keVBeam current monitor:20 nA to 50 µA Beam blanking control input:TTLStatic beam deflection:± 2.5 mmHigh stability HV, and emission regulated filamentsupply, monitor outputs for beam current/beam energy.

2

(with SCU)Beam energy:100 eV - 5 keVMaximum beam current:>10 µAFilament type:LaB

6

SCU scan control unit: Magnetic shielding:µ-metal (stainless steelcylinder for µ-metal chambers)Flange to sample distance:285 mmWorking distance:15 mm Mounting flange:NW 35 CF (2¾" OD)Max. bakeout temperature:250 °C Scan control unit with front panel control of scan width, beam shift, line scan, spot mode, and tracking facility. Scan is switch-able between internal TV-scan genera- tor and external scan input from PC-board. Includes SED-video signal conditioning with brightness/contrast adjustment for PC interface and TV-monitor (PAL, NTSC) video outputs.

V01/02.2001
