| Headquarters: OMICRON VAKUUMPHYSIK GMBH Idsteiner Straίe 78 D-65232 Tanunusstein Germany Tel. +49 (0) 61 28 987 - 0 Fax +49 (0) 61 28 987 - 185 www.omicron-instruments.com or www.omicron.de | |||||||||||||||||||||||||||||||
| uk: omicron surface science ltd Tel. 01342 331000 Fax 01342 331003 France: omicron eurl Tel. 04 42 50 68 64 Fax 04 42 50 68 65 italy: omicron vakuumphysik gmbh, roma Tel. (06) 35 45 85 53 Fax (06) 35 40 38 67 Sweden: crysis technology ab Tel. 013 212151 Fax 013 212147 | usa: omicron associates Tel. (412) 831-2262 Fax (412) 831-9828 usa (west): omicron associates, w. region office Tel. (303) 893 2388 Fax (303) 893 2399 japan: ulvac-phi, inc. Tel. 0467 85 6522 Fax 0467 85 4411 south korea: woosin cryovac ltd Tel. (031) 45 75 615 Fax (031) 45 75 629 | taiwan: OMEGA SCIENTIFIC TAIWAN LTD. Tel. (02) 8780-5228 Fax (02) 8780-5225 singapore: RESEARCH INSTRUMENTS PTE LTD Tel. 775-7284 Fax 775-9228 india: MACK INTERNATIONAL Tel. (022) 285 52 61 Fax (022) 285 23 26 china: OMICRON CHINA OFFICE Tel. (010) 82073793 Fax (010) 82070995 | australia: THOMSON SCIENTIFIC INSTRUMENTS PTE LTD Tel. (03) 9663 2738 Fax (03) 9663 3680 brazil: BOC DO BRASIL LTDA Tel. (011) 38580377 Fax (011) 39652766 | ||||||||||||||||||||||||||||

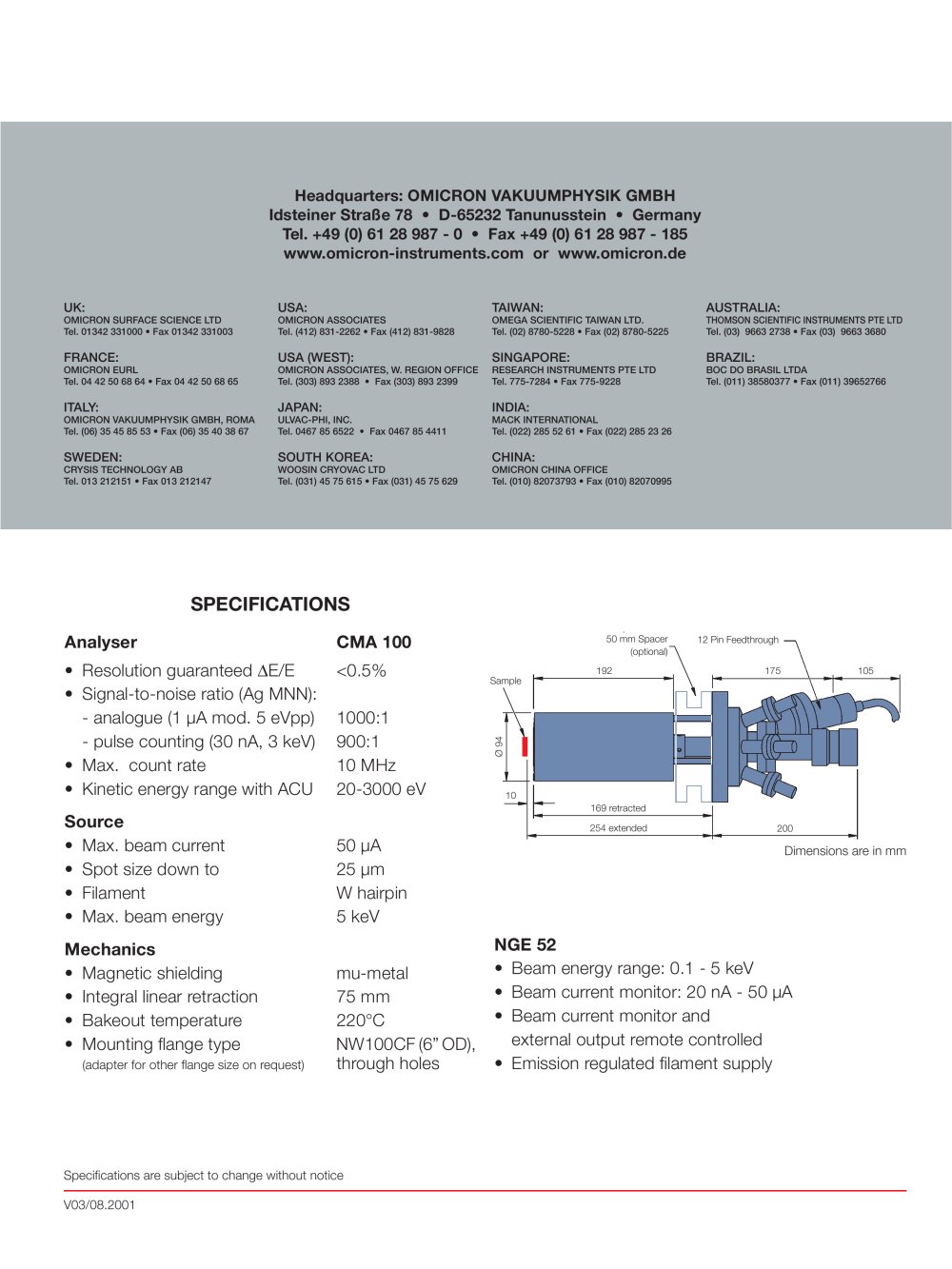

| SPECIFICATIONS | |||||||||||||||||||||||||||||||
| CMA100 <0.5% 1000:1 900:1 10 MHz 20-3000 eV 50 uA 25 urn W hairpin 5 keV mu-metal 75 mm 220°C NW100CF (6" OD), through holes | |||||||||||||||||||||||||||||||
| Analyser Resolution guaranteed AE/E Signal-to-noise ratio (Ag MNN): - analogue (1 uA mod. 5 eVpp) - pulse counting (30 nA, 3 keV) Max. count rate Kinetic energy range with ACU Source Max. beam current Spot size down to Filament Max. beam energy Mechanics Magnetic shielding Integral linear retraction Bakeout temperature Mounting flange type (adapter for other flange size on request) | 50 mm Spacer (optional) | ||||||||||||||||||||||||||||||
| 12 Pin Feedthrough | |||||||||||||||||||||||||||||||
| Sample | |||||||||||||||||||||||||||||||
| Dimensions are in mm | |||||||||||||||||||||||||||||||
| NGE 52 Beam energy range: 0.1 - 5 keV Beam current monitor: 20 nA - 50 uA Beam current monitor and external output remote controlled Emission regulated filament supply | |||||||||||||||||||||||||||||||
| Specifications are subject to change without notice | |||||||||||||||||||||||||||||||
| V03/08.2001 | |||||||||||||||||||||||||||||||
