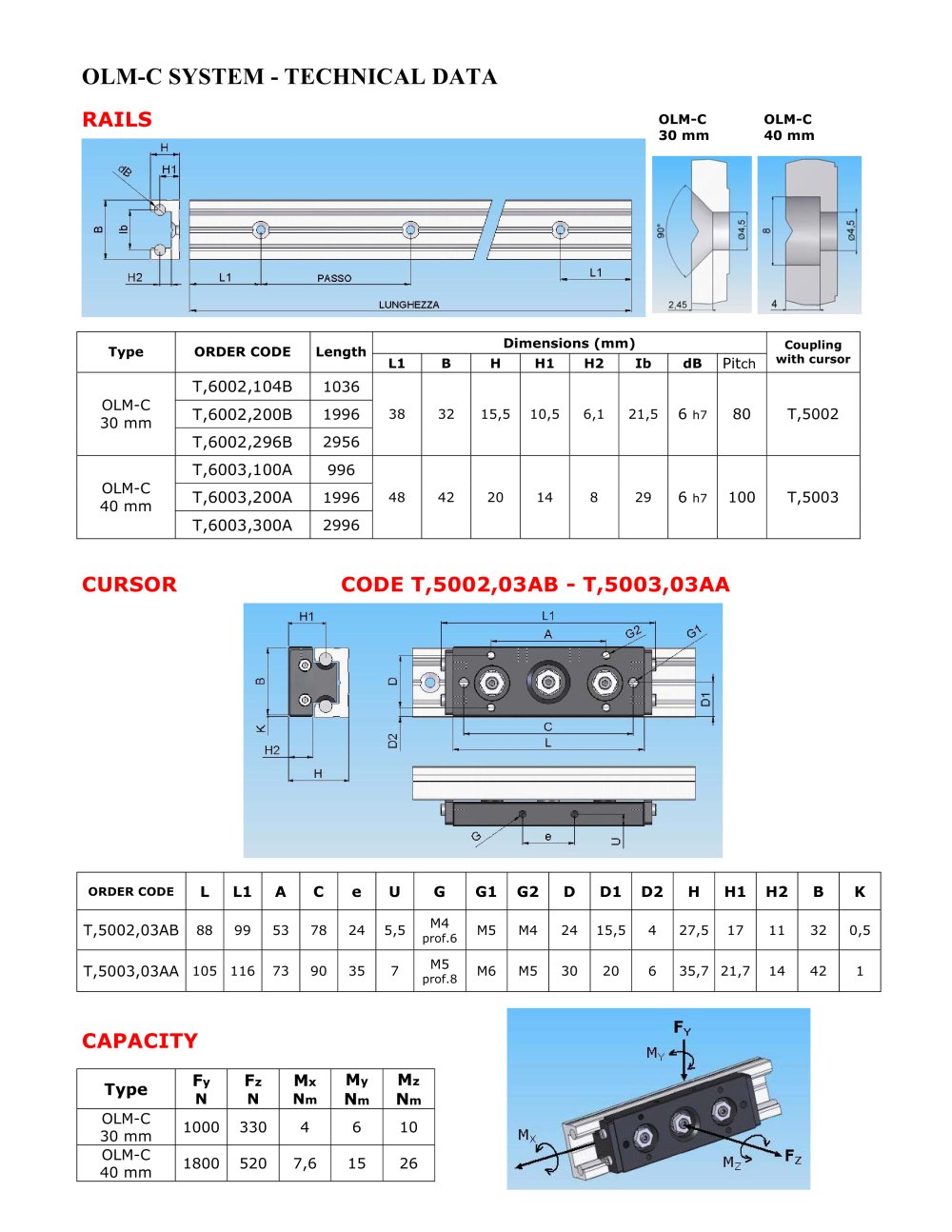

OLM-C SYSTEM - TECHNICAL DATA

RAILS

OLM-C 30 mm OLM-C 40 mm Type ORDER CODE Length L1 B H H1 H2 Ib dB Dimensions (mm) Coupling with cursor Pit
ch

T,6002,104B

1036 OLM-C 30 mm

T,6002,200B

1996
38 32 15,5 10,5 6,1 21,5 6
h7 80 T,5002

T,6002,296B

2956

T,6003,100A

996 OLM-C 40 mm

T,6003,200A

1996
48 42 20 14 8 29 6
h7 100 T,5003

T,6003,300A

2996

CURSOR CODE T,5002,03AB - T,5003,03AA

ORDER CODE L L1 A C e U G G1G2D D1D2H H1 H2B K T,5002,03AB
88 99 53 78 24 5,5M4 prof.6 M5 M4 24 15,54 27,5 17 11 32 0,5 T,5003,03AA
105 116 73 90 35 7 M5 prof.8 M6 M5 30 20 6 35,7 21,7 14 42 1

CAPACITY

Type F

y

F

z

M

x

M

y

M

z N N N
m

N

m

N

m OLM-C 30 mm 1000 330 4 6 10 OLM-C 40 mm 1800 520 7,6 15 26
