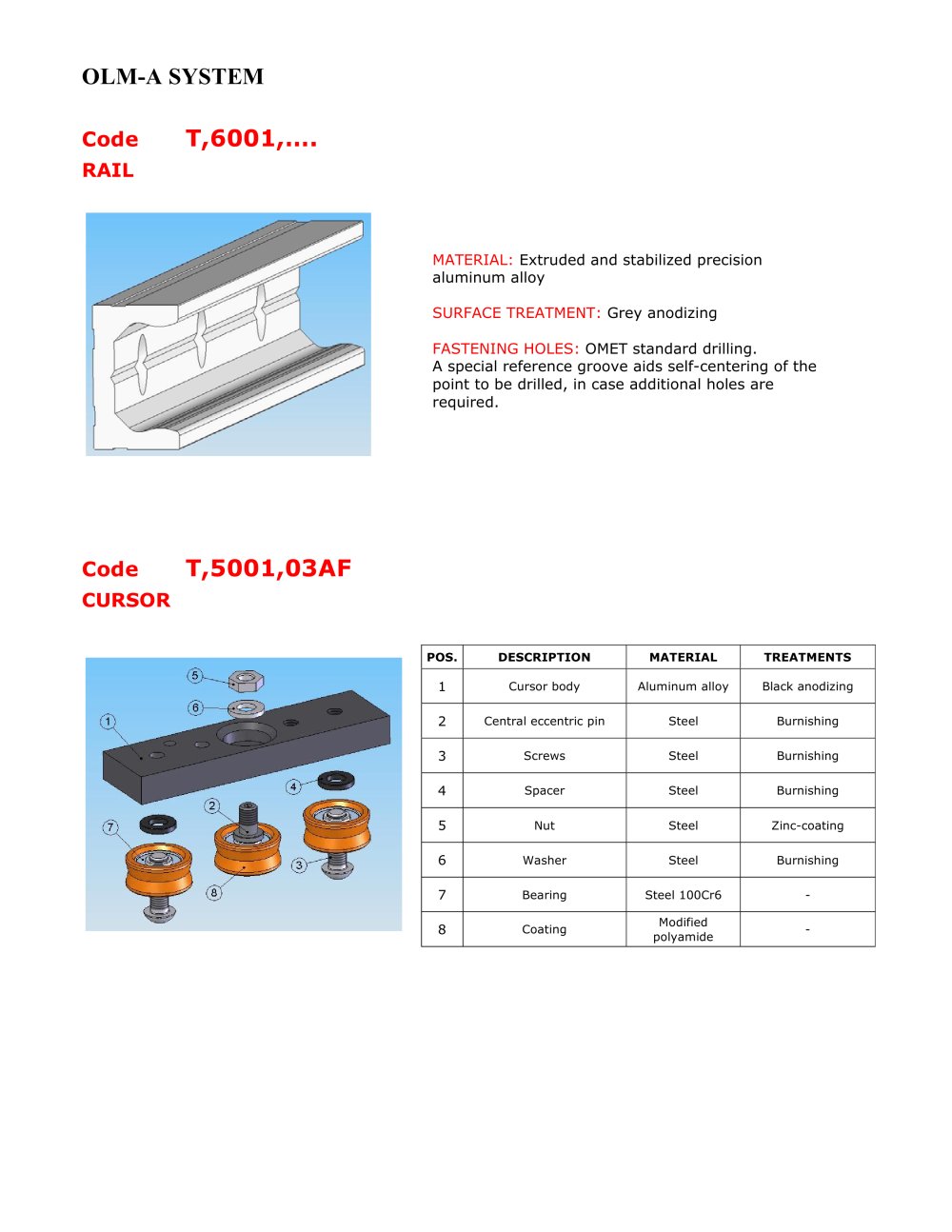

OLM-A SYSTEM

Code

T,6001,….

RAIL

MATERIAL: Extruded and stabilized precision aluminum alloy SURFACE TREATMENT: Grey anodizing FASTENING HOLES: OMET standard drilling. A special reference groove aids self-centering of the point to be drilled, in case additional holes are required.

Code

T,5001,03AF

CURSOR

POS.DESCRIPTION MATERIAL TREATMENTS

1

Cursor body Aluminum alloy Black anodizing

2

Central eccentric pin Steel Burnishing

3

Screws Steel Burnishing

4

Spacer Steel Burnishing

5

Nut Steel Zinc-coating

6

Washer Steel Burnishing

7

Bearing Steel 100Cr6 -

8

Coating Modified polyamide -
