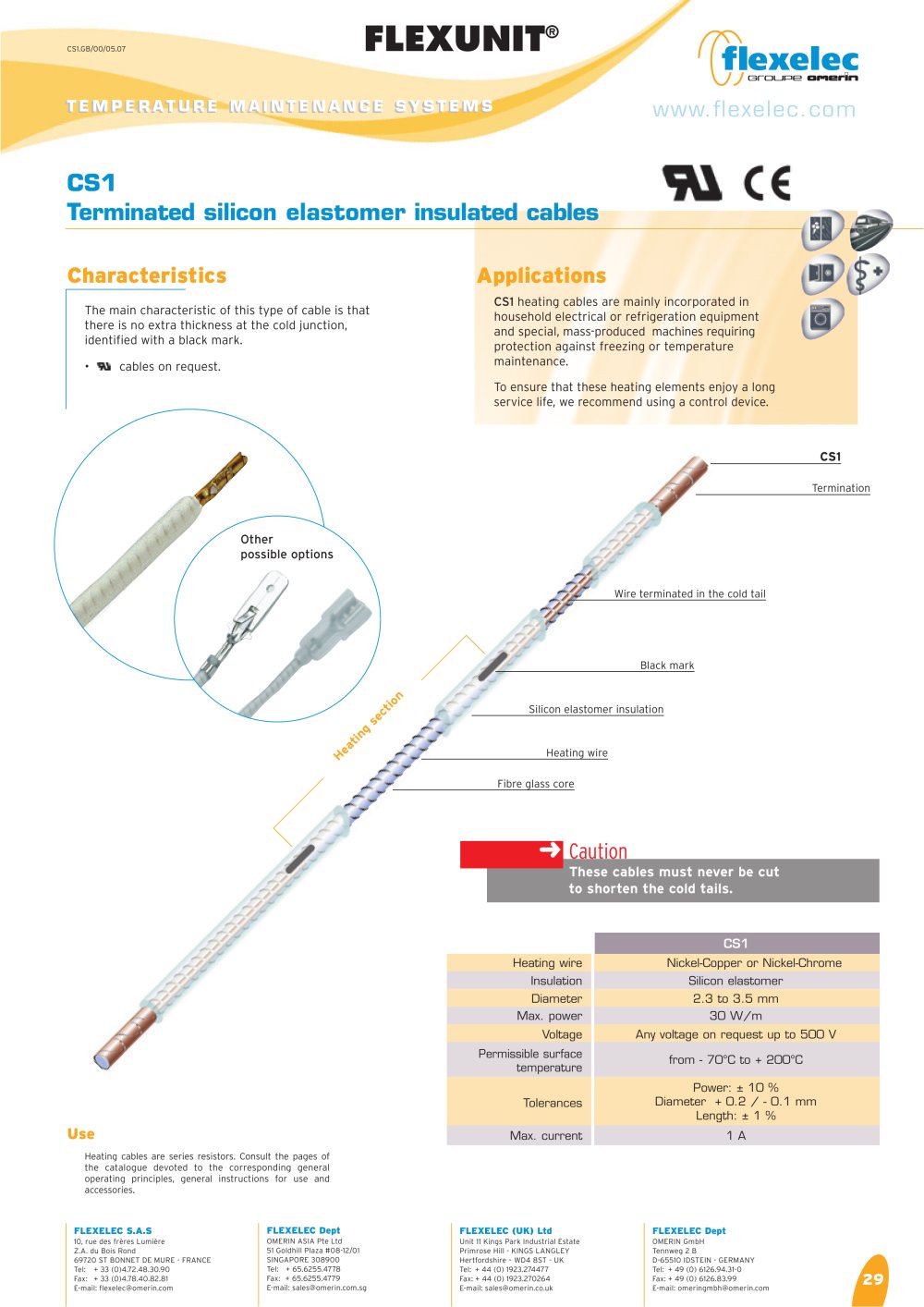

CS1.GB/00/05.07

FLEXUNIT- CS1 Terminated silicon elastomer insulated cables - 12323 FLEXUNIT

TEMPERATURE MAINTENANCE SYSTEMSTEMPERATURE MAINTENANCE SYSTEMS

www.flexelec.com

CS1Terminated silicon elastomerinsulated cables

Characteristics Applications

The main characteristic of this type of cable is that there is no extra thickness at the cold junction, identified with a black mark.• cables on request. CS1 heating cables are mainly incorporated inhousehold electrical or refrigeration equipment and special, mass-produced machines requiringprotection against freezing or temperature maintenance. To ensure that these heating elements enjoy a long service life, we recommend using a control device. CS1
Termination Other possible options
Wire terminated in the cold tail Black mark Silicon elastomer insulation Heating section Heating wire Fibre glass core

Caution

These cables must never be cut to shorten the cold tails.
CS1
Heating wireNickel-Copper or Nickel-ChromeInsulationSilicon elastomerDiameter2.3 to 3.5 mmMax. power30 W/mVoltage Any voltage on request up to 500 V Permissible surface temperature from - 70°C to + 200°C TolerancesPower: ±10 %Diameter + 0.2 / - 0.1 mmLength: ±1 %Max. current1A

Use

Heating cables are series resistors. Consult the pages ofthe catalogue devoted to the corresponding general operating principles, general instructions for use and accessories. FLEXELEC S.A.S FLEXELEC Dept FLEXELEC (UK) Ltd FLEXELEC Dept 10, rue des frères Lumière Z.A. du Bois Rond 69720 ST BONNET DE MURE - FRANCETel:+ 33 (0)4.72.48.30.90 Fax:+ 33 (0)4.78.40.82.81 E-mail: flexelec@omerin.com OMERIN ASIA Pte Ltd 51 Goldhill Plaza #08-12/01 SINGAPORE 308900 Tel:+ 65.6255.4778 Fax: + 65.6255.4779 E-mail: sales@omerin.com.sg Unit 11 Kings Park Industrial Estate Primrose Hill - KINGS LANGLEY Hertfordshire – WD4 8ST - UK Tel:+ 44 (0) 1923.274477 Fax: + 44 (0) 1923.270264 E-mail: sales@omerin.co.uk OMERIN GmbH Tennweg 2 B D-65510 IDSTEIN - GERMANY Tel:+ 49 (0) 6126.94.31-0 Fax: + 49 (0) 6126.83.99 E-mail: omeringmbh@omerin.com
