FLEXTRACE - FTSO - Silicon elastomer insulated constant power cables for refrigeration - 12323 FLEXTRACE

TEMPERATURE MAINTENANCE SYSTEMSTEMPERATURE MAINTENANCE SYSTEMS

www.flexelec.com

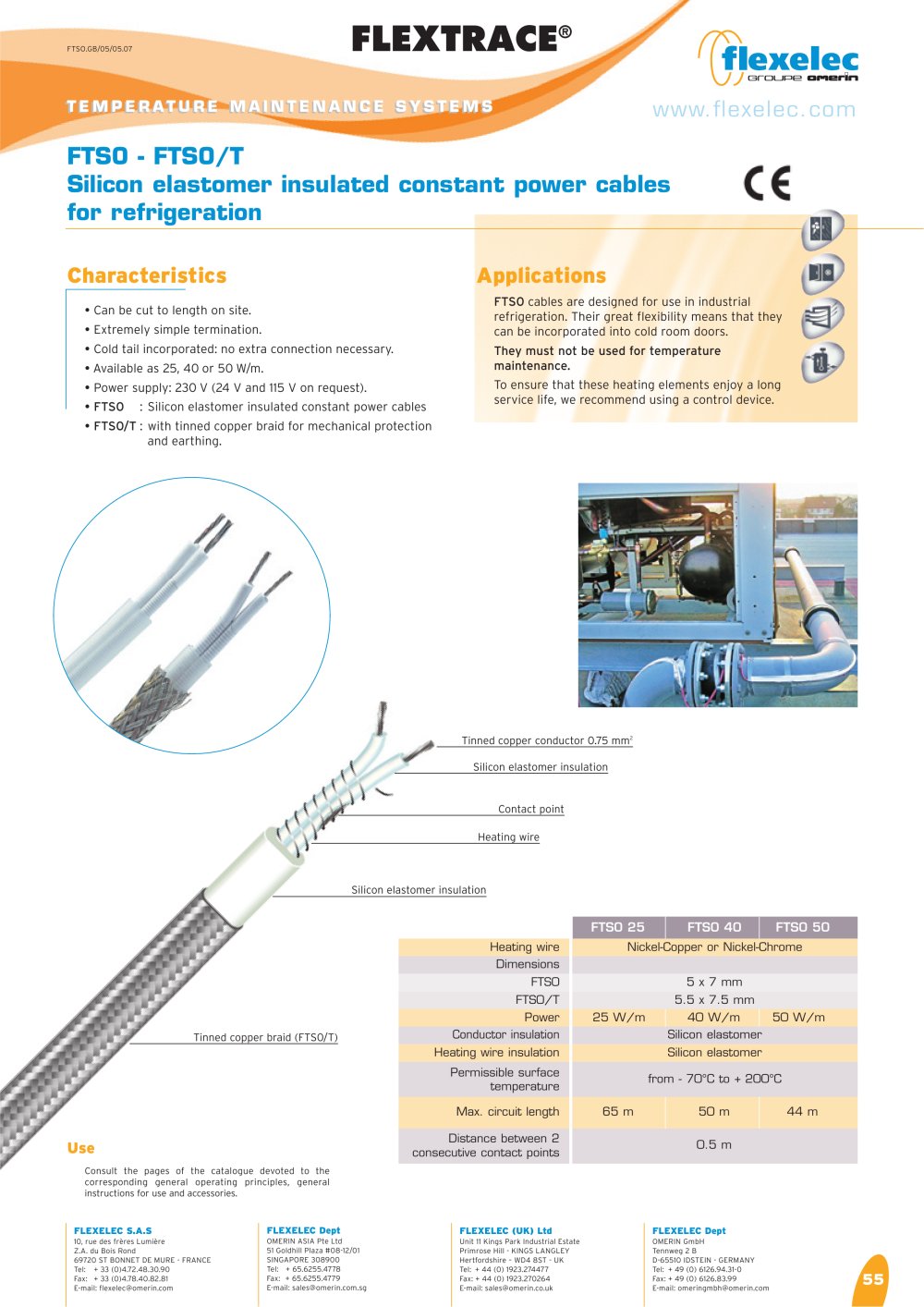

FTS0 - FTS0/T Silicon elastomer insulated constant power cables for refrigeration

Characteristics Applications

• Can be cut to length on site. FTS0 cables are designed for use in industrialrefrigeration. Their great flexibility means that they can be incorporated into cold room doors. • Extremely simple termination. They must not be used for temperaturemaintenance. • Cold tail incorporated: no extra connection necessary. To ensure that these heating elements enjoy a longservice life, we recommend using a control device. • Available as 25, 40or 50W/m. • Power supply: 230V (24 V and 115 V on request). • FTS0 :Silicon elastomer insulated constant power cables • FTS0/T :with tinned copper braid for mechanical protectionand earthing.
Tinned copper conductor 0.75 mm 2 Silicon elastomer insulation Contact point Heating wire Silicon elastomer insulation FTS0 25FTS0 40FTS0 50
Heating wireNickel-Copper or Nickel-ChromeDimensionsFTS05 x 7 mmFTS0/T5.5 x 7.5 mmPower25 W/m40 W/m50 W/m Tinned copper braid (FTS0/T) Conductor insulation Silicon elastomerHeating wire insulationSilicon elastomerPermissible surfacefrom - 70°C to +200°CtemperatureMax. circuit length 65 m50 m44 mDistance between 2consecutive contact points0.5 m

Use

Consult the pages of the catalogue devoted to the corresponding general operating principles, general instructions for use and accessories. FLEXELEC S.A.S FLEXELEC Dept FLEXELEC (UK) Ltd FLEXELEC Dept 10, rue des frères Lumière Z.A. du Bois Rond 69720 ST BONNET DE MURE - FRANCETel:+ 33 (0)4.72.48.30.90 Fax:+ 33 (0)4.78.40.82.81 E-mail: flexelec@omerin.com OMERIN ASIA Pte Ltd 51 Goldhill Plaza #08-12/01 SINGAPORE 308900 Tel:+ 65.6255.4778 Fax: + 65.6255.4779 E-mail: sales@omerin.com.sg Unit 11 Kings Park Industrial Estate Primrose Hill - KINGS LANGLEY Hertfordshire – WD4 8ST - UK Tel:+ 44 (0) 1923.274477 Fax: + 44 (0) 1923.270264 E-mail: sales@omerin.co.uk OMERIN GmbH Tennweg 2 B D-65510 IDSTEIN - GERMANY Tel:+ 49 (0) 6126.94.31-0 Fax: + 49 (0) 6126.83.99 E-mail: omeringmbh@omerin.com
