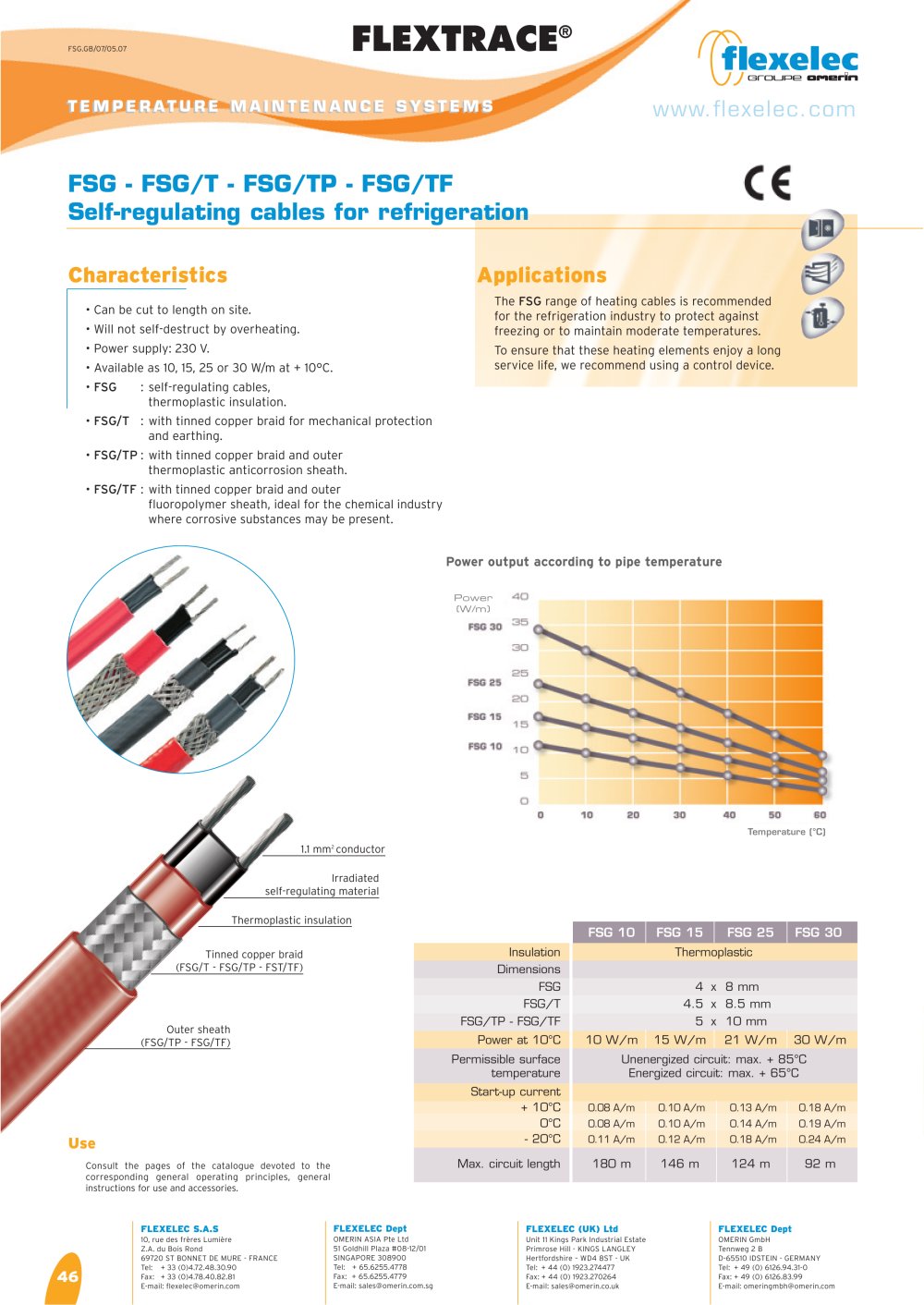

FLEXTRACE®

FSG.GB/07/05.07

flexelec

J C3rai_ii=ie ■ ■■ im li i

www.flexelec.cQm

RE MA

FSG - FSG/T - FSG/TP - FSG/TF Self-regulating cables for refrigeration

Applications

The FSG range of heating cables is recommended

for the refrigeration industry to protect against

freezing or to maintain moderate temperatures. To ensure that these heating elements enjoy a long

service life, we recommend using a control device.

• Can be cut to length on site.

• Will not self-destruct by overheating.

• Power supply: 230 V.

• Available as 10, 15, 25 or 30 W/m at + 10°C.

• FSG : self-regulating cables,

thermoplastic insulation.

• FSG/T : with tinned copper braid for mechanical protection

and earthing.

• FSG/TP : with tinned copper braid and outer

thermoplastic anticorrosion sheath.

• FSG/TF : with tinned copper braid and outer

fluoropolymer sheath, ideal for the chemical industry where corrosive substances may be present.

Power output according to pipe temperature

■so

3D SS BD

Power (W/m)

FSG .ID

FW» _i5F5O10 ,_D

Li U

40 5D ED

Temperature (°C)

1.1 mm² conductor

Irradiated self-regulating material

Thermoplastic insulation


	FSG 10 FSG 15 FSG 25	FSG 30
Insulation	Thermoplastic
Dimensions
FSG	4 x 8 mm
FSG/T	4.5 x 8.5 mm
FSG/TP - FSG/TF	5 x 10 mm
Power at 10°C	10 W/m 15 W/m 21 W/m	30 W/m
Permissible surface	Unenergized circuit: max. + 85°C
temperature	Energized circuit: max. + 65°C
Start-up current
+ 10°C	0.08 A/m 0.10 A/m 0.13 A/m	0.18 A/m

0°C	0.08 A/m 0.10 A/m 0.14 A/m	0.19 A/m
- 20°C	0.11 A/m 0.12 A/m 0.18 A/m	0.24 A/m
Max. circuit length	180 m 146 m 124 m	92 m

Tinned copper braid (FSG/T - FSG/TP - FST/TF)

Outer sheath

(FSG/TP - FSG/TF)

Consult the pages of the catalogue devoted to the corresponding general operating principles, general

instructions for use and accessories.

FLEXELEC Dept

OMERIN ASIA Pte Ltd 51 Goldhill Plaza #08-12/01 SINGAPORE 308900 Tel: + 65.6255.4778 Fax: + 65.6255.4779 E-mail: sales@omerin.com.sg

FLEXELEC S.A.S

10, rue des frères Lumière Z.A. du Bois Rond

69720 ST BONNET DE MURE - FRANCE Tel: + 33 (0)4.72.48.30.90 Fax: + 33 (0)4.78.40.82.81 E-mail: flexelec@omerin.com

FLEXELEC (UK) Ltd

Unit 11 Kings Park Industrial Estate Primrose Hill - KINGS LANGLEY Hertfordshire - WD4 8ST - UK Tel: + 44 (0) 1923.274477 Fax: + 44 (0) 1923.270264 E-mail: sales@omerin.co.uk

FLEXELEC Dept

OMERIN GmbH Tennweg 2 B

D-65510 IDSTEIN - GERMANY Tel: + 49 (0) 6126.94.31-0 Fax: + 49 (0) 6126.83.99 E-mail: omerlnqmbh@omerln.com
