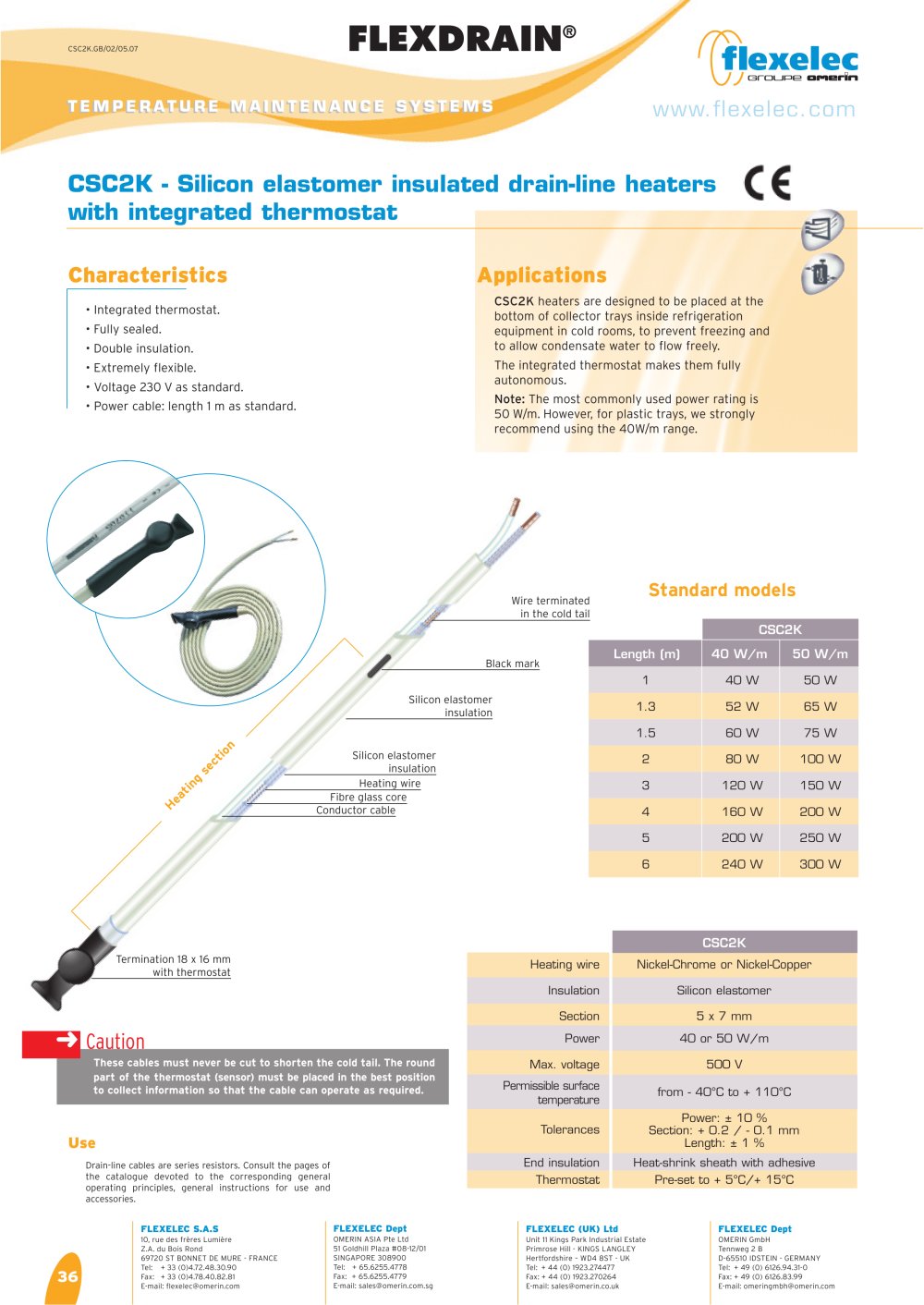

FLEXDRAIN - CSC2K -Silicon elastomer insulated drain-line heaters with integrated thermostat - 12323 FLEXDRAIN

TEMPERATURE MAINTENANCE SYSTEMSTEMPERATURE MAINTENANCE SYSTEMS

www.flexelec.com

CSC2K - Silicon elastomer insulated drain-line heaters with integrated thermostat

Characteristics Applications

• Integrated thermostat.• Fully sealed.• Double insulation. • Extremely flexible.• Voltage 230Vas standard.• Power cable: length 1 m as standard. CSC2K heaters are designed to be placed at the bottom of collector trays inside refrigeration equipment in cold rooms, to prevent freezing and to allow condensate water to flow freely. The integrated thermostat makes them fullyautonomous. Note: The most commonly used power rating is 50W/m.However, for plastic trays, we strongly recommend using the 40W/m range.

Wire terminated

Standard models

in the cold tail

CSC2K

Black mark

Length (m)40 W/m50 W/m

140 W50 W1.352 W65 W1.560 W75 W280 W100 W3120 W150 W4160 W200 W5200 W250 W6240 W300 W

insulation Silicon elastomer insulationSilicon elastomer Heating wire Fibre glass core
Heating section Conductor cable

CSC2K

Termination 18 x 16 mm with thermostat

Heating wireNickel-Chrome or Nickel-CopperInsulationSilicon elastomerSection5 x 7 mmPower40 or 50 W/mMax. voltage500 V

Caution

These cables must never be cut to shorten the cold tail. The roundpart of the thermostat (sensor) must be placed in the best positionto collect information so that the cable can operate as required.

Permissible surface temperature from - 40°C to + 110°C TolerancesPower: ±10 %Section: + 0.2 / - 0.1 mmLength: ±1 %End insulation Heat-shrink sheath with adhesive ThermostatPre-set to + 5°C/+ 15°C

Use

Drain-line cables are series resistors. Consult the pages of the catalogue devoted to the corresponding general operating principles, general instructions for use and accessories. FLEXELEC S.A.S FLEXELEC Dept FLEXELEC (UK) Ltd FLEXELEC Dept 10, rue des frères Lumière Z.A. du Bois Rond 69720 ST BONNET DE MURE - FRANCETel:+ 33 (0)4.72.48.30.90 Fax:+ 33 (0)4.78.40.82.81 E-mail: flexelec@omerin.com OMERIN ASIA Pte Ltd 51 Goldhill Plaza #08-12/01 SINGAPORE 308900 Tel:+ 65.6255.4778 Fax: + 65.6255.4779 E-mail: sales@omerin.com.sg Unit 11 Kings Park Industrial Estate Primrose Hill - KINGS LANGLEY Hertfordshire – WD4 8ST - UK Tel:+ 44 (0) 1923.274477 Fax: + 44 (0) 1923.270264 E-mail: sales@omerin.co.uk OMERIN GmbH Tennweg 2 B D-65510 IDSTEIN - GERMANY Tel:+ 49 (0) 6126.94.31-0 Fax: + 49 (0) 6126.83.99 E-mail: omeringmbh@omerin.com
