Wireless Receivers UWTC-REC - 3 Pages

Works with Up to 48
Wireless Transmitters
Four 0 to 5 Vdc, 0 to 10 Vdc
or 4 to 20 mA Analogue
Outputs
Interface Directly to PLCs,
Chart Recorders and Data
Loggers
Standard DIN Rail Enclosure
Built-in Programmable
Alarms for Each Channel
Field Programmable
via USB
Included Software Turns
a PC Into a Multi-Channel
Meter, Chart Recorder or
Data Logger

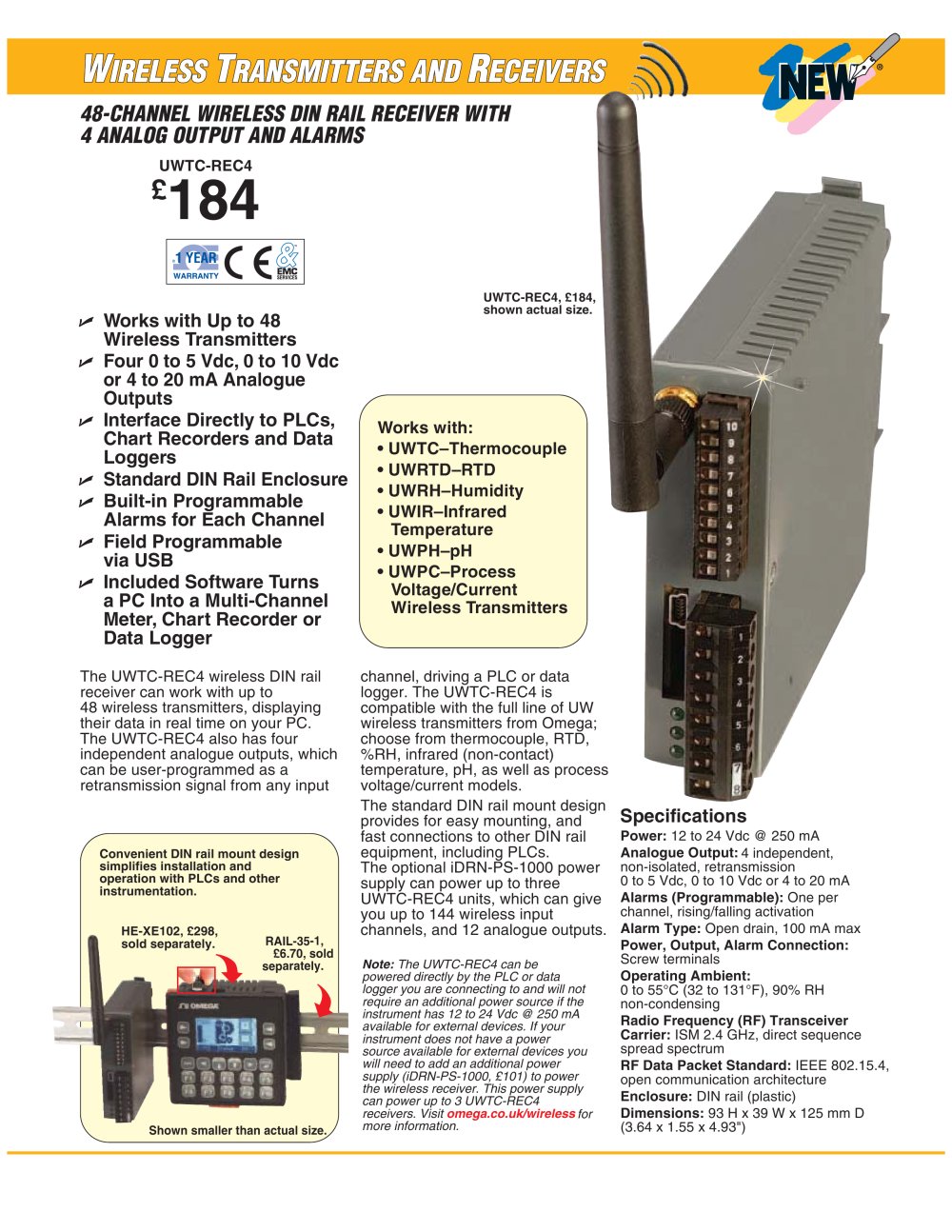

48-CHANNEL WIRELESS DIN RAIL RECEIVER WITH
4 ANALOG OUTPUT AND ALARMS
UWTC-REC4
£184
The UWTC-REC4 wireless DIN rail
receiver can work with up to
48 wireless transmitters, displaying
their data in real time on your PC.
The UWTC-REC4 also has four
independent analogue outputs, which
can be user-programmed as a
retransmission signal from any input
Note: The UWTC-REC4 can be
powered directly by the PLC or data
logger you are connecting to and will not
require an additional power source if the
instrument has 12 to 24 Vdc @ 250 mA
available for external devices. If your
instrument does not have a power
source available for external devices you
will need to add an additional power
supply (iDRN-PS-1000, £101) to power
the wireless receiver. This power supply
can power up to 3 UWTC-REC4
receivers. Visit omega.co.uk/wireless for
more information.
UWTC-REC4, £184,
shown actual size.
HE-XE102, £298,
sold separately.
Convenient DIN rail mount design
simplifies installation and
operation with PLCs and other
instrumentation.
RAIL-35-1,
£6.70, sold
separately.
Specifications
Power: 12 to 24 Vdc @ 250 mA
Analogue Output: 4 independent,
non-isolated, retransmission
0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA
Alarms (Programmable): One per
channel, rising/falling activation
Alarm Type: Open drain, 100 mA max
Power, Output, Alarm Connection:
Screw terminals
Operating Ambient:
0 to 55°C (32 to 131°F), 90% RH
non-condensing
Radio Frequency (RF) Transceiver
Carrier: ISM 2.4 GHz, direct sequence
spread spectrum
RF Data Packet Standard: IEEE 802.15.4,
open communication architecture
Enclosure: DIN rail (plastic)
Dimensions: 93 H x 39 W x 125 mm D
Shown smaller than actual size. (3.64 x 1.55 x 4.93")
channel, driving a PLC or data
logger. The UWTC-REC4 is
compatible with the full line of UW
wireless transmitters from Omega;
choose from thermocouple, RTD,
%RH, infrared (non-contact)
temperature, pH, as well as process
voltage/current models.
The standard DIN rail mount design
provides for easy mounting, and
fast connections to other DIN rail
equipment, including PLCs.
The optional iDRN-PS-1000 power
supply can power up to three
UWTC-REC4 units, which can give
you up to 144 wireless input
channels, and 12 analogue outputs.
Works with:
......................................
........R......RTD
..............................
................................
Temperature
..................
................rocess
Voltage/Current
Wireless Transmitters

Wireless Receivers UWTC-REC
