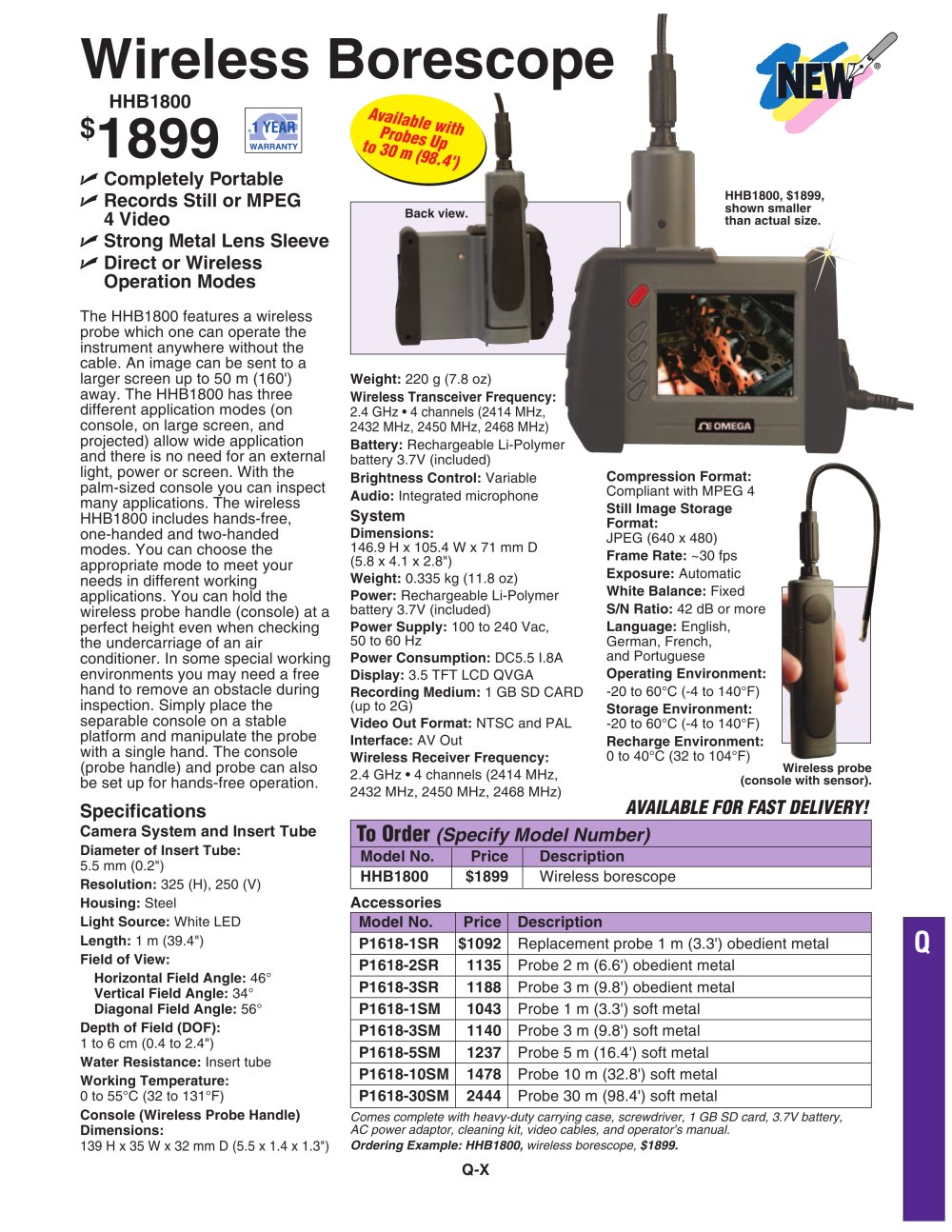

Wireless bore scope HHB1800 - 1

Weight: 220 g (7.8 oz) Wireless Transceiver Frequency: 2.4 GHz • 4 channels (2414 MHz, 2432 MHz, 2450 MHz, 2468 MHz) Battery: Rechargeable Li-Polymer battery 3.7V (included) Brightness Control: Variable Audio: Integrated microphone System Dimensions: 146.9 H x 105.4 W x 71 mm D (5.8 x 4.1 x 2.8") Weight: 0.335 kg (11.8 oz) Power: Rechargeable Li-Polymer battery 3.7V (included) Power Supply: 100 to 240 Vac, 50 to 60 Hz Power Consumption: DC5.5 I.8A Display: 3.5 TFT LCD QVGA Recording Medium: 1 GB SD CARD (up to 2G) Video Out Format: NTSC and PAL Interface: AV Out Wireless Receiver Frequency: 2.4 GHz • 4 channels (2414 MHz, 2432 MHz, 2450 MHz, 2468 MHz) Specifications Camera System and Insert Tube Diameter of Insert Tube: 5.5 mm (0.2") Resolution: 325 (H), 250 (V) Housing: Steel Light Source: White LED Length: 1 m (39.4") Field of View: Horizontal Field Angle: 46° Vertical Field Angle: 34° Diagonal Field Angle: 56° Depth of Field (DOF): 1 to 6 cm (0.4 to 2.4") Water Resistance: Insert tube Working Temperature: 0 to 55°C (32 to 131°F) Console (Wireless Probe Handle) Dimensions: 139 H x 35 W x 32 mm D (5.5 x 1.4 x 1.3") Q Wireless Borescope HHB1800 $1899 Completely Portable Records Still or MPEG 4 Video Strong Metal Lens Sleeve Direct or Wireless Operation Modes To Order (Specify Model Number) Model No. Price Description HHB1800 $1899 Wireless borescope Comes complete with heavy-duty carrying case, screwdriver, 1 GB SD card, 3.7V battery, AC power adaptor, cleaning kit, video cables, and operator’s manual. Ordering Example: HHB1800, wireless borescope, $1899. AVAILABLE FOR FAST DELIVERY! Compression Format: Compliant with MPEG 4 Still Image Storage Format: JPEG (640 x 480) Frame Rate: ~30 fps Exposure: Automatic White Balance: Fixed S/N Ratio: 42 dB or more Language: English, German, French, and Portuguese Operating Environment: -20 to 60°C (-4 to 140°F) Storage Environment: -20 to 60°C (-4 to 140°F) Recharge Environment: 0 to 40°C (32 to 104°F) HHB1800, $1899, shown smaller than actual size. Wireless probe (console with sensor). Back view. Q-X Model No. Price Description P1618-1SR $1092 Replacement probe 1 m (3.3') obedient metal P1618-2SR 1135 Probe 2 m (6.6') obedient metal P1618-3SR 1188 Probe 3 m (9.8') obedient metal P1618-1SM 1043 Probe 1 m (3.3') soft metal P1618-3SM 1140 Probe 3 m (9.8') soft metal P1618-5SM 1237 Probe 5 m (16.4') soft metal P1618-10SM 1478 Probe 10 m (32.8') soft metal P1618-30SM 2444 Probe 30 m (98.4') soft metal Accessories The HHB1800 features a wireless probe which one can operate the instrument anywhere without the cable. An image can be sent to a larger screen up to 50 m (160') away. The HHB1800 has three different application modes (on console, on large screen, and projected) allow wide application and there is no need for an external light, power or screen. With the palm-sized console you can inspect many applications. The wireless HHB1800 includes hands-free, one-handed and two-handed modes. You can choose the appropriate mode to meet your needs in different working applications. You can hold the wireless probe handle (console) at a perfect height even when checking the undercarriage of an air conditioner. In some special working environments you may need a free hand to remove an obstacle during inspection. Simply place the separable console on a stable platform and manipulate the probe with a single hand. The console (probe handle) and probe can also be set up for hands-free operation. Available with Probes Up to 30 m (98.4')

Open the catalog to page 1
Wireless bore scope HHB1800 - 2

One Omega Drive | Stamford, CT 06907 | 1-888-TC-OMEGA (1-888-826-6342) | info@omega.com www.omega.com More than 100,000 Products Available! CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. omega.co.uk Manchester, England 0800-488-488 GERMANY www.omega.de Deckenpfronn, Germany 0800-8266342 FRANCE www.omega.fr Guyancourt, France 088-466-342 BENELUX www.omega.nl Amstelveen, NL 0800-099-33-44 UNITED STATES www.omega.com 1-800-TC-OMEGA Stamford, CT. CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic 596-311-899 Temperature Calibrators, Connectors, General Test and...

Open the catalog to page 2
