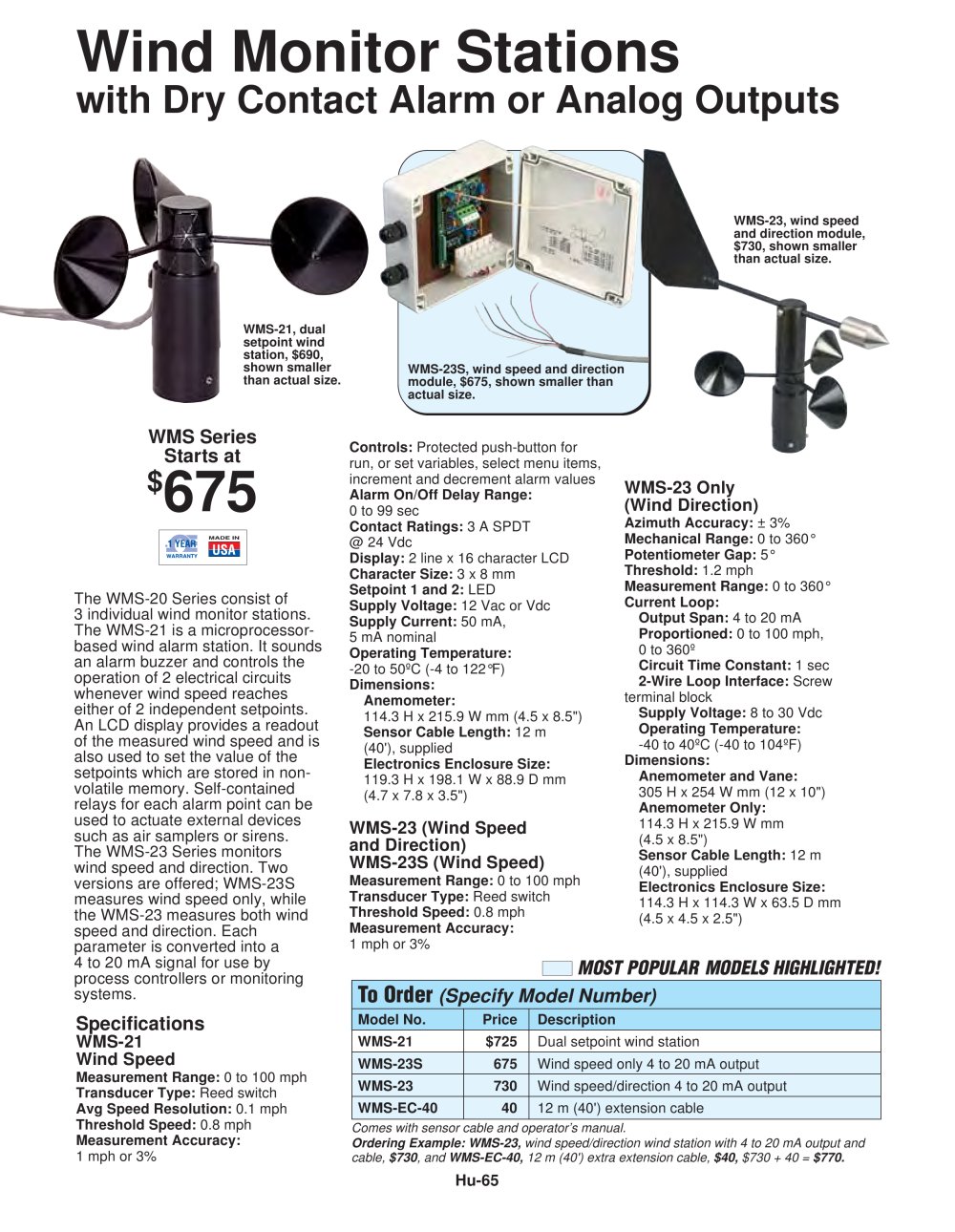

Hu-65 Comes with sensor cable and operator’s manual. Ordering Example: WMS-23, wind speed/direction wind station with 4 to 20 mA output and cable, $730, and WMS-EC-40, 12 m (40') extra extension cable, $40, $730 + 40 = $770. Specifications WMS-21 Wind Speed Measurement Range: 0 to 100 mph Transducer Type: Reed switch Avg Speed Resolution: 0.1 mph Threshold Speed: 0.8 mph Measurement Accuracy: 1 mph or 3% To Order (Specify Model Number) Model No. Price Description WMS-21 $725 Dual setpoint wind station WMS-23S 675 Wind speed only 4 to 20 mA output WMS-23 730 Wind speed/direction 4 to 20 mA output WMS-EC-40 40 12 m (40') extension cable Controls: Protected push-button for run, or set variables, select menu items, increment and decrement alarm values Alarm On/Off Delay Range: 0 to 99 sec Contact Ratings: 3 A SPDT @ 24 Vdc Display: 2 line x 16 character LCD Character Size: 3 x 8 mm Setpoint 1 and 2: LED Supply Voltage: 12 Vac or Vdc Supply Current: 50 mA, 5 mA nominal Operating Temperature: -20 to 50ºC (-4 to 122°F) Dimensions: Anemometer: 114.3 H x 215.9 W mm (4.5 x 8.5") Sensor Cable Length: 12 m (40'), supplied Electronics Enclosure Size: 119.3 H x 198.1 W x 88.9 D mm (4.7 x 7.8 x 3.5") WMS-23 (Wind Speed and Direction) WMS-23S (Wind Speed) Measurement Range: 0 to 100 mph Transducer Type: Reed switch Threshold Speed: 0.8 mph Measurement Accuracy: 1 mph or 3% WMS-23 Only (Wind Direction) Azimuth Accuracy: ± 3% Mechanical Range: 0 to 360° Potentiometer Gap: 5° Threshold: 1.2 mph Measurement Range: 0 to 360° Current Loop: Output Span: 4 to 20 mA Proportioned: 0 to 100 mph, 0 to 360º Circuit Time Constant: 1 sec 2-Wire Loop Interface: Screw terminal block Supply Voltage: 8 to 30 Vdc Operating Temperature: -40 to 40ºC (-40 to 104ºF) Dimensions: Anemometer and Vane: 305 H x 254 W mm (12 x 10") Anemometer Only: 114.3 H x 215.9 W mm (4.5 x 8.5") Sensor Cable Length: 12 m (40'), supplied Electronics Enclosure Size: 114.3 H x 114.3 W x 63.5 D mm (4.5 x 4.5 x 2.5") WMS-21, dual setpoint wind station, $690, shown smaller than actual size. Wind Monitor Stations with Dry Contact Alarm or Analog Outputs The WMS-20 Series consist of 3 individual wind monitor stations. The WMS-21 is a microprocessorbased wind alarm station. It sounds an alarm buzzer and controls the operation of 2 electrical circuits whenever wind speed reaches either of 2 independent setpoints. An LCD display provides a readout of the measured wind speed and is also used to set the value of the setpoints which are stored in nonvolatile memory. Self-contained relays for each alarm point can be used to actuate external devices such as air samplers or sirens. The WMS-23 Series monitors wind speed and direction. Two versions are offered; WMS-23S measures wind speed only, while the WMS-23 measures both wind speed and direction. Each parameter is converted into a 4 to 20 mA signal for use by process controllers or monitoring systems. WMS-23, wind speed and direction module, $730, shown smaller than actual size. WMS-23S, wind speed and direction module, $675, shown smaller than actual size. MOST POPULAR MODELS HIGHLIGHTED! WMS Series Starts at $675
