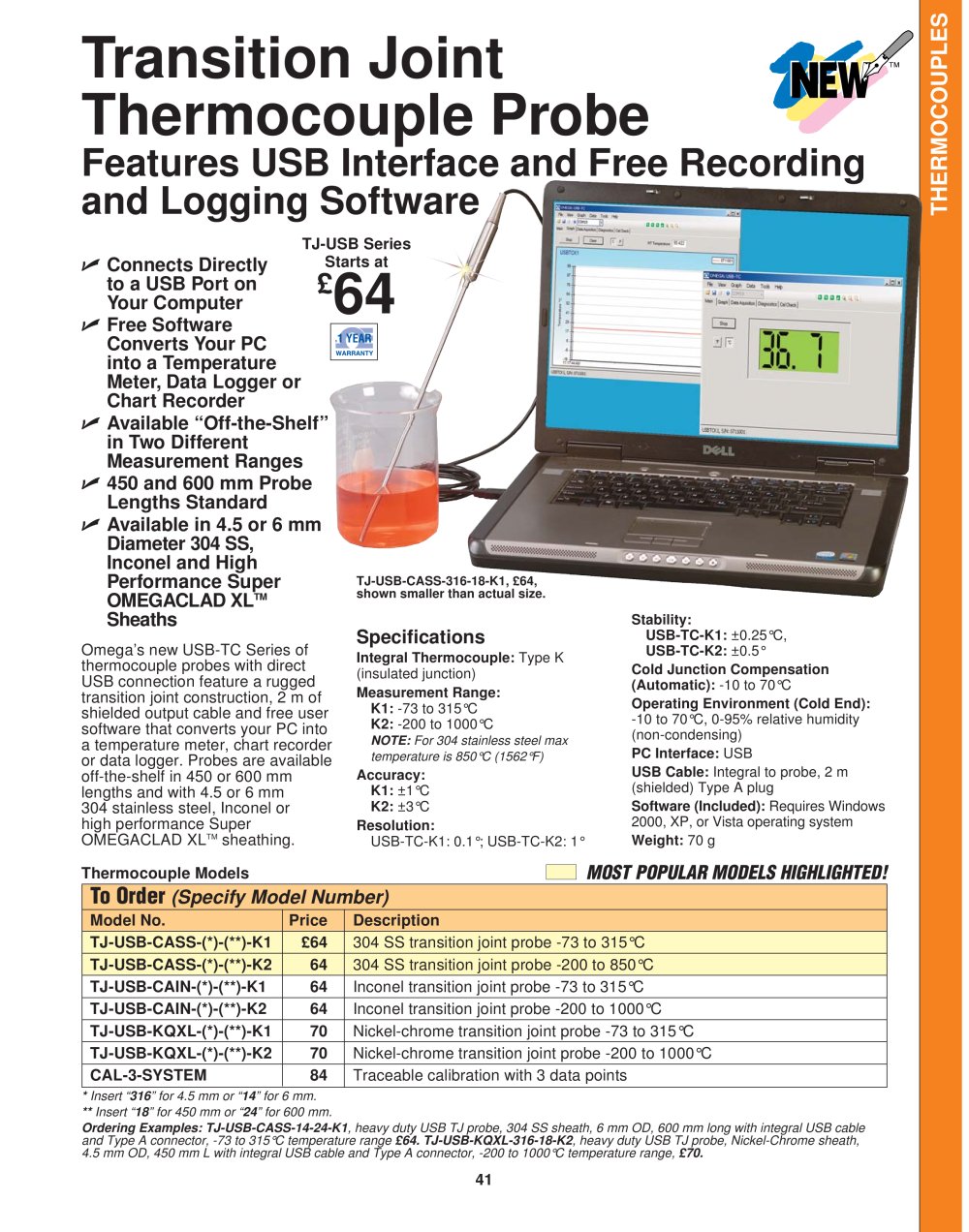

41 THERMOCOUPLES Transition Joint Thermocouple Probe Features USB Interface and Free Recording and Logging Software  Connects Directly to a USB Port on Your Computer  Free Software Converts Your PC into a Temperature Meter, Data Logger or Chart Recorder  Available “Off-the-Shelf” in Two Different Measurement Ranges  450 and 600 mm Probe Lengths Standard  Available in 4.5 or 6 mm Diameter 304 SS, Inconel and High Performance Super OMEGACLAD XLTM Sheaths * Insert “316” for 4.5 mm or “14” for 6 mm. ** Insert “18” for 450 mm or “24” for 600 mm. Ordering Examples: TJ-USB-CASS-14-24-K1, heavy duty USB TJ probe, 304 SS sheath, 6 mm OD, 600 mm long with integral USB cable and Type A connector, -73 to 315°C temperature range £64. TJ-USB-KQXL-316-18-K2, heavy duty USB TJ probe, Nickel-Chrome sheath, 4.5 mm OD, 450 mm L with integral USB cable and Type A connector, -200 to 1000°C temperature range, £70. MOST POPULAR MODELS HIGHLIGHTED! Specifications Integral Thermocouple: Type K (insulated junction) Measurement Range: K1: -73 to 315°C K2: -200 to 1000°C NOTE: For 304 stainless steel max temperature is 850°C (1562°F) Accuracy: K1: ±1°C K2: ±3°C Resolution: USB-TC-K1: 0.1°; USB-TC-K2: 1° Stability: USB-TC-K1: ±0.25°C, USB-TC-K2: ±0.5° Cold Junction Compensation (Automatic): -10 to 70°C Operating Environment (Cold End): -10 to 70°C, 0-95% relative humidity (non-condensing) PC Interface: USB USB Cable: Integral to probe, 2 m (shielded) Type A plug Software (Included): Requires Windows 2000, XP, or Vista operating system Weight: 70 g TJ-USB-CASS-316-18-K1, £64, shown smaller than actual size. TJ-USB Series Starts at £64 To Order (Specify Model Number) Model No. Price Description TJ-USB-CASS-(*)-(**)-K1 £64 304 SS transition joint probe -73 to 315°C TJ-USB-CASS-(*)-(**)-K2 64 304 SS transition joint probe -200 to 850°C TJ-USB-CAIN-(*)-(**)-K1 64 Inconel transition joint probe -73 to 315°C TJ-USB-CAIN-(*)-(**)-K2 64 Inconel transition joint probe -200 to 1000°C TJ-USB-KQXL-(*)-(**)-K1 70 Nickel-chrome transition joint probe -73 to 315°C TJ-USB-KQXL-(*)-(**)-K2 70 Nickel-chrome transition joint probe -200 to 1000°C CAL-3-SYSTEM 84 Traceable calibration with 3 data points Thermocouple Models Omega’s new USB-TC Series of thermocouple probes with direct USB connection feature a rugged transition joint construction, 2 m of shielded output cable and free user software that converts your PC into a temperature meter, chart recorder or data logger. Probes are available off-the-shelf in 450 or 600 mm lengths and with 4.5 or 6 mm 304 stainless steel, Inconel or high performance Super OMEGACLAD XLTM sheathing.
