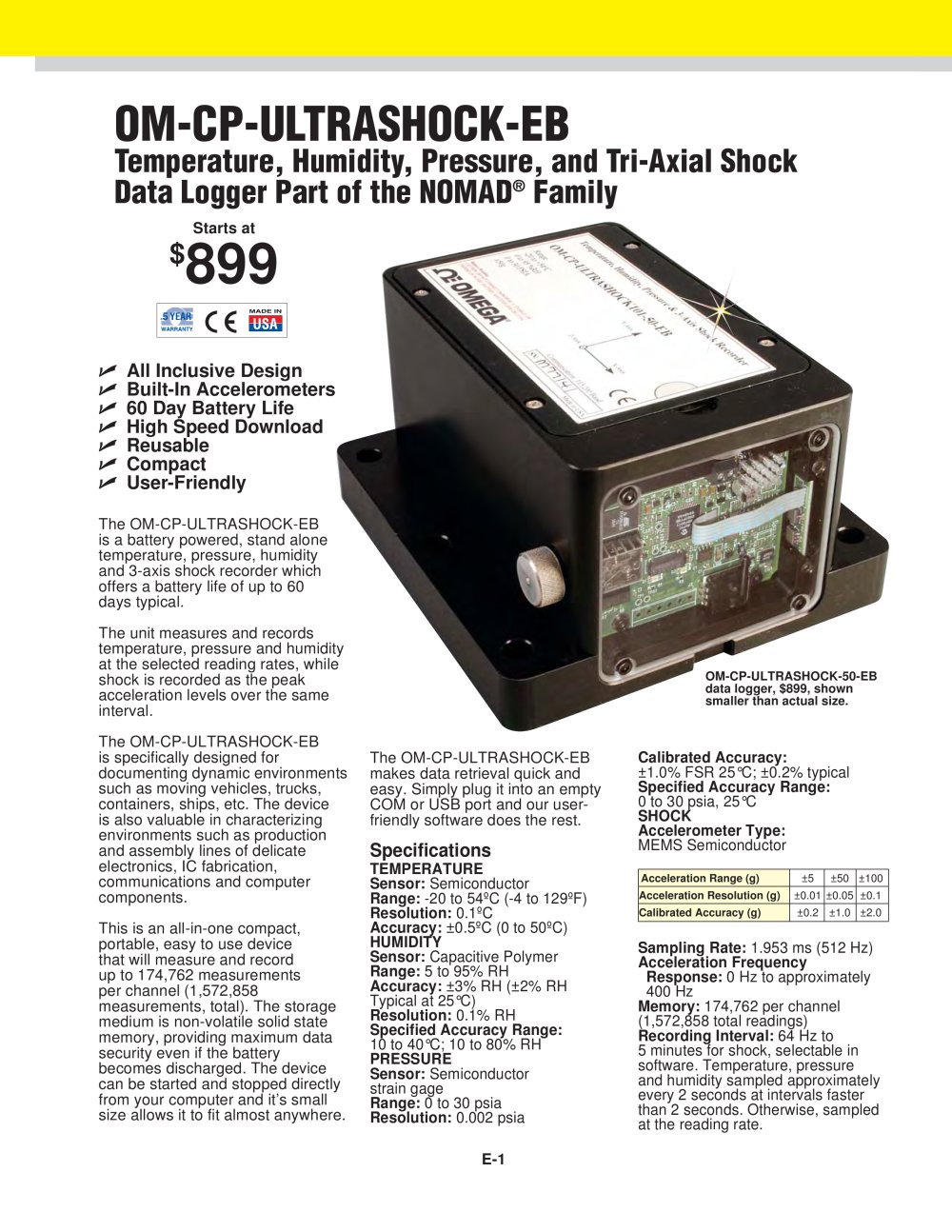

OM-CP-ULTRASHOCK-EB
Temperature, Humidity, Pressure, and Tri-Axial Shock
Data Logger Part of the NOMAD® Family
All Inclusive Design
Built-In Accelerometers
60 Day Battery Life
High Speed Download
Reusable
Compact
User-Friendly
The OM-CP-ULTRASHOCK-EB
is a battery powered, stand alone
temperature, pressure, humidity
and 3-axis shock recorder which
offers a battery life of up to 60
days typical.
The unit measures and records
temperature, pressure and humidity
at the selected reading rates, while
shock is recorded as the peak
acceleration levels over the same
interval.
The OM-CP-ULTRASHOCK-EB
is specifically designed for
documenting dynamic environments
such as moving vehicles, trucks,
containers, ships, etc. The device
is also valuable in characterizing
environments such as production
and assembly lines of delicate
electronics, IC fabrication,
communications and computer
components.
This is an all-in-one compact,
portable, easy to use device
that will measure and record
up to 174,762 measurements
per channel (1,572,858
measurements, total). The storage
medium is non-volatile solid state
memory, providing maximum data
security even if the battery
becomes discharged. The device
can be started and stopped directly
from your computer and it’s small
size allows it to fit almost anywhere.
Starts at
$899
The OM-CP-ULTRASHOCK-EB
makes data retrieval quick and
easy. Simply plug it into an empty
COM or USB port and our userfriendly
software does the rest.
OM-CP-ULTRASHOCK-50-EB
data logger, $899, shown
smaller than actual size.
Specifications
TEMPERATURE
Sensor: Semiconductor
Range: -20 to 54ºC (-4 to 129ºF)
Resolution: 0.1ºC
Accuracy: ±0.5ºC (0 to 50ºC)
HUMIDITY
Sensor: Capacitive Polymer
Range: 5 to 95% RH
Accuracy: ±3% RH (±2% RH
Typical at 25°C)
Resolution: 0.1% RH
Specified Accuracy Range:
10 to 40°C; 10 to 80% RH
PRESSURE
Sensor: Semiconductor
strain gage
Range: 0 to 30 psia
Resolution: 0.002 psia
Calibrated Accuracy:
±1.0% FSR 25°C; ±0.2% typical
Specified Accuracy Range:
0 to 30 psia, 25°C
SHOCK
Accelerometer Type:
MEMS Semiconductor
Sampling Rate: 1.953 ms (512 Hz)
Acceleration Frequency
Response: 0 Hz to approximately
400 Hz
Memory: 174,762 per channel
(1,572,858 total readings)
Recording Interval: 64 Hz to
5 minutes for shock, selectable in
software. Temperature, pressure
and humidity sampled approximately
every 2 seconds at intervals faster
than 2 seconds. Otherwise, sampled
at the reading rate.
Acceleration Range (g) ±5 ±50 ±100
Acceleration Resolution (g) ±0.01 ±0.05 ±0.1
Calibrated Accuracy (g) ±0.2 ±1.0 ±2.0
