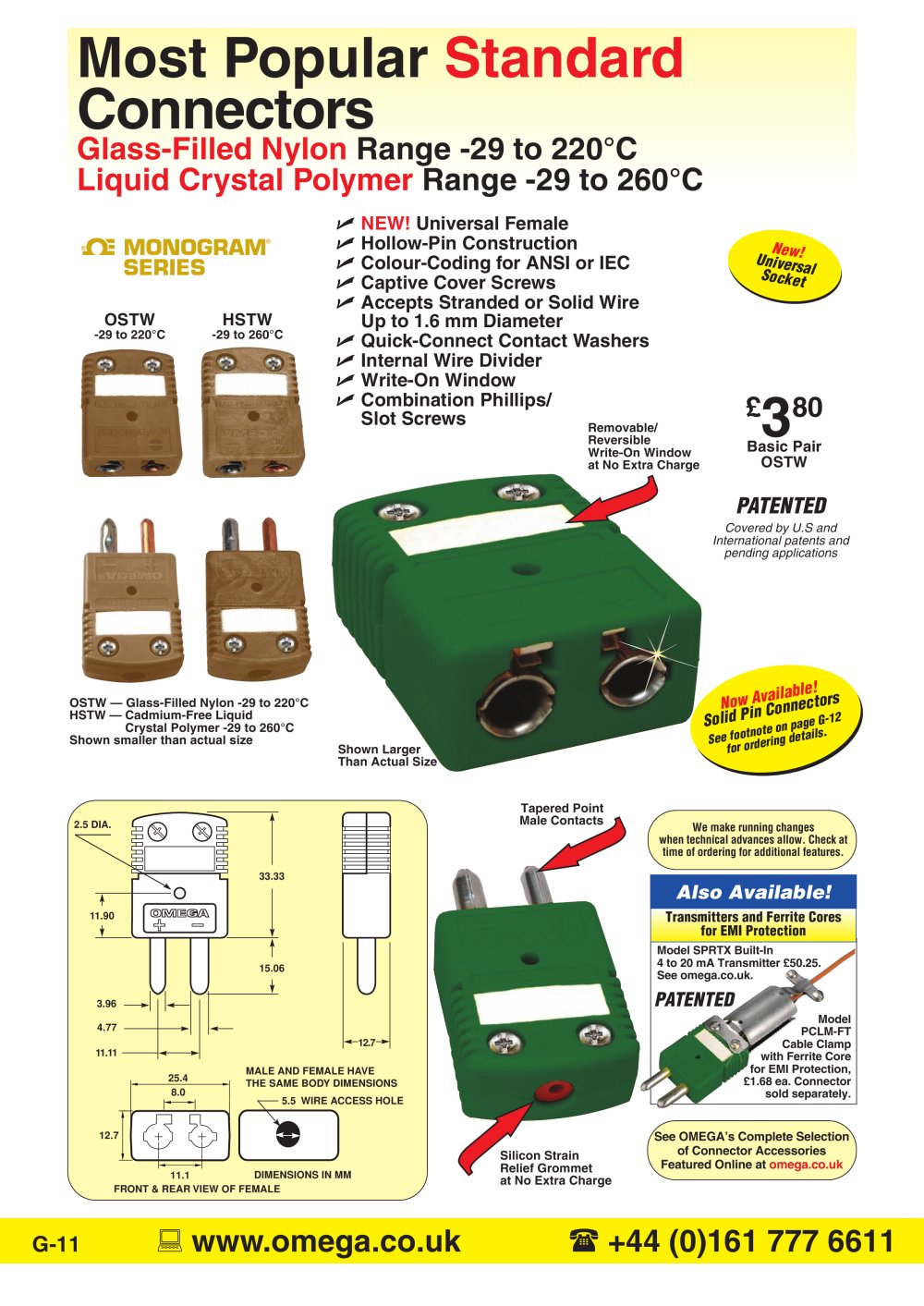

G-11 www.omega.co.uk +44 (0)161 777 6611
OSTW — Glass-Filled Nylon -29 to 220°C
HSTW — Cadmium-Free Liquid
Crystal Polymer -29 to 260°C
Shown smaller than actual size
OSTW
-29 to 220°C
HSTW
-29 to 260°C
2.5 DIA.
3.96
4.77
11.11
11.90
33.33
15.06
12.7
DIMENSIONS IN MM
FRONT & REAR VIEW OF FEMALE
MALE AND FEMALE HAVE
THE SAME BODY DIMENSIONS
8.0
25.4
11.1
12.7
5.5 WIRE ACCESS HOLE
Tapered Point
Male Contacts
NEW! Universal Female
Hollow-Pin Construction
Colour-Coding for ANSI or IEC
Captive Cover Screws
Accepts Stranded or Solid Wire
Up to 1.6 mm Diameter
Quick-Connect Contact Washers
Internal Wire Divider
Write-On Window
Combination Phillips/
Slot Screws
Shown Larger
Than Actual Size
Removable/
Reversible
Write-On Window
at No Extra Charge
Silicon Strain
Relief Grommet
at No Extra Charge
£380
Basic Pair
OSTW
Most Popular Standard
Connectors
Glass-Filled Nylon Range -29 to 220°C
Liquid Crystal Polymer Range -29 to 260°C
Transmitters and Ferrite Cores
for EMI Protection
Also Available!
Model
PCLM-FT
Cable Clamp
with Ferrite Core
for EMI Protection,
£1.68 ea. Connector
sold separately.
Model SPRTX Built-In
4 to 20 mA Transmitter £50.25.
See omega.co.uk.
PATENTED
Covered by U.S and
International patents and
pending applications
PATENTED
New!
Universal
Socket
Now Available!
Solid Pin Connectors
See footnote on page G-12
for ordering details.
We make running changes
when technical advances allow. Check at
time of ordering for additional features.
See OMEGA’s Complete Selection
of Connector Accessories
Featured Online at omega.co.uk
