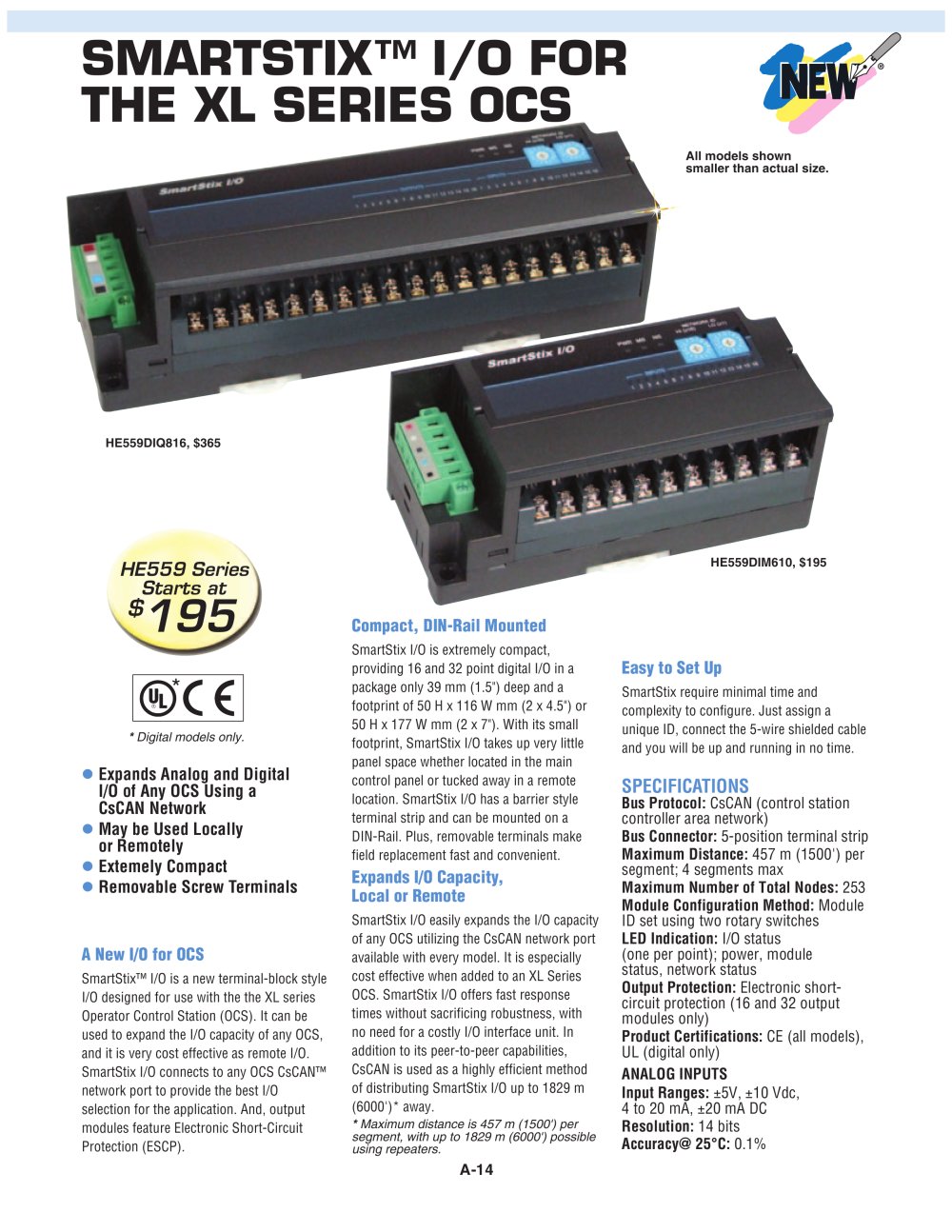

A-14 SMARTSTIX™ I/O FOR THE XL SERIES OCS HE559 Series Starts at $195 l Expands Analog and Digital I/O of Any OCS Using a CsCAN Network l May be Used Locally or Remotely l Extemely Compact l Removable Screw Terminals A New I/O for OCS SmartStix™ I/O is a new terminal-block style I/O designed for use with the the XL series Operator Control Station (OCS). It can be used to expand the I/O capacity of any OCS, and it is very cost effective as remote I/O. SmartStix I/O connects to any OCS CsCAN™ network port to provide the best I/O selection for the application. And, output modules feature Electronic Short-Circuit Protection (ESCP). Compact, DIN-Rail Mounted SmartStix I/O is extremely compact, providing 16 and 32 point digital I/O in a package only 39 mm (1.5") deep and a footprint of 50 H x 116 W mm (2 x 4.5") or 50 H x 177 W mm (2 x 7"). With its small footprint, SmartStix I/O takes up very little panel space whether located in the main control panel or tucked away in a remote location. SmartStix I/O has a barrier style terminal strip and can be mounted on a DIN-Rail. Plus, removable terminals make field replacement fast and convenient. Expands I/O Capacity, Local or Remote SmartStix I/O easily expands the I/O capacity of any OCS utilizing the CsCAN network port available with every model. It is especially cost effective when added to an XL Series OCS. SmartStix I/O offers fast response times without sacrificing robustness, with no need for a costly I/O interface unit. In addition to its peer-to-peer capabilities, CsCAN is used as a highly efficient method of distributing SmartStix I/O up to 1829 m (6000')* away. * Maximum distance is 457 m (1500') per segment, with up to 1829 m (6000') possible using repeaters. Easy to Set Up SmartStix require minimal time and complexity to configure. Just assign a unique ID, connect the 5-wire shielded cable and you will be up and running in no time. SPECIFICATIONS Bus Protocol: CsCAN (control station controller area network) Bus Connector: 5-position terminal strip Maximum Distance: 457 m (1500') per segment; 4 segments max Maximum Number of Total Nodes: 253 Module Configuration Method: Module ID set using two rotary switches LED Indication: I/O status (one per point); power, module status, network status Output Protection: Electronic shortcircuit protection (16 and 32 output modules only) Product Certifications: CE (all models), UL (digital only) ANALOG INPUTS Input Ranges: ±5V, ±10 Vdc, 4 to 20 mA, ±20 mA DC Resolution: 14 bits Accuracy@ 25°C: 0.1% HE559DIQ816, $365 All models shown smaller than actual size. HE559DIM610, $195 * * Digital models only.
