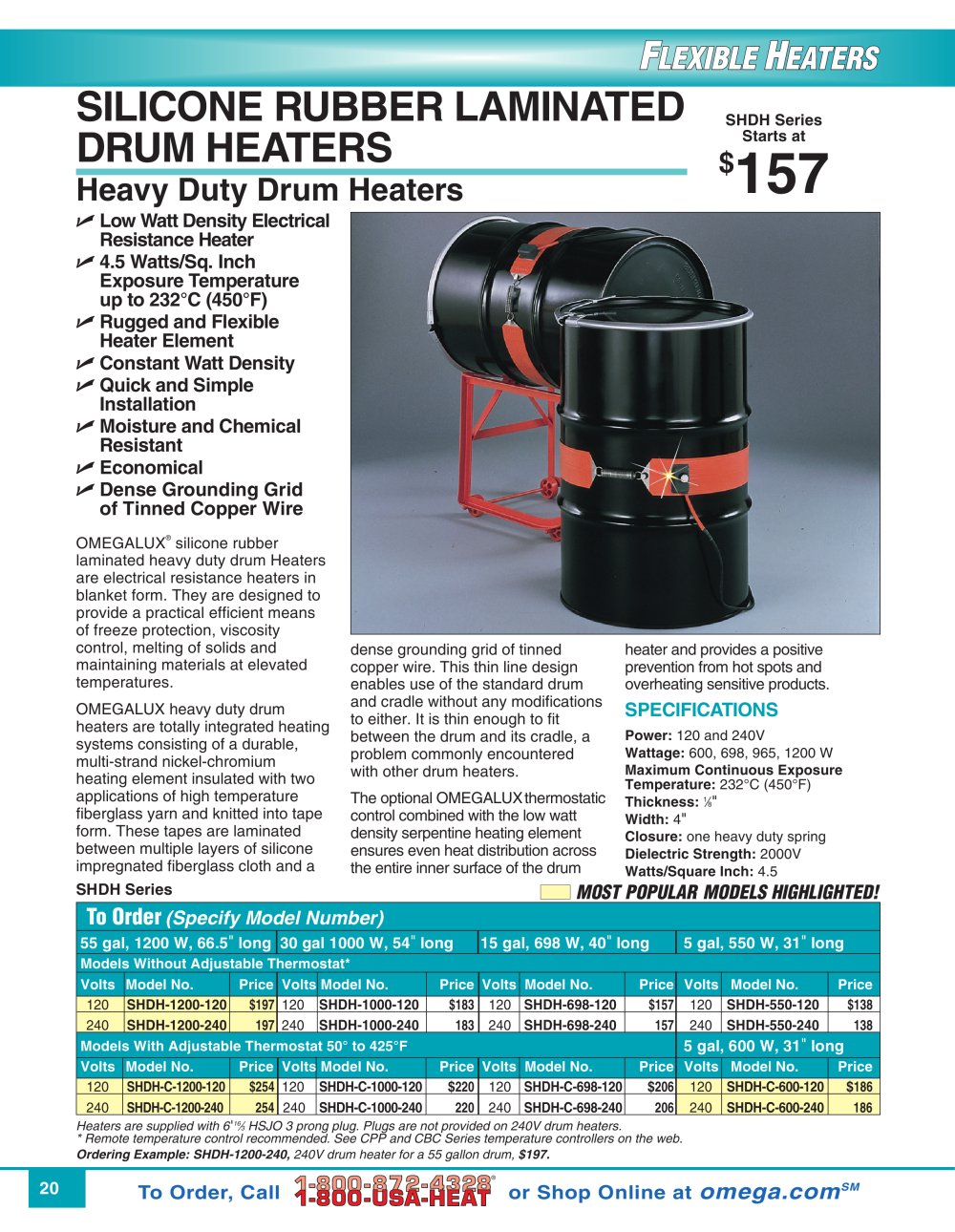

Silicone Rubber Laminated Drum Heaters SHDH and SSDH Series - OMEGA - #1

Text version of the page

20 To Order, Call or Shop Online at omega.comSM ®
Low Watt Density Electrical Resistance Heater
4.5 Watts/Sq. Inch Exposure Temperature up to 232°C (450°F)
Rugged and Flexible Heater Element
Constant Watt Density
Quick and Simple Installation
Moisture and Chemical Resistant
Economical
Dense Grounding Grid of Tinned Copper Wire OMEGALUX® silicone rubber laminated heavy duty drum Heaters are electrical resistance heaters in blanket form. They are designed to provide a practical efficient means of freeze protection, viscosity control, melting of solids and maintaining materials at elevated temperatures. OMEGALUX heavy duty drum heaters are totally integrated heating systems consisting of a durable, multi-strand nickel-chromium heating element insulated with two applications of high temperature fiberglass yarn and knitted into tape form. These tapes are laminated between multiple layers of silicone impregnated fiberglass cloth and a dense grounding grid of tinned copper wire. This thin line design enables use of the standard drum and cradle without any modifications to either. It is thin enough to fit between the drum and its cradle, a problem commonly encountered with other drum heaters. The optional OMEGALUXthermostatic control combined with the low watt density serpentine heating element ensures even heat distribution across the entire inner surface of the drum SILICONE RUBBER LAMINATED DRUM HEATERS Heavy Duty Drum Heaters To Order (Specify Model Number) 55 gal, 1200 W, 66.5" long 30 gal 1000 W, 54" long 15 gal, 698 W, 40" long 5 gal, 550 W, 31" long Models Without Adjustable Thermostat* Volts Model No. Price Volts Model No. Price Volts Model No. Price Volts Model No. Price 120 SHDH-1200-120 $197 120 SHDH-1000-120 $183 120 SHDH-698-120 $157 120 SHDH-550-120 $138 240 SHDH-1200-240 197 240 SHDH-1000-240 183 240 SHDH-698-240 157 240 SHDH-550-240 138 Models With Adjustable Thermostat 50° to 425°F 5 gal, 600 W, 31" long Volts Model No. Price Volts Model No. Price Volts Model No. Price Volts Model No. Price 120 SHDH-C-1200-120 $254 120 SHDH-C-1000-120 $220 120 SHDH-C-698-120 $206 120 SHDH-C-600-120 $186 240 SHDH-C-1200-240 254 240 SHDH-C-1000-240 220 240 SHDH-C-698-240 206 240 SHDH-C-600-240 186 SHDH Series Heaters are supplied with 6 '163 HSJO 3 prong plug. Plugs are not provided on 240V drum heaters. * Remote temperature control recommended. See CPP and CBC Series temperature controllers on the web. Ordering Example: SHDH-1200-240, 240V drum heater for a 55 gallon drum, $197. heater and provides a positive prevention from hot spots and overheating sensitive products. SPECIFICATIONS Power: 120 and 240V Wattage: 600, 698, 965, 1200 W Maximum Continuous Exposure Temperature: 232°C (450°F) Thickness: 18" Width: 4" Closure: one heavy duty spring Dielectric Strength: 2000V Watts/Square Inch: 4.5 MOST POPULAR MODELS HIGHLIGHTED! SHDH Series Starts at $157
