Self-Adhesive Silicone Patch Thermocouples SA2 Series - 3 Pages

  1. P. 1

  2. P. 2

  3. P. 3

Catalogue excerpts

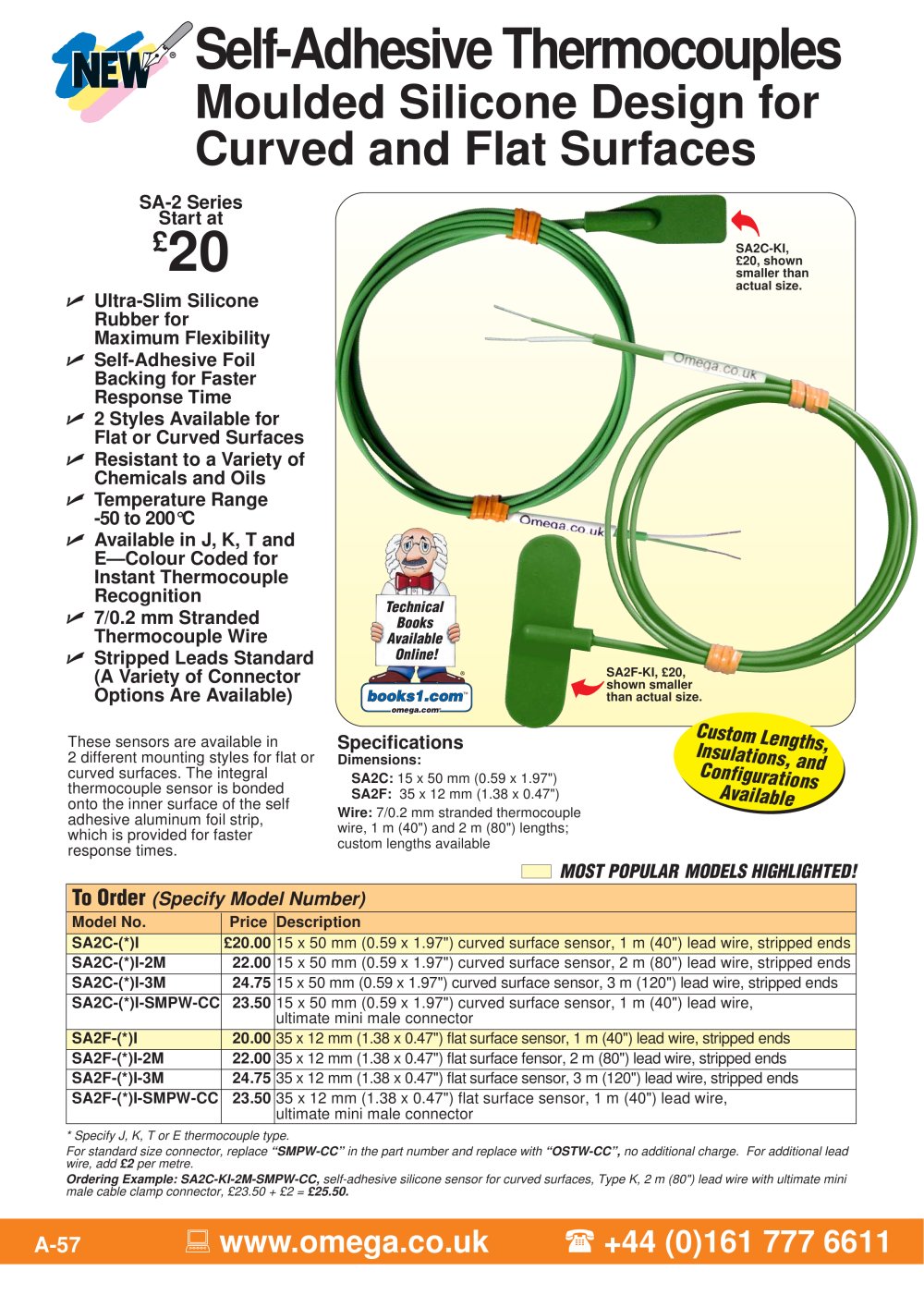

A-57 www.omega.co.uk +44 (0)161 777 6611 Self-Adhesive Thermocouples Moulded Silicone Design for Curved and Flat Surfaces Ultra-Slim Silicone Rubber for Maximum Flexibility Self-Adhesive Foil Backing for Faster Response Time 2 Styles Available for Flat or Curved Surfaces Resistant to a Variety of Chemicals and Oils Temperature Range -50 to 200°C Available in J, K, T and E—Colour Coded for Instant Thermocouple Recognition 7/0.2 mm Stranded Thermocouple Wire Stripped Leads Standard (A Variety of Connector Options Are Available) SA-2 Series Start at £20 * Specify J, K, T or E thermocouple type. For standard size connector, replace “SMPW-CC” in the part number and replace with “OSTW-CC”, no additional charge. For additional lead wire, add £2 per metre. Ordering Example: SA2C-KI-2M-SMPW-CC, self-adhesive silicone sensor for curved surfaces, Type K, 2 m (80") lead wire with ultimate mini male cable clamp connector, £23.50 + £2 = £25.50. To Order (Specify Model Number) Model No. Price Description SA2C-(*)I £20.00 15 x 50 mm (0.59 x 1.97") curved surface sensor, 1 m (40") lead wire, stripped ends SA2C-(*)I-2M 22.00 15 x 50 mm (0.59 x 1.97") curved surface sensor, 2 m (80") lead wire, stripped ends SA2C-(*)I-3M 24.75 15 x 50 mm (0.59 x 1.97") curved surface sensor, 3 m (120") lead wire, stripped ends SA2C-(*)I-SMPW-CC 23.50 15 x 50 mm (0.59 x 1.97") curved surface sensor, 1 m (40") lead wire, ultimate mini male connector SA2F-(*)I 20.00 35 x 12 mm (1.38 x 0.47") flat surface sensor, 1 m (40") lead wire, stripped ends SA2F-(*)I-2M 22.00 35 x 12 mm (1.38 x 0.47") flat surface fensor, 2 m (80") lead wire, stripped ends SA2F-(*)I-3M 24.75 35 x 12 mm (1.38 x 0.47") flat surface sensor, 3 m (120") lead wire, stripped ends SA2F-(*)I-SMPW-CC 23.50 35 x 12 mm (1.38 x 0.47") flat surface sensor, 1 m (40") lead wire, ultimate mini male connector MOST POPULAR MODELS HIGHLIGHTED! These sensors are available in 2 different mounting styles for flat or curved surfaces. The integral thermocouple sensor is bonded onto the inner surface of the self adhesive aluminum foil strip, which is provided for faster response times. SA2C-KI, £20, shown smaller than actual size. Specifications Dimensions: SA2C: 15 x 50 mm (0.59 x 1.97") SA2F: 35 x 12 mm (1.38 x 0.47") Wire: 7/0.2 mm stranded thermocouple wire, 1 m (40") and 2 m (80") lengths; custom lengths available SA2F-KI, £20, shown smaller than actual size. Custom Lengths, Insulations, and Configurations Available

 Open the catalogue to page 1

Miniature Thermocouple Plug SMPW-M (Add £3.50) (e.g., SA2C-KI-SMPW-M) Termination options are available for easy operation in conjunction with OMEGA handheld thermometers or other instruments: Crimped Ferrules CF (Add £3.50) (e.g., SA2C-KI-CF) 4 to 20 Milliamp Transmitter STCTX (Add £55) (e.g., SA2C-KI-STCTX-K1) Twisted/Shielded Thermocouple Wire (e.g., TT-KI-24S-TWSH-10M, £28) iDRX/iDRN DIN Rail Mount Signal Conditioners with Analogue, RS232 or RS485 Output, £161 see page N-5 UWTC-1 Wireless Thermocouple Transmitter, £84 see page N-1 DPi32, £101 see page M-11 DP41-B 6-Digit Panel Meter with High...

 Open the catalogue to page 2

Freephone 0800 488 488 | International +44(0) 161 777 6622 | Fax +44(0) 161 777 6622 | Sales@omega.co.uk www.omega.co.uk More than 100,000 Products Available! CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. omega.co.uk Manchester, England 0800-488-488 GERMANY www.omega.de Deckenpfronn, Germany 0800-8266342 FRANCE www.omega.fr 088-466-342 BENELUX www.omega.nl 0800-099-33-44 UNITED STATES www.omega.com 1-800-TC-OMEGA Stamford, CT. CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic 596-311-899 Temperature Calibrators, Connectors, General Test and Measurement Instruments,...

 Open the catalogue to page 3
