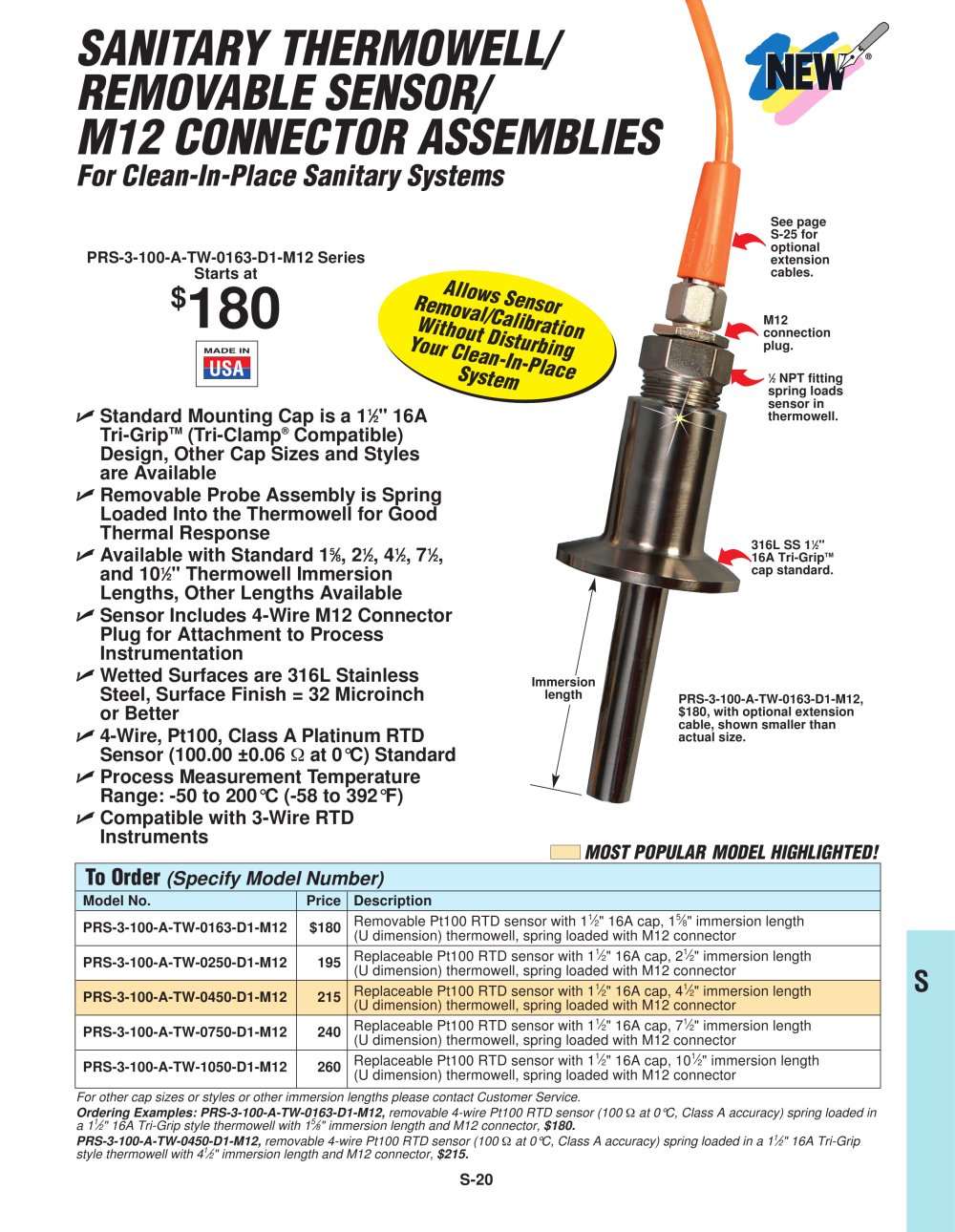

SANITARY THERMOWELL/ REMOVABLE SENSOR/ M12 CONNECTOR ASSEMBLIES For Clean-In-Place Sanitary Systems S-20 S For other cap sizes or styles or other immersion lengths please contact Customer Service. Ordering Examples: PRS-3-100-A-TW-0163-D1-M12, removable 4-wire Pt100 RTD sensor (100 Ù at 0°C, Class A accuracy) spring loaded in a 112" 16A Tri-Grip style thermowell with 158" immersion length and M12 connector, $180. PRS-3-100-A-TW-0450-D1-M12, removable 4-wire Pt100 RTD sensor (100 Ù at 0°C, Class A accuracy) spring loaded in a 112" 16A Tri-Grip style thermowell with 412" immersion length and M12 connector, $215. PRS-3-100-A-TW-0163-D1-M12 Series Starts at $180  Standard Mounting Cap is a 112" 16A Tri-GripTM (Tri-Clamp® Compatible) Design, Other Cap Sizes and Styles are Available  Removable Probe Assembly is Spring Loaded Into the Thermowell for Good Thermal Response  Available with Standard 158, 212, 412, 712, and 1012" Thermowell Immersion Lengths, Other Lengths Available  Sensor Includes 4-Wire M12 Connector Plug for Attachment to Process Instrumentation  Wetted Surfaces are 316L Stainless Steel, Surface Finish = 32 Microinch or Better  4-Wire, Pt100, Class A Platinum RTD Sensor (100.00 ±0.06 Ù at 0°C) Standard  Process Measurement Temperature Range: -50 to 200°C (-58 to 392°F)  Compatible with 3-Wire RTD Instruments To Order (Specify Model Number) Model No. Price Description PRS-3-100-A-TW-0163-D1-M12 $180 Removable Pt100 RTD sensor with 112" 16A cap, 158" immersion length (U dimension) thermowell, spring loaded with M12 connector PRS-3-100-A-TW-0250-D1-M12 195 Replaceable Pt100 RTD sensor with 112" 16A cap, 212" immersion length (U dimension) thermowell, spring loaded with M12 connector PRS-3-100-A-TW-0450-D1-M12 215 Replaceable Pt100 RTD sensor with 112" 16A cap, 412" immersion length (U dimension) thermowell, spring loaded with M12 connector PRS-3-100-A-TW-0750-D1-M12 240 Replaceable Pt100 RTD sensor with 112" 16A cap, 712" immersion length (U dimension) thermowell, spring loaded with M12 connector PRS-3-100-A-TW-1050-D1-M12 260 Replaceable Pt100 RTD sensor with 112" 16A cap, 1012" immersion length (U dimension) thermowell, spring loaded with M12 connector MOST POPULAR MODEL HIGHLIGHTED! PRS-3-100-A-TW-0163-D1-M12, $180, with optional extension cable, shown smaller than actual size. Allows Sensor Removal/Calibration Without Disturbing Your Clean-In-Place System 12 NPT fitting spring loads sensor in thermowell. M12 connection plug. See page S-25 for optional extension cables. Immersion length 316L SS 112" 16A Tri-GripTM cap standard.
