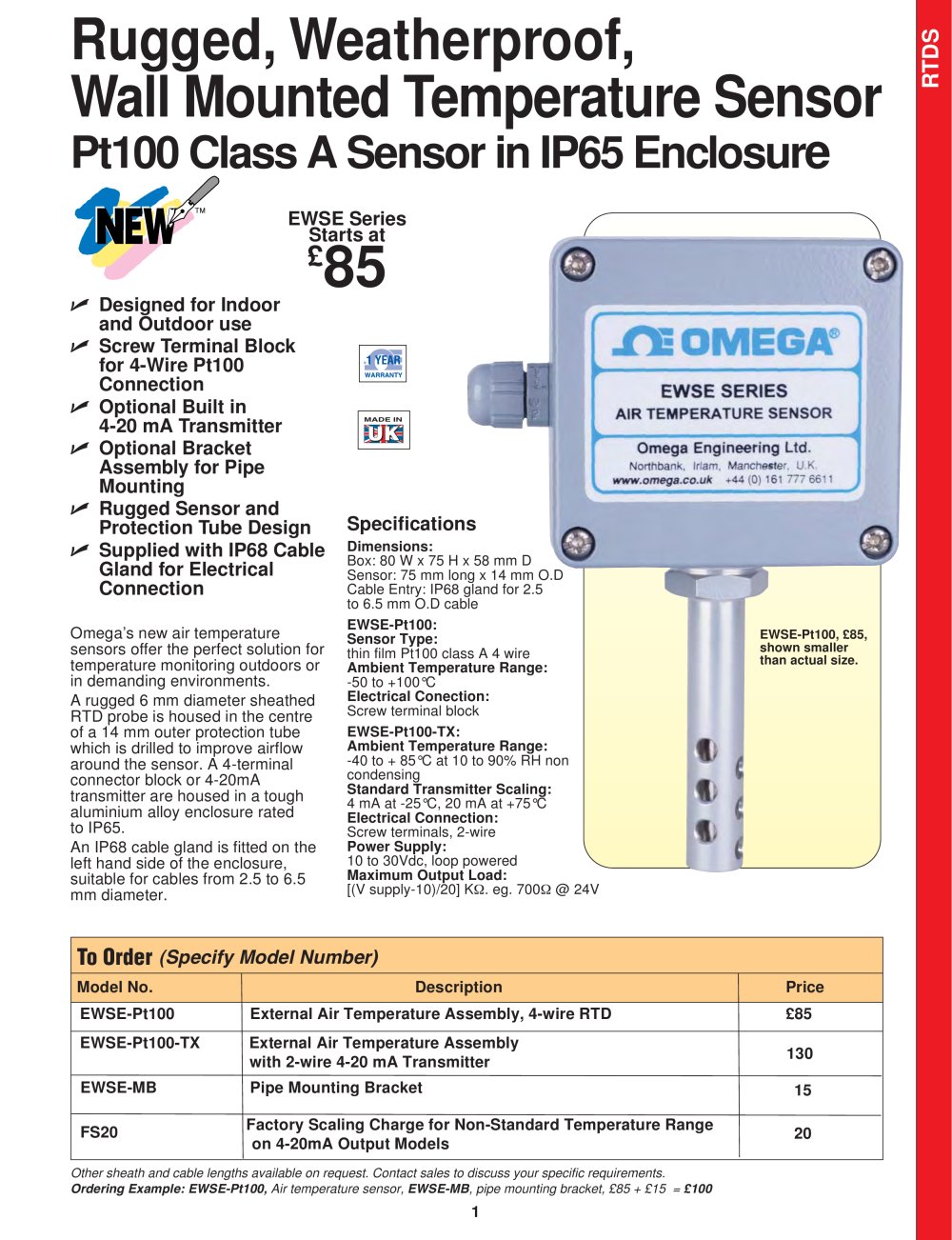

1 Rugged, Weatherproof, Wall Mounted Temperature Sensor Pt100 Class A Sensor in IP65 Enclosure  Designed for Indoor and Outdoor use  Screw Terminal Block for 4-Wire Pt100 Connection  Optional Built in 4-20 mA Transmitter  Optional Bracket Assembly for Pipe Mounting  Rugged Sensor and Protection Tube Design  Supplied with IP68 Cable Gland for Electrical Connection Other sheath and cable lengths available on request. Contact sales to discuss your specific requirements. Ordering Example: EWSE-Pt100, Air temperature sensor, EWSE-MB, pipe mounting bracket, £85 + £15 = £100 Specifications Dimensions: Box: 80 W x 75 H x 58 mm D Sensor: 75 mm long x 14 mm O.D Cable Entry: IP68 gland for 2.5 to 6.5 mm O.D cable EWSE-Pt100: Sensor Type: thin film Pt100 class A 4 wire Ambient Temperature Range: -50 to +100°C Electrical Conection: Screw terminal block EWSE-Pt100-TX: Ambient Temperature Range: -40 to + 85°C at 10 to 90% RH non condensing Standard Transmitter Scaling: 4 mA at -25°C, 20 mA at +75°C Electrical Connection: Screw terminals, 2-wire Power Supply: 10 to 30Vdc, loop powered Maximum Output Load: [(V supply-10)/20] KÙ. eg. 700Ù @ 24V EWSE Series Starts at £85 Omega’s new air temperature sensors offer the perfect solution for temperature monitoring outdoors or in demanding environments. A rugged 6 mm diameter sheathed RTD probe is housed in the centre of a 14 mm outer protection tube which is drilled to improve airflow around the sensor. A 4-terminal connector block or 4-20mA transmitter are housed in a tough aluminium alloy enclosure rated to IP65. An IP68 cable gland is fitted on the left hand side of the enclosure, suitable for cables from 2.5 to 6.5 mm diameter. To Order (Specify Model Number) Model No. Description Price EWSE-Pt100 External Air Temperature Assembly, 4-wire RTD £85 EWSE-Pt100-TX External Air Temperature Assembly with 2-wire 4-20 mA Transmitter EWSE-MB Pipe Mounting Bracket UK EWSE-Pt100, £85, shown smaller than actual size. RTDS FS20 15 Factory Scaling Charge for Non-Standard Temperature Range 20 on 4-20mA Output Models 130
